Navigation Map. If the maximum range for obstacle display on the Navigation Map is adjusted to below 20
nm, the highest obstacle display range settings on the other applicable maps are also adjusted proportionally.
Customizing terrain and obstacle display on the Navigation Map Page:
1) Select the Navigation Map Page.
2) Press the MENU Key.
3) With ‘Map Setup’ highlighted, press the ENT Key (Figure 6-28).
4) Turn the small FMS Knob to select the ‘Map’ Group and press the ENT Key (Figure 6-29).
5) Turn the large FMS Knob or press the ENT Key to scroll through product selections (Figure 6-30).
• TERRAIN DATA – Turns the display of terrain data on or off and sets maximum range at which terrain is shown
• OBSTACLE DATA – Turns the display of obstacle data on or off and sets maximum range at which obstacles are shown
6) Turn the small FMS Knob to scroll through options for each product (ON/OFF, range settings).
7) Press the ENT Key to select an option.
8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings.

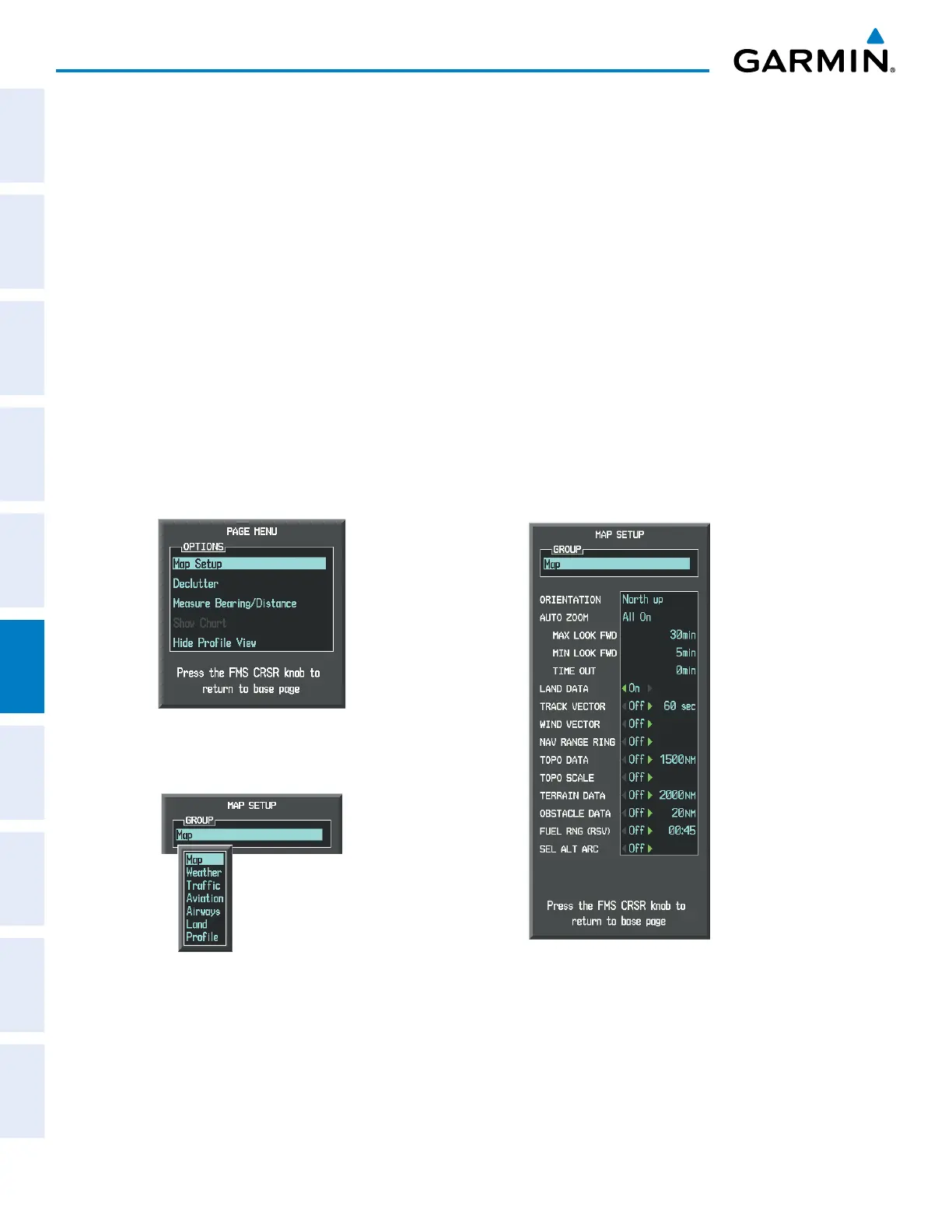

Figure 6-29 Navigation Map Page Setup Menu
Figure 6-28 Navigation Map Page Menu
Figure 6-30 Navigation Map Page Setup Menu, Map Group
Additional information about obstacles can be displayed by panning over the display on the map. The map
panning feature is enabled by pressing the Joystick. The map range is adjusted by turning the Joystick. If the
map range is adjusted while panning is enabled, the map is re-centered on the Map Pointer.
