Showing/hiding aviation information on the Terrain-SVS Page:
1) Press the MENU Key.
2) Select ‘Show Aviation Data’ or ‘Hide Aviation Data’ (choice dependent on current state) and press the ENT Key.

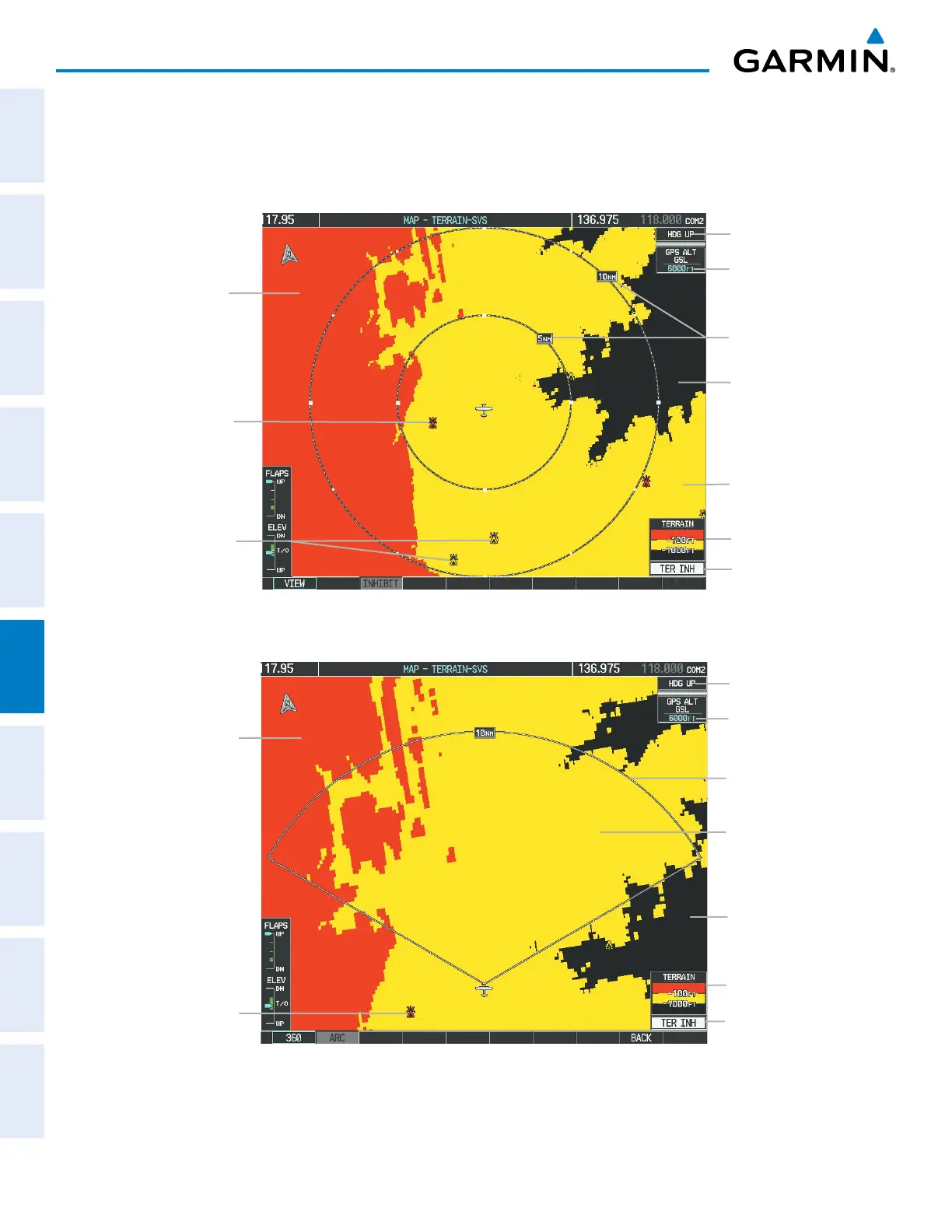

Figure 6-42 Terrain-SVS Page
Yellow Terrain
(Between 100’
and 1000’ Below
the Aircraft
Altitude)
Terrain Legend
Map Range Rings
Map Orientation
Current Aircraft
GPS-derived GSL
Altitude
Red Terrain
(Above or Within
100’ Below the
Aircraft Altitude)
Black Terrain
(More than 1000’
Below the Aircraft
Altitude)
Red Lighted Obstacle
(Above or Within
100’ Below Aircraft
Altitude)
Yellow Lighted Obstacles
(Between 100’ and 1000’
Below Aircraft Altitude)
Annunciation
Window
Figure 6-43 Terrain-SVS Page (ARC View)
Yellow Terrain
(Between 100’ and
1000’ Below the
Aircraft Altitude)
Red Terrain
(Above or Within
100’ Below the
Aircraft Altitude)
Black Terrain
(Terrain More
than 1000’ Below
the Aircraft
Altitude)
Map Range Arc
Terrain Legend
Map Orientation
Current Aircraft
GPS-derived GSL
Altitude
Red Lighted Obstacle
(Above or Within
100’ Below Aircraft
Altitude)
Annunciation
Window
