Customizing traffic display on the Navigation Map Page:
1) Select the Navigation Map Page.
2) Press the MENU Key.
3) With ‘Map Setup’ highlighted, press the ENT Key (Figure 6-66).
4) Turn the small FMS Knob to select the ‘Traffic’ Group and press the ENT Key (Figure 6-67).
5) Turn the large FMS Knob or press the ENT Key to scroll through product selections (Figure 6-68).
• TRAFFIC – Turns the display of traffic data on or off
• TRAFFIC MODE – Selects the traffic mode for display; select from:
- All Traffic - Displays all traffic
- TA ONLY - Displays Traffic Alerts only
• TRAFFIC SMBL – Selects the maximum range at which traffic symbols are shown
• TRAFFIC LBL – Selects the maximum range at which traffic labels are shown (with the option to turn off)
6) Turn the small FMS Knob to scroll through options for each product (ON/OFF, range settings, etc.).
7) Press the ENT Key to select an option.
8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings.

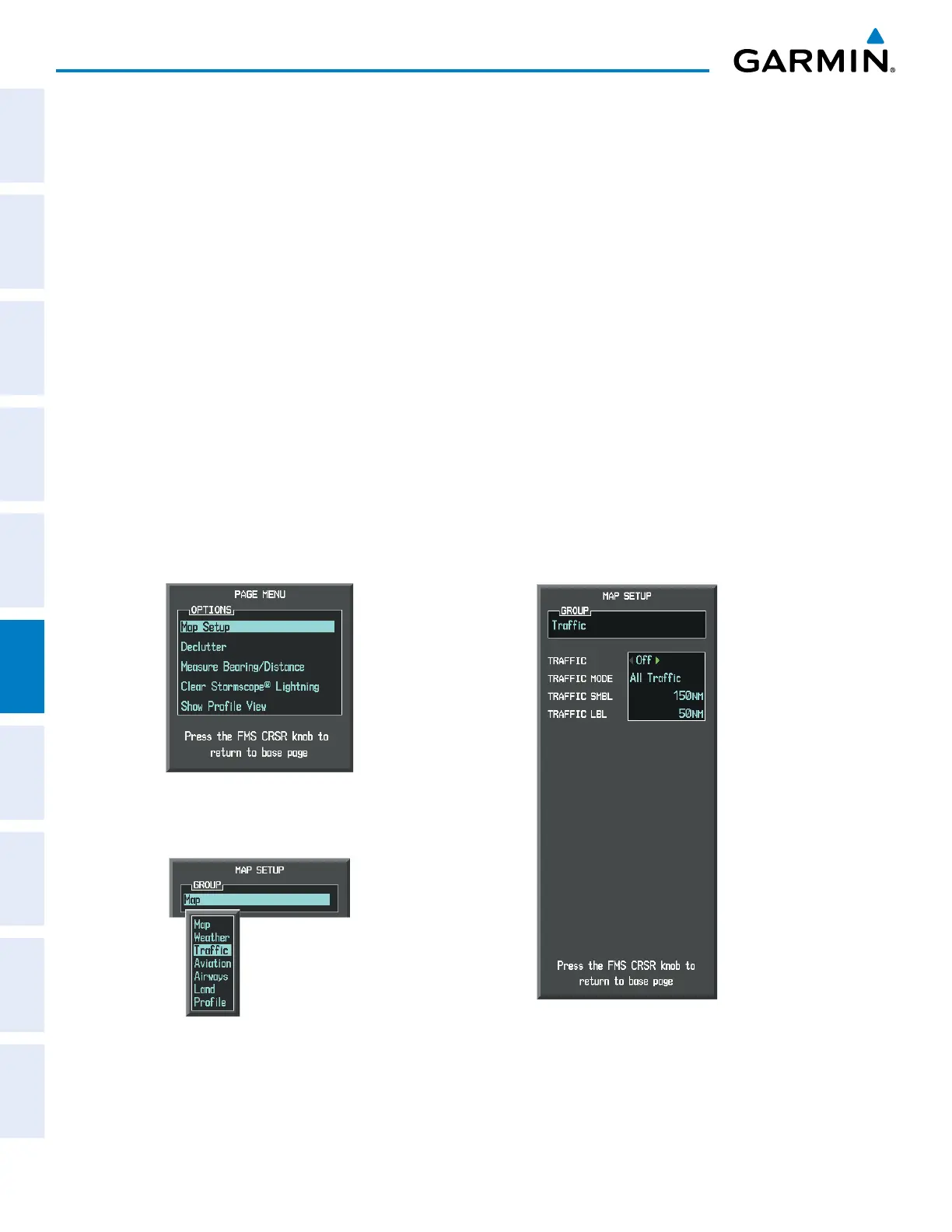

Figure 6-67 Navigation Map Page Setup Menu
Figure 6-66 Navigation Map Page Menu
Figure 6-68 Navigation Map Page Setup Menu, Traffic Group
