The following figure compares the PFD forward looking depiction with the MFD plan view and FIELD OF
VIEW turned on.

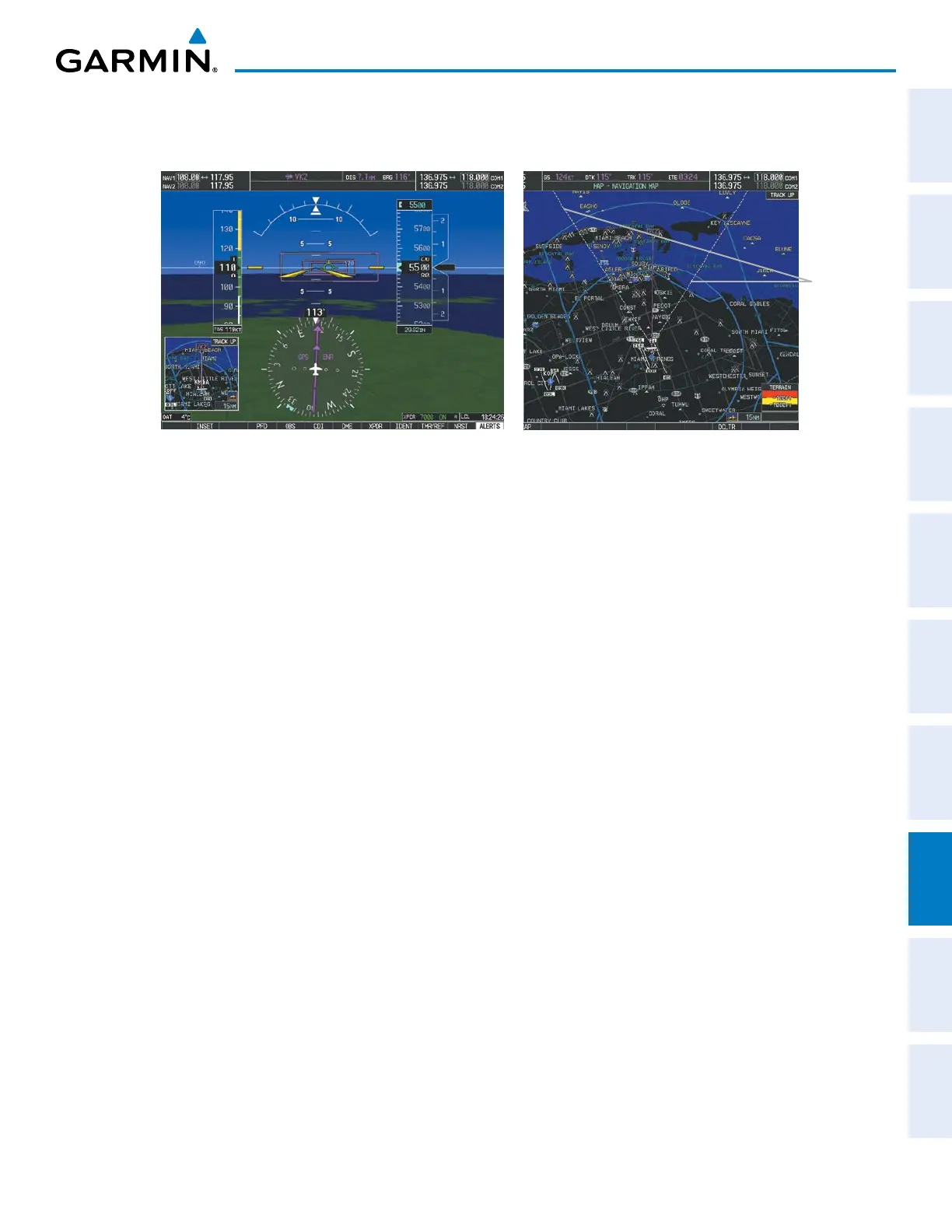

Figure 8-13 PFD and MFD Field of View Comparison
Lines
Depict
PFD Field
of View
SVT View on the PFD
Field of View on the MFD
