Changing navigation sources:
1) Select the CDI Softkey to change from GPS to VOR1 or LOC1. This places the cyan tuning box over the NAV1
standby frequency in the upper left corner of the PFD.
2) Select the CDI Softkey again to change from VOR1 or LOC1 to VOR2 or LOC2. This places the cyan tuning box
over the NAV2 standby frequency.
3) Select the CDI Softkey a third time to return to GPS.

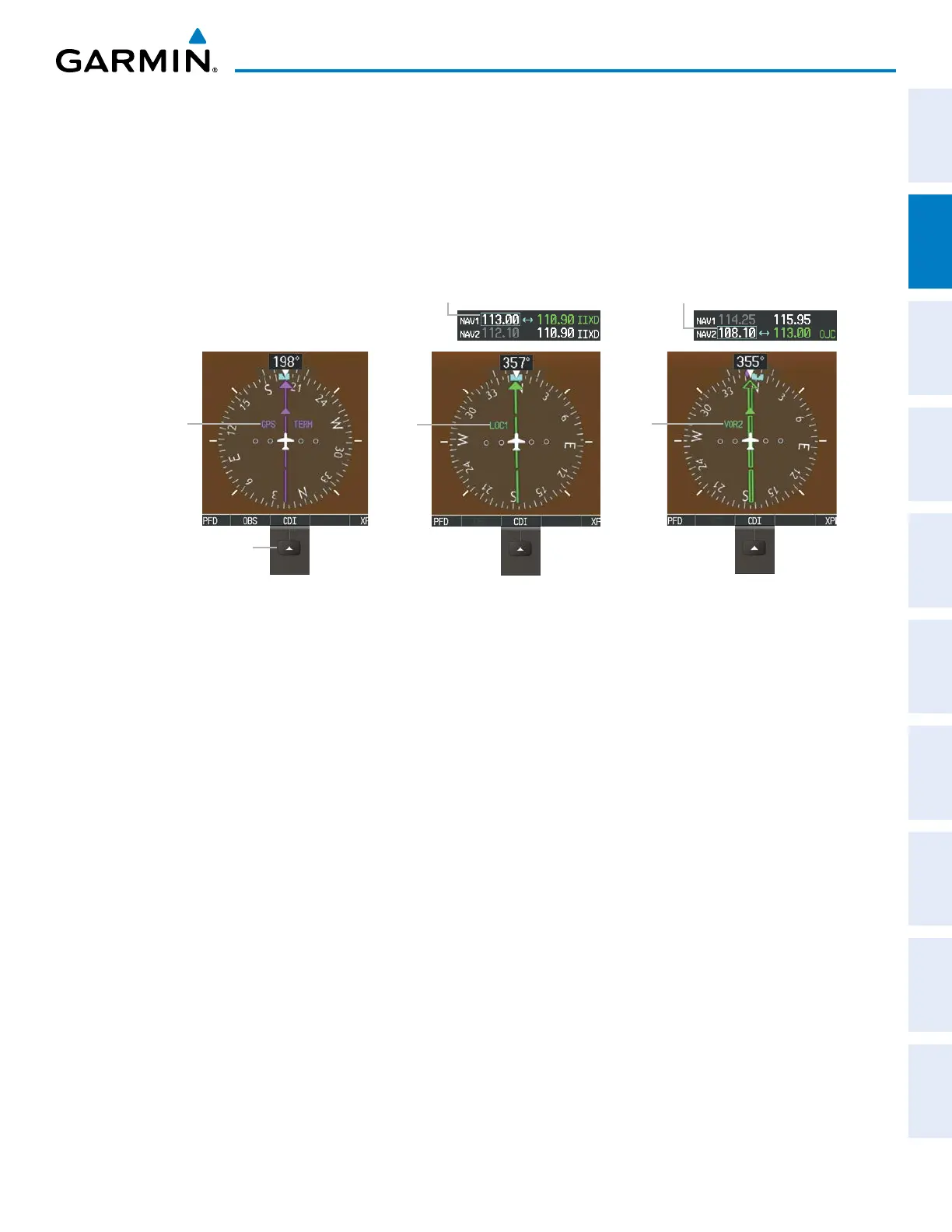

Figure 2-25 Selecting a Navigation Source
NAV1 Selected for Tuning
LOC1
Selected
LOC2
Selected
NAV2 Selected for Tuning
CDI
Softkey
Cycles Through
Navigation Sources
GPS
Selected
The system automatically switches from GPS to LOC navigation source and changes the CDI scaling accordingly
when all of the following occur:
• A localizer or ILS approach has been loaded into the active flight plan
• The final approach fix (FAF) is the active leg, the FAF is less than 15 nm away, and the aircraft is moving
toward the FAF
• A valid localizer frequency has been tuned
• The GPS CDI deviation is less than 1.2 times full-scale deflection
GPS steering guidance is still provided after the CDI automatically switches to LOC until LOC capture, up
to the Final Approach Fix (FAF) for an ILS approach, or until GPS information becomes invalid. Activating
a Vector-to-Final (VTF; see the Flight Management Section) also causes the CDI to switch to LOC navigation
source; GPS steering guidance is not provided after this switch.
