Garmin GI 275 Pilot's Guide

Garmin GI 275 Pilot's Guide 190-02246-01 Rev. L
202
Autopilot
System
Overview
Flight
InstrumentsEISNavigation
Hazard
AvoidanceAutopilotIVSI
Additional
FeaturesAppendicesIndex
6.4 GARMIN GFC 500 AUTOPILOT (OPTIONAL)
NOTE: The approved aircraft documentation always supersedes the information in
this Pilot’s Guide.
NOTE: Refer to the approved aircraft documentation for emergency procedures.
NOTE: A GMC 507 controller is required for GFC 500 AFCS functionality.
GFC 500 AFCS CONFIGURATION

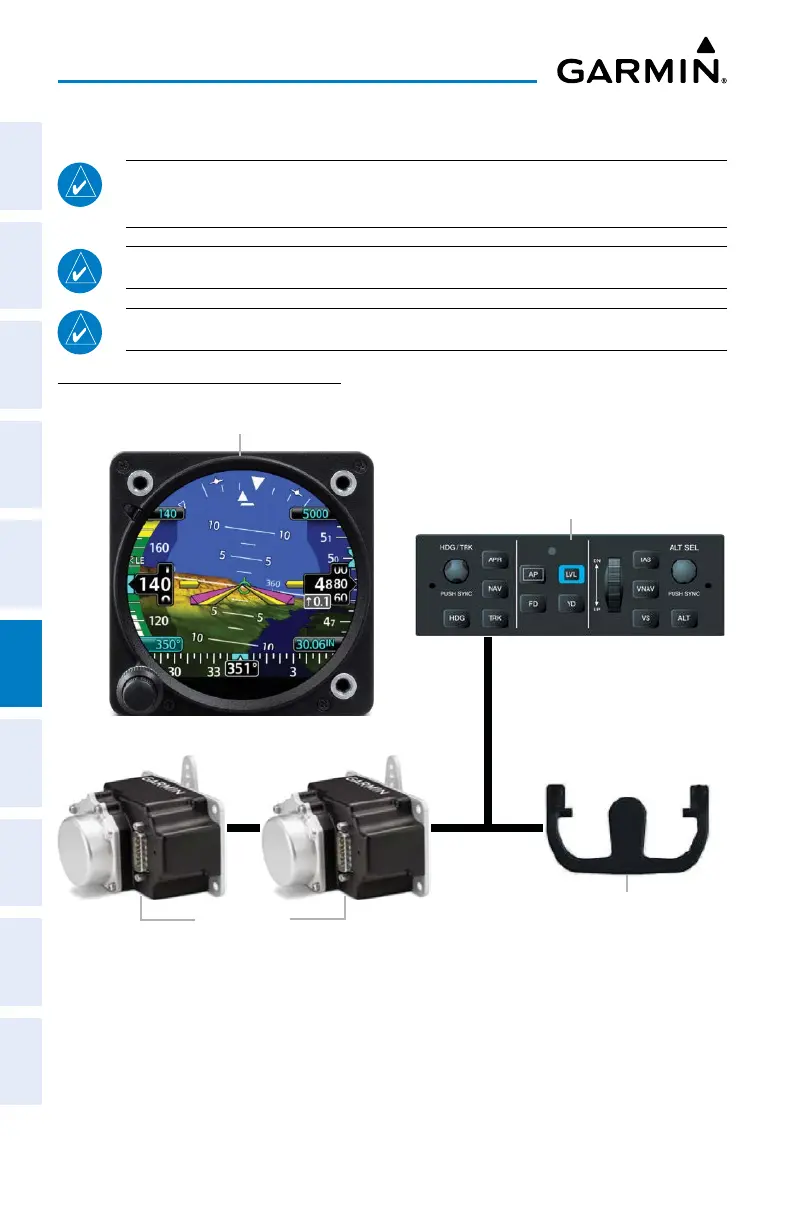

The following figure provides an overview of the GFC 500 system:
GI 275


GMC 507 Autopilot Mode Controller


GSA 28 Servos
Control Yoke
Core GFC 500 System
In addition to the core autopilot functions, the GFC 500 incorporates an independent
monitor that uses inertial sensors to determine what is happening to the aircraft. By monitoring
aircraft attitude, attitude rate and accelerations using these independent sensors, the monitor
can shut down the autopilot if it determines the aircraft has exceeded predetermined limits.

Garmin GI 275 Specifications

General

Type	Electronic Flight Instrument
Display Type	LCD
Power Input	14 or 28 VDC
Operating Temperature Range	-20°C to +55°C
Brightness Control	Automatic and Manual
Certification	TSO-C113
Interfaces	ARINC 429, RS-232
Mounting	Panel Mount
