E.1 Overview
The Advanced Configuration Type allows the configuration of the airspeed tape on the GI 275 ADI to
match any airspeed indicator. Color bands, markings, and bugs may all be individually configured. As an
additional option, Vne may be configured as Fixed or Variable with up to ten altitude and IAS level pairs
entered in Variable mode.
E.2 Configuration Page Layout
In Configuration mode, navigate to the Airspeed Configuration page (Setup → Airframe Configuration
→ Airspeed Configuration). Set the Mode to Advanced and touch the Configuration button. The
following settings may be changed in the configuration pages:
• Airspeed Tape Ranges - Set airspeed ranges and overspeed values (if Variable is selected for the
Vne/Vmo/Mmo)
• Bugs - Set bugs as required
• Markings - Set markings as required
Figure E-1 shows a summation of the configuration. Refer to the following sections for more detail.

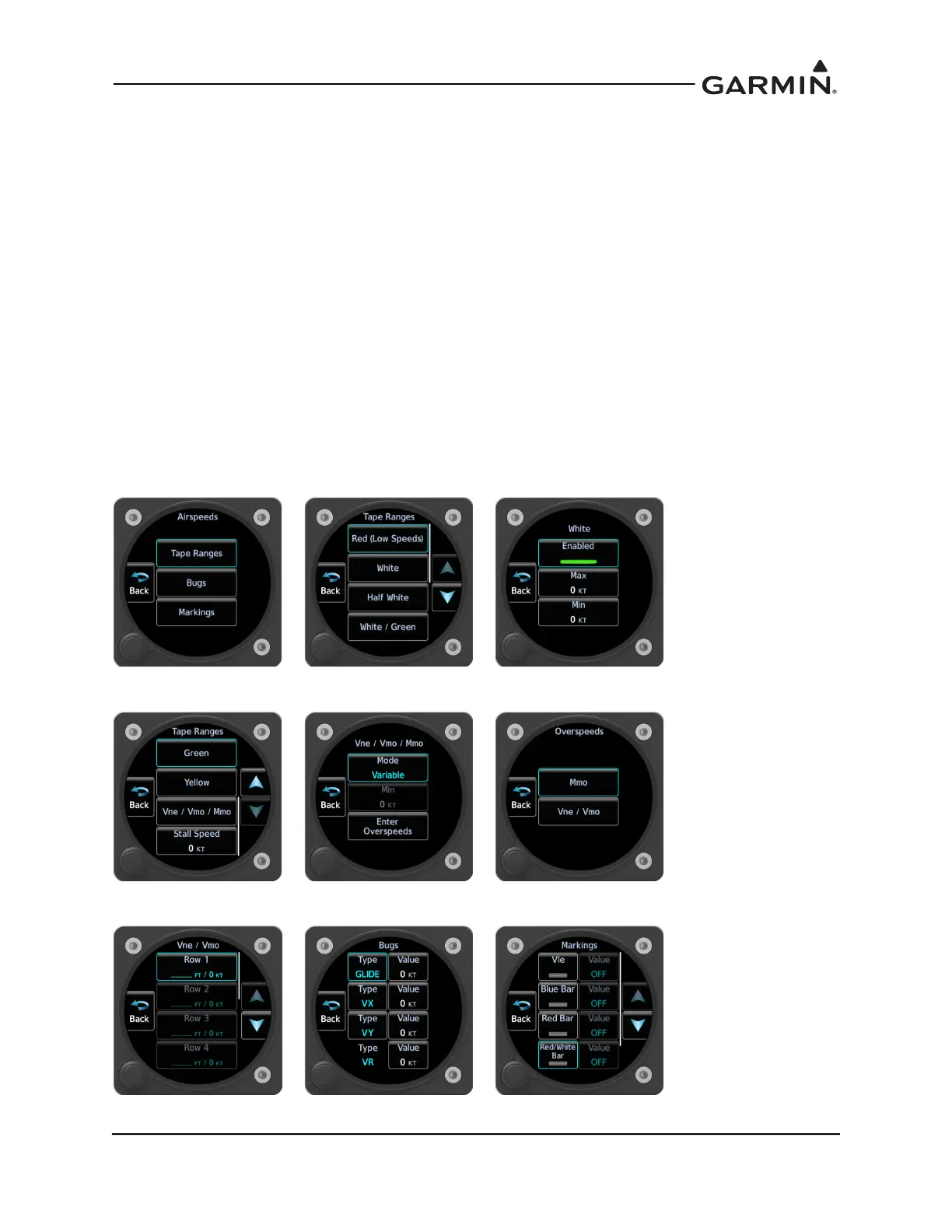

Figure E-1 Advanced Airspeed Configuration Pages
a. b. c.
d. e. f.
g. h. i.
a. Touch Tape Ranges.
b. Select an applicable
range.
c. Touch Enabled and
configure the Min and
Max per the POH.
Touch Back and
repeat for each
applicable range.
Refer to Appendix
Section E.3.
d. Scroll down and
touch Vne/Vmo/
Mmo.
e. If overspeeds are
fixed, enter Min Vne
speed. If variable, set
Mode to Variable and
select Enter
Overspeeds.
f. Select Mmo or Vne/
Vmo per the POH.
g. Configure Mmo or
Vne/Vmo. Refer to
Appendix Section E.4
h. From the Advanced
Airspeed page,
select Bugs and
configure the bugs
per the POH. Refer to
Appendix Section E.5
i. From the Advanced
Airspeed page,
select Markings and
configure the
markings per the
POH. Refer to
Appendix Section E.6
