AUDIO PANEL CONTROLS

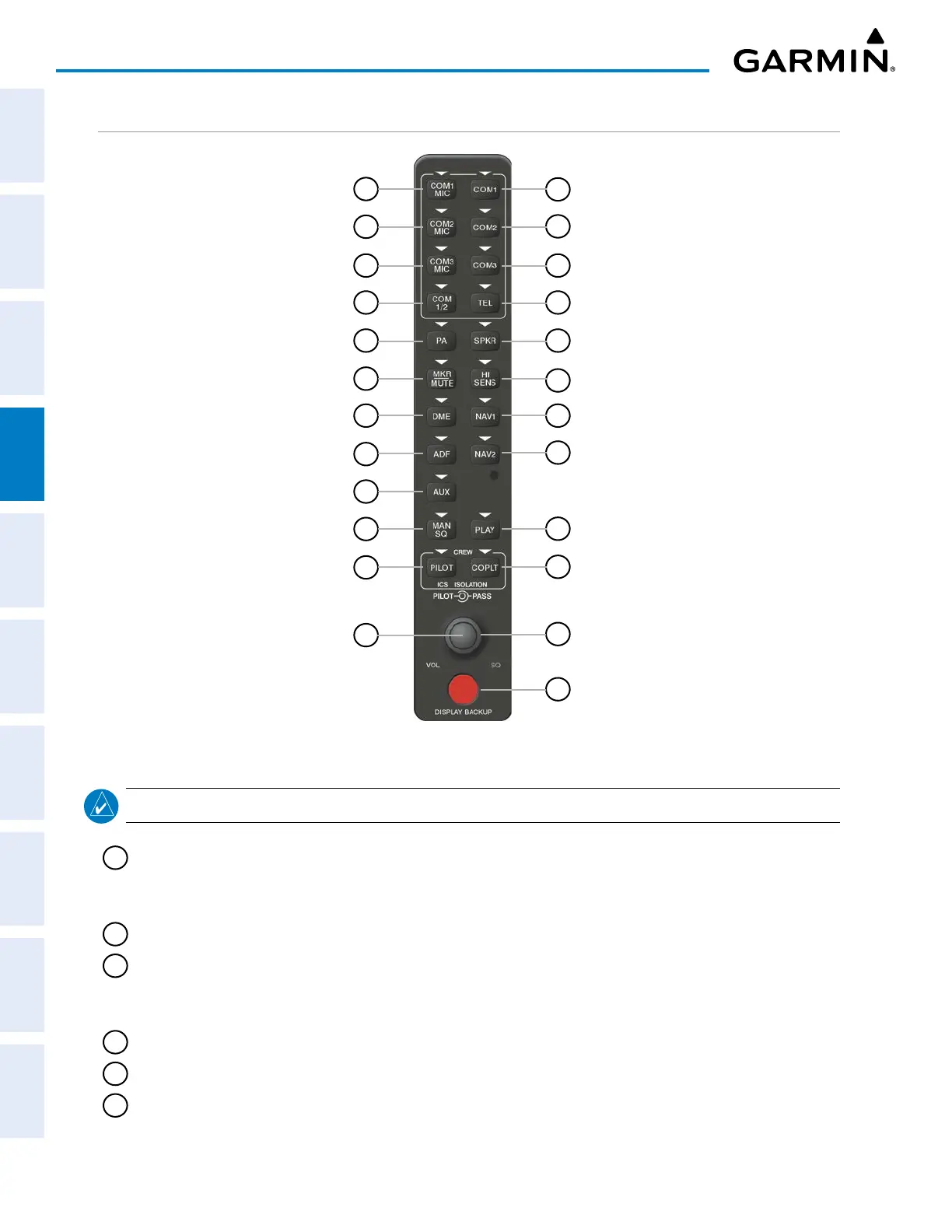

Figure 4-2 Audio Panel Controls
17
18
15
13
11
9
20
7
5
3
1
14
2
16
4
6
8
10
12
22
24
23
21
19
NOTE: When a key is selected, a triangular annunciation above the key is illuminated.
1
COM1 MIC – Selects the #1 transmitter for transmitting. COM1 receive is simultaneously selected
when this key is pressed allowing received audio from the #1 COM receiver to be heard. COM2 receive
can be added by pressing the COM2 Key.
2
COM1 – When selected, audio from the #1 COM receiver can be heard.
3
COM2 MIC – Selects the #2 transmitter for transmitting. COM2 receive is simultaneously selected
when this key is pressed allowing received audio from the #2 COM receiver to be heard. COM1 receive
can be added by pressing the COM1 Key.
4
COM2 – When selected, audio from the #2 COM receiver can be heard.
5
COM3 MIC – Not used in PA-32 aircraft.
6
COM3 – Not used in PA-32 aircraft.
