190-02692-00 Rev. A
Garmin G1000 Pilot’s Guide for the Piper PA-32 Saratoga
109
AUDIO PANEL AND CNS
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
COM TRANSCEIVER MANUAL TUNING
The COM frequency controls and frequency boxes are on the right side of the MFD and PFD.
Manually tuning a COM frequency:
1) Turn the COM Knob to tune the desired frequency in the COM Tuning Box (large knob for MHz; small knob for
kHz).
2) Press the
Frequency Transfer
Key to transfer the frequency to the active field.
3) Adjust the volume level with the COM VOL/SQ Knob.
4) Push the COM VOL/SQ Knob to turn automatic squelch on and off.
Turn the VOL/SQ Knob to adjust volume.
Push to enable/disable Automatic Squelch
Press the Frequency Transfer Key to
transfer frequencies between active
and standby Frequency Boxes
Turn the COM Knob to tune the
frequency in the Tuning Box

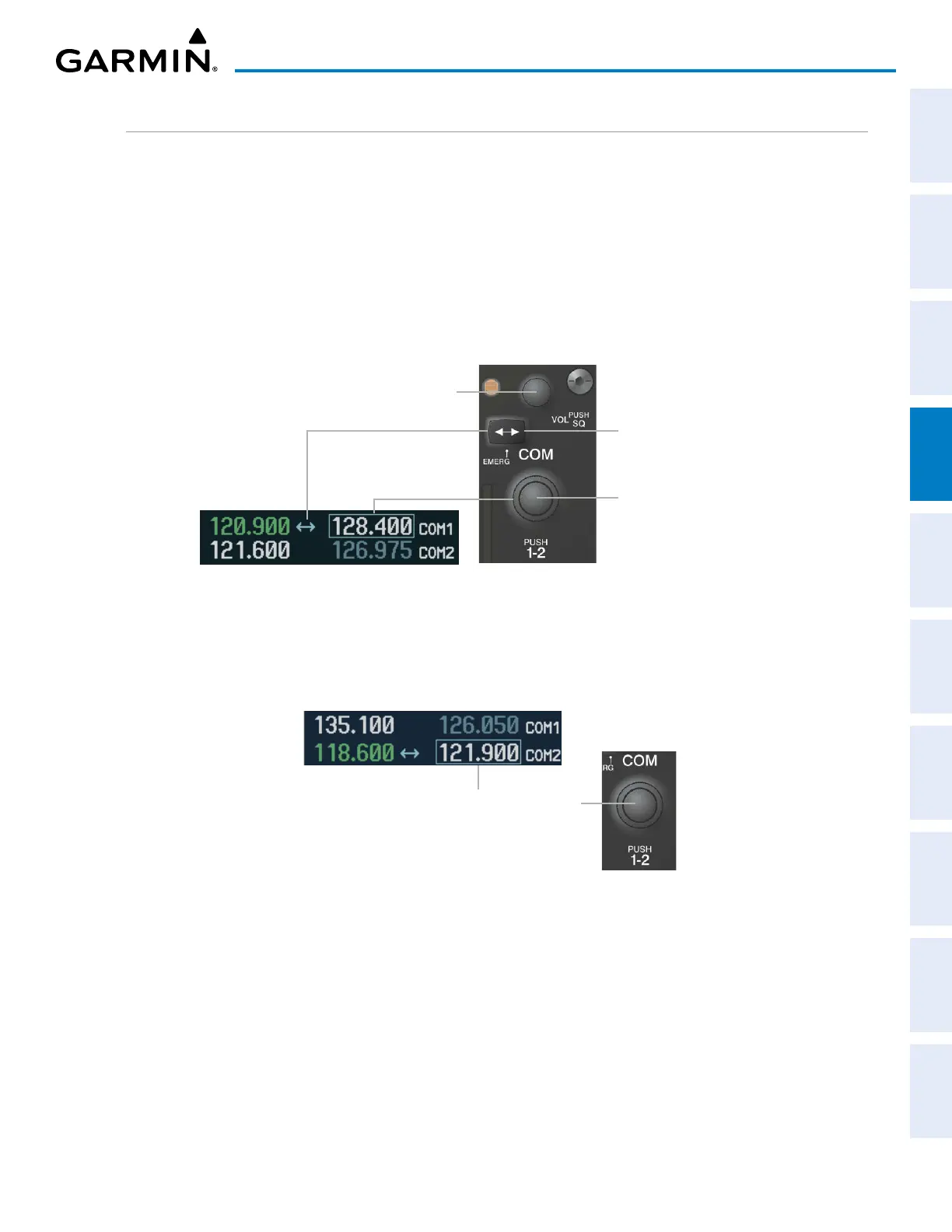

Figure 4-5 COM Frequency Tuning
SELECTING THE RADIO TO BE TUNED
Push the small COM Knob to move the Tuning Box and Frequency Transfer Arrow between the upper and
lower radio frequency fields.
Figure 4-6 Moving the COM Tuning Box
Push the COM Knob to move the
Tuning Box between COM1 and COM2
