Garmin G1000 Pilot’s Guide for the Piper PA-32 Saratoga
190-02692-00 Rev. A
330
HAZARD AVOIDANCE
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICESINDEX

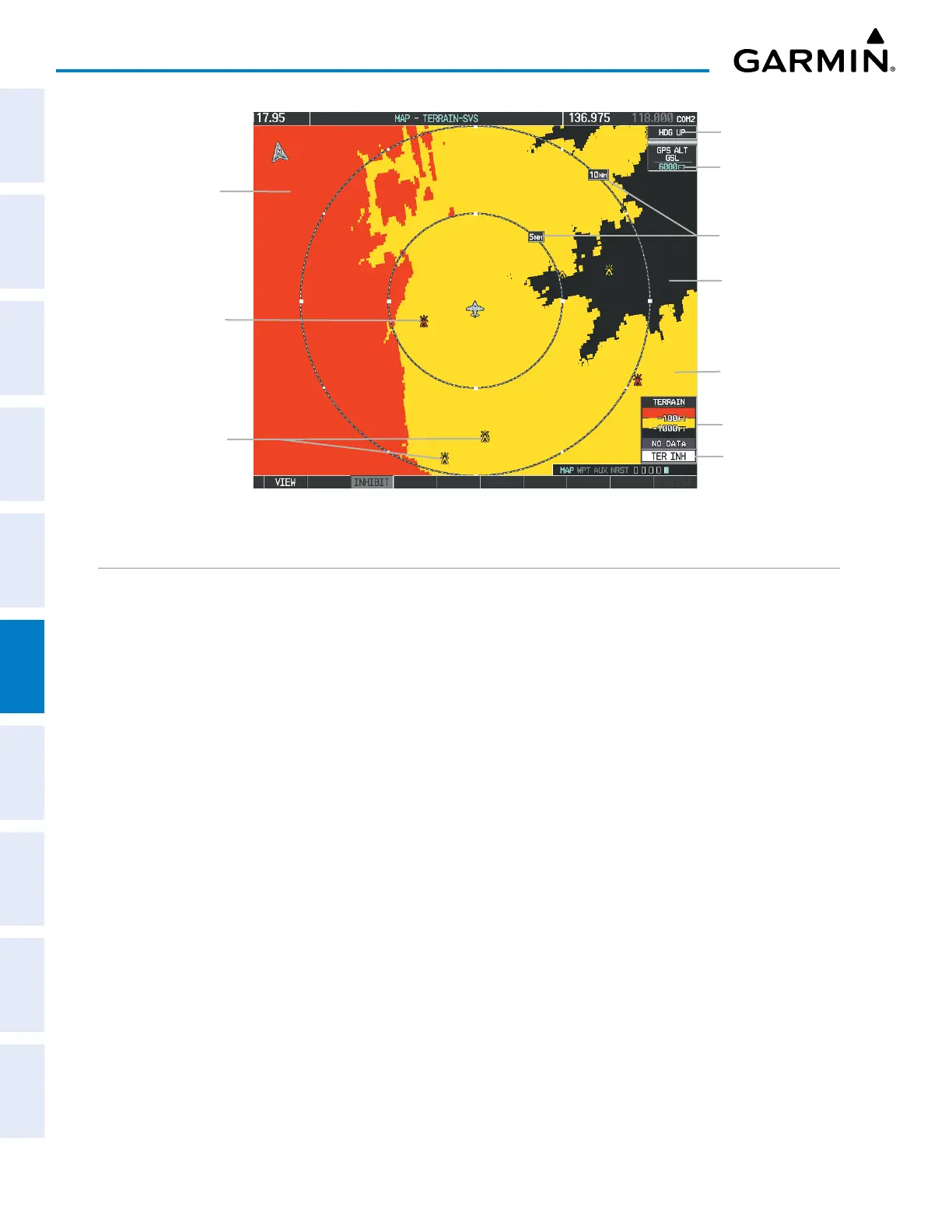

Figure 6-66 MAP - TAWS-B Page
Yellow Terrain
(Between 100’ and
1000’ Below the
Aircraft Altitude)
Terrain Legend
Map Range Rings
Map Orientation
Current Aircraft
GPS-derived GSL
Altitude
Red Terrain
(Above or Within
100’ Below the
Aircraft Altitude)
Black Terrain
(More than 1000’
Below the Aircraft
Altitude)
Red Lighted Obstacle
(Above or Within 100’
Below Aircraft Altitude)
Annunciation
Window
Yellow Lighted
Obstacles (Between
100’ and 1000’ Below
Aircraft Altitude)
TAWS-B ALERTS
Alerts are issued when flight conditions meet parameters that are set within TAWS-B software algorithms.
TAWS-B alerts typically employ a CAUTION or a WARNING alert severity level, or both. When an alert is
issued, the system provides visual annunciations and voice alerts. The following table shows TAWS-B alert
types with corresponding annunciations and voice alerts.
When an alert is issued, annunciations appear on the PFD and MFD. The TAWS-B Alert Annunciation is
shown to the upper left of the Altimeter on the PFD and below the Terrain Legend on the MFD. If the TAWS-B
Page is not displayed at the time, a pop-up alert appears on the MFD. To acknowledge the pop-up alert:
- Press the CLR Key (returns to the currently viewed page), or
- Press the ENT Key (accesses the MAP - TAWS-B Page)
