Garrett CS 5000 User Manual

CS 5000
User Manual
© 2009 GARRETT METAL DETECTORS 40 PN 1530100 REV H
11.4.2.1 
•DisconnectfromACpower;
•OpenAccessDoorofdetectionunit;
•Removethree(3)screwsthathold
controllercover;

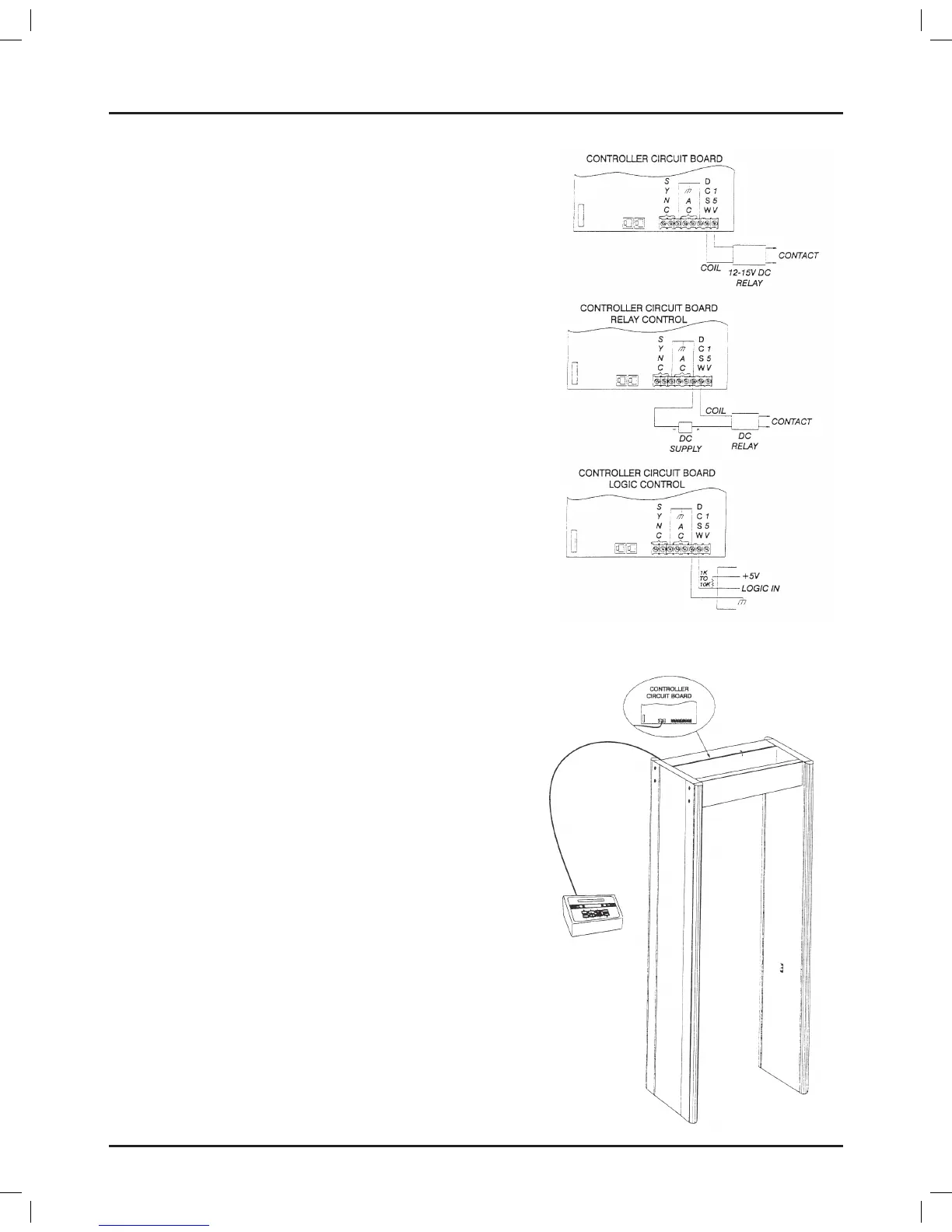

•Connecttherelayordevicetocontrol,asshown
atright;
•Replacecoverandreconnectpower.
11.4.2.2 
•DisconnectfromACpower;
•Removethree(3)screwsthathold
controllercover;
•Connecttherelayordevicetocontrol,
•Replacecoverandreconnectpower.
11.4.2.3 
•DisconnectfromACpower;
•OpenAccessDoorofdetectionunit;
•Removethree(3)screwsthathold
controllercover;
•Connecttherelayordevicetocontrol,asshown
at right.
•Replacecoverandreconnectpower.
11.5 REMOTE CONTROL (OPTIONAL)
A complete remote console with all control functions
that are available on the overhead panel is avail-
able for monitoring and controlling functions of the
Magnascanner CS 5000 from a location apart from
the archway.
This remote console is connected to the overhead
unit with telephone-type cable and RJ 45 connec-
tors which can be easily concealed behind overhead
panels or in 1/2-inch conduit. The remote control
receives its power from the main detector unit.
Pressing a touchpad on the remote console achieves
the same result as pressing the same touchpad on
the overhead panel, except for the VOLUME and
TONE adjustment.
Regulating alarm volume and tone must be done
separately at the remote console and at each unit it
controls. This enables the audio to be set separately
at the required levels for the console and archway.
A 50-foot cable is standard, but custom lengths are
available.
