Flat Antenna Kit Change Out
Parts Needed: BOM Part Number E14753-528
RF cable, SMA plug, LMR195, 3ft
Flat antenna for the CartManager
You will need:
• Wire cutter
• Wire stripper
• Cordless driver with #1 and #2 Phillips
• 1/8" screwdriver
• 5/16" wrench
• Low strength Loctite
** This kit is ONLY compatible with an E500356-043 receiver for remote**
**Caution, please disconnect power to the CartManager before working on the machine.**
Assembly steps:

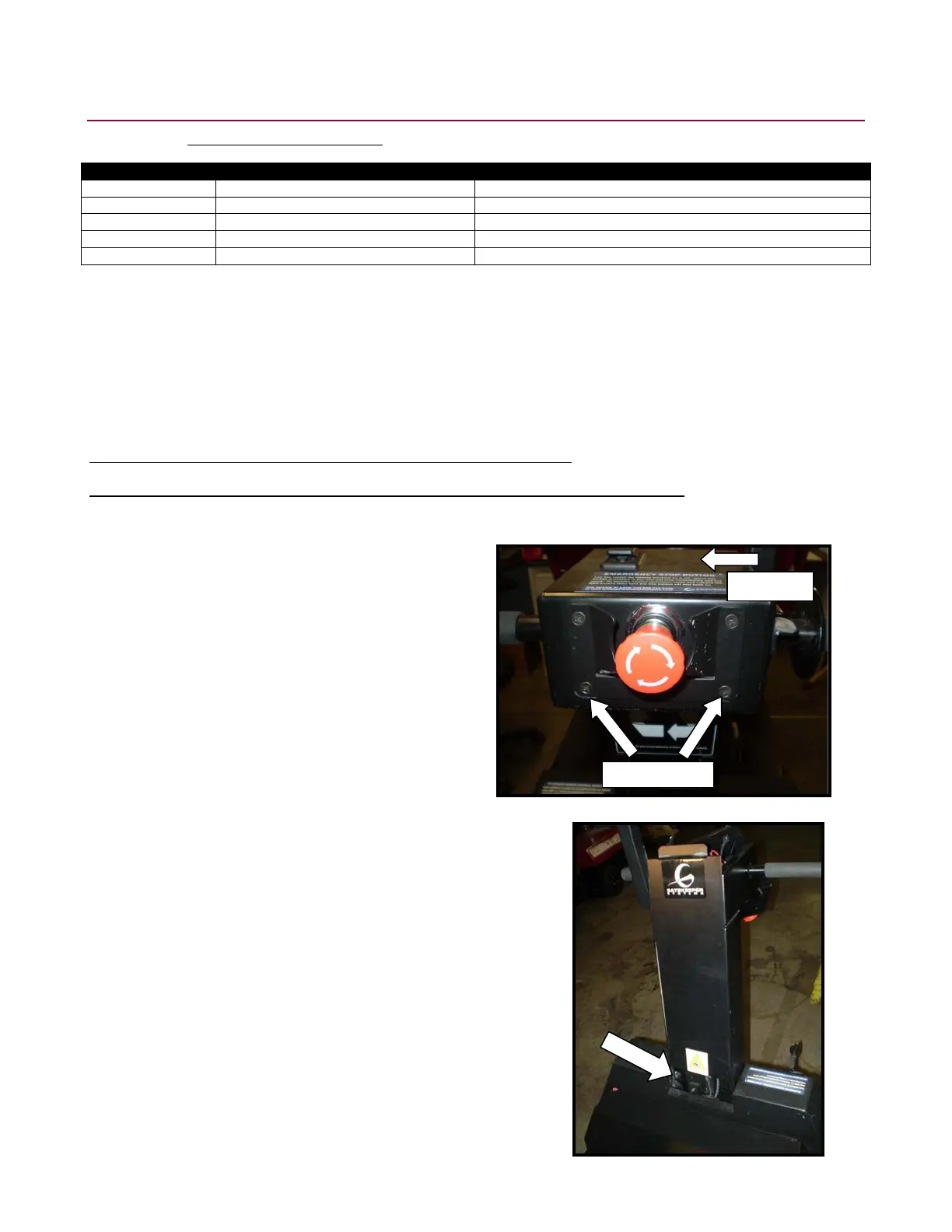

1. Using a #2 Phillips screwdriver, remove the top cover
(F14753-39) by removing the four black counter-sunk
screws from the front and back of the upper arm
cover. From the back of the cover, remove only the
two screws which are located below the red E-stop
button and two from the front.
2. Remove the stick antenna and antenna cable from the
upper arm cover and plug the hole with the plastic plug H9258.
3. Remove the lower arm cover by sliding it upward about 1 ½ " while
pushing it up and out from bottom of the cover. In order to remove
the neck cover, use a large flat head screwdriver or a tool for
leverage to pry the cover up.
