5. Remove the two washers and nut from wires (with expandable sleeve) and feed them down through the hole toward
the receiver.

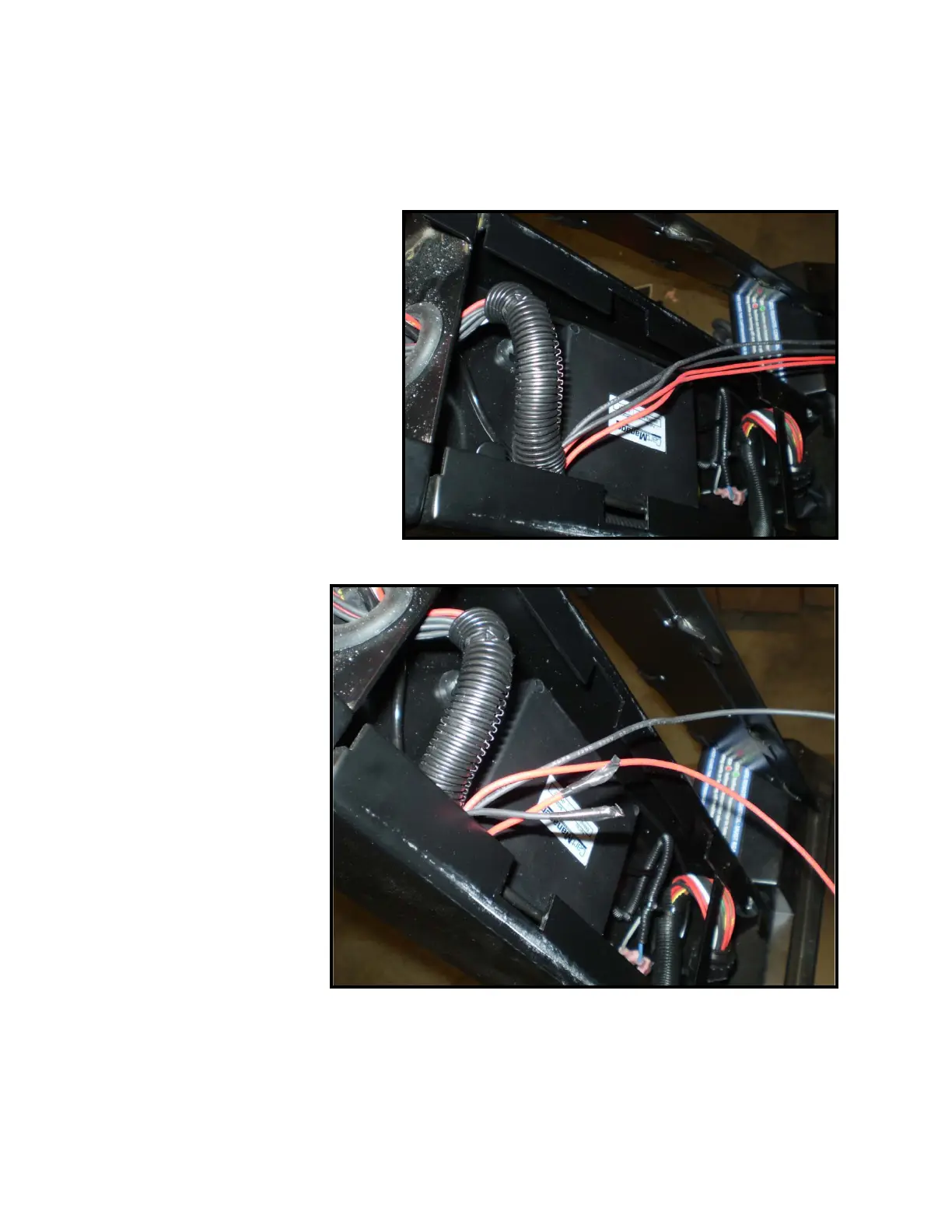

6. Remove the expandable sleeve. Now compare the length of the new light pole to the old light pole you just
removed, if it is longer pull out about 4 more inches of these wires from the corrugated loom as shown in the
picture. If the new light pole is shorter you don’t need to pull extra 4” of wire only pull it out of the corrugated loom.
**Note: This way you are extending the
length of the wires to go up the light
pole. Because the new light pole is
longer than the old light pole, you need
to lengthen wires #45 and #43.**
There is enough wire inside the loom
for this extension.
The light pole has been shortened
recently, so pull these wires only
if you have the longer light pole.
7. Cut back wires #44 and
#58 at about 21". Because
there is no brake light,
these two wires are no
longer needed. Tape the
exposed end of the wires
and push them inside the
loom. DO NOT push wires
#43 and #45 back inside
the loom.
