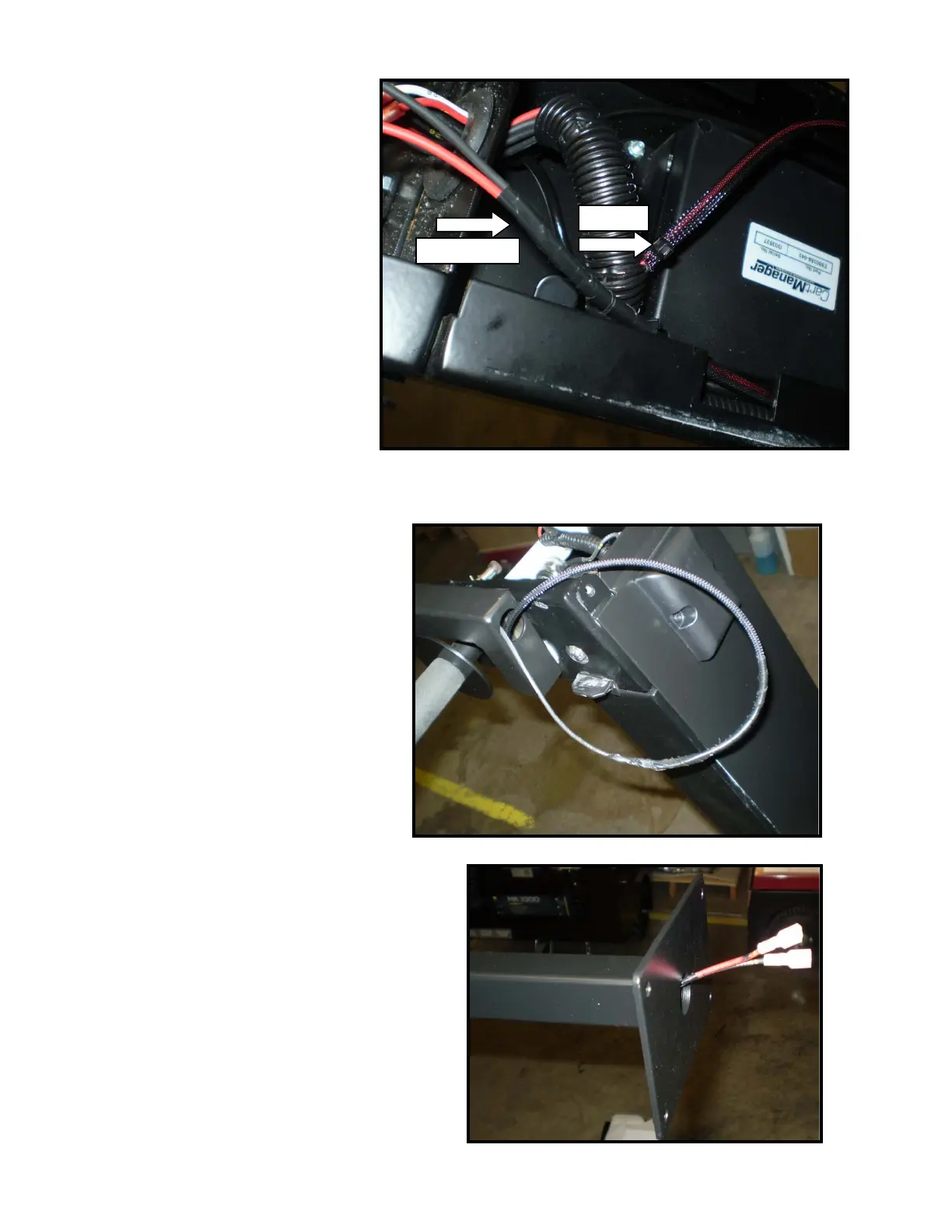

Secure the loom by cable tie.
Install 20" of expandable sleeve
over wires #43 and #45. Use a
cable tie to secure the sleeve at the
bottom and electrical tape at the
open end.
Thread back the expandable
sleeve with the wires through the
top hole back to the upper arm
cover. Slide the lower arm cover
back to its place.
8. Reinstall the light pole bushings.
9. Install the upper arm weldment. Make sure the Belleville washers make a convex shape when they come together.
10. Use a 16" fishing wire to pull the wires
with the expandable sleeve through the
light pole. First go through the horizontal
pipe part of it. Then go through the
vertical part.
There should be about 2" of wires coming out of
the top. Strip the wires and crimp two large
female connectors on them. Cover the hole at the
bottom of the light pole with the plug.
