36 Maintaining and Troubleshooting Your E-3200 System
5.
Locate an available slot, and remove the slot cover (save the cover for
reinstallation if you need to remove the card) by releasing the lock tab
(you can use a blunt tool such as a flat-head screwdriver if the tab does
not release with finger pressure). Either apply inward pressure to the
middle of the slot cover or use a flat-head screwdriver and insert it into
the tab hole.
6.

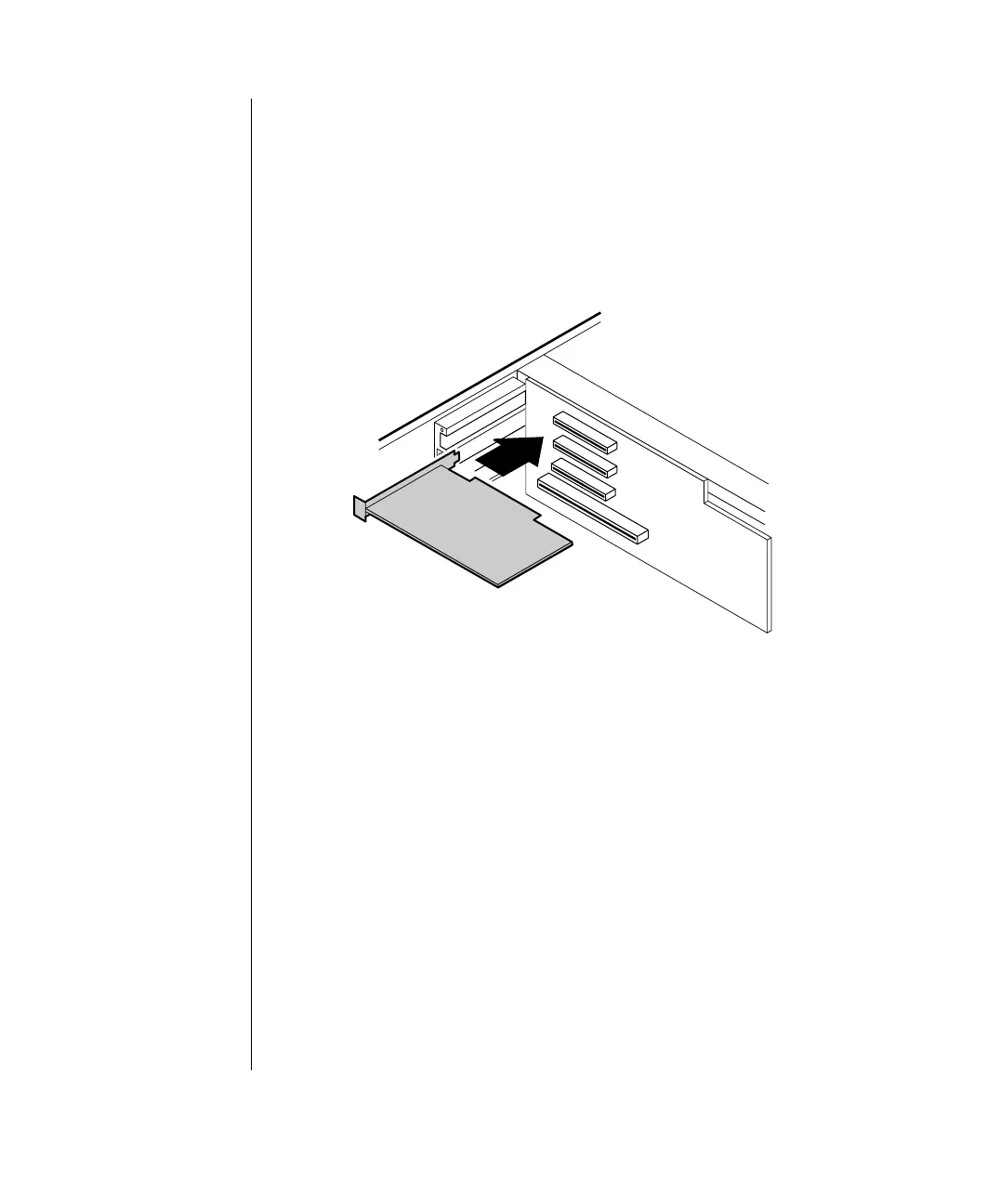

Insert the edge of the expansion card into the slot on the riser card.
7.
After seating the card firmly, replace the slot cover bracket.
8.
Connect any cables to the card (see card documentation for proper
jumper settings and cable orientation)
9.
Close the case, as described in Chapter 1.
10.
Reconnect the power cord and turn on the system.
It may be necessary to reconfigure your system after installing some
expansion cards. You may also need to install software that came with the
card. Check the card documentation for additional information.
