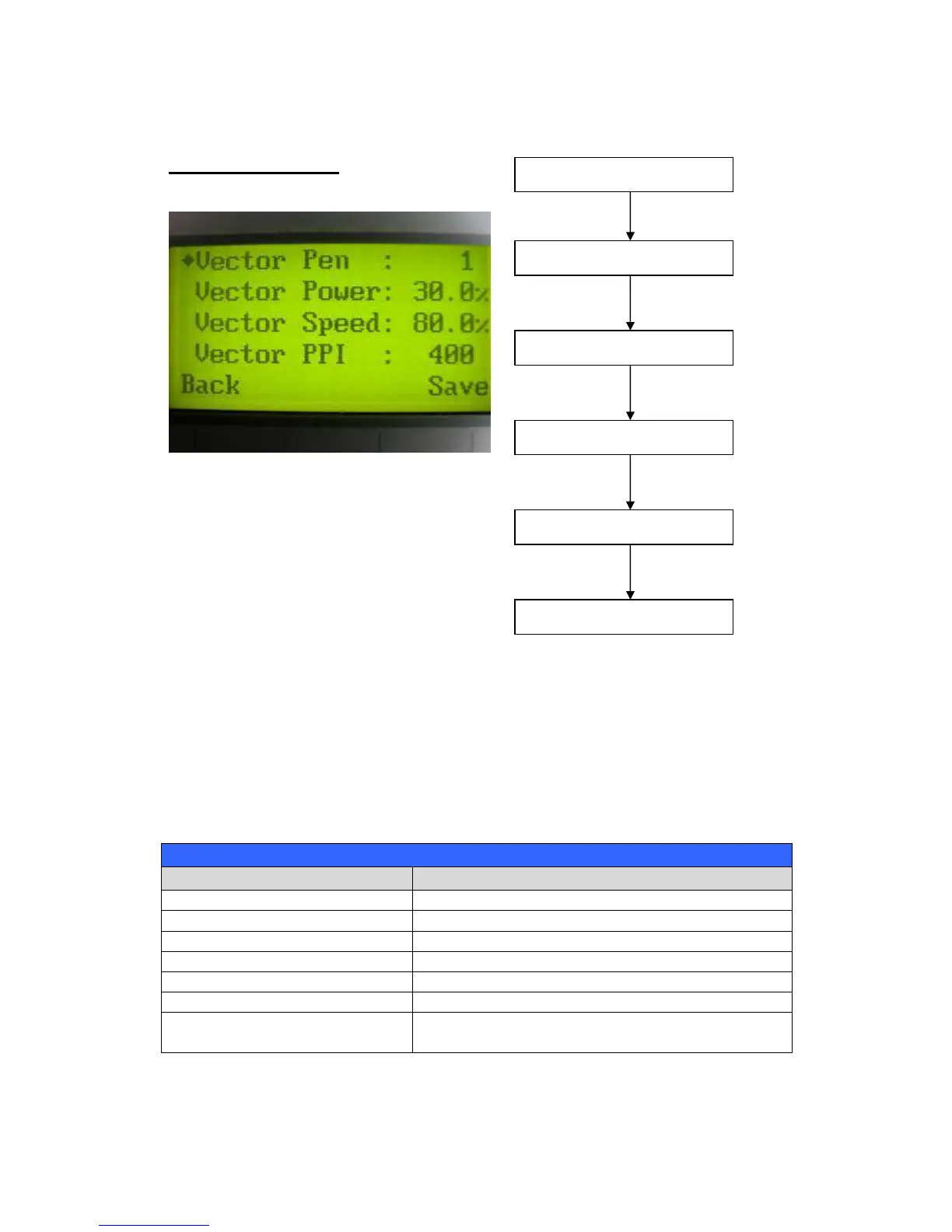

File Edit Vector Page
The File Edit Vector Page allows you to edit the vector pen, vector power, vector speed, and
vector PPI, and power ramp settings for the selected job. These settings correspond to the same
settings found on the LaserPro X252RX & X380RX print driver. This page allows you to easily
adjust these values to make immediate adjustments while processing your loaded jobs, even
when you have disconnected your computer from the LaserPro X252RX & X380RX.
 Vector Pen: 1 - 16
 Vector Power: 0.0% - 100%
 Vector Speed: 0.0% 100%
 Vector PPI: 30 - 1524
 Power Ramp: YES / NO
File Edit Vector Page
Relevant Buttons
Function
F1 (Back) Back to previous page
F4 (Save) Save your current settings



/



Directional
Scroll through the menu selections



/



Directional
Adjust the value for that selection
Start / Stop Back to Main Work Page
Auto Focus Initiate the auto focus function
▲ / ▼
Manual Focus Buttons
Manually adjust the height of the work table (Z-
axis)
Main Work Page
Press
F4
☼
Navigating to this page:
Functions Page
Select <
File Management
>
from the menu
File Management Page
Select a job file and
press Enter
File Information Page
Pre
ss
F4
File Management Edit Page
Select <
Vector Setting
>
from the menu
File Edit Vector Page
