GE AF-650 GP - 3 Introduction to AF-650 GP; Product Overview

3 Introduction to AF-650 GP

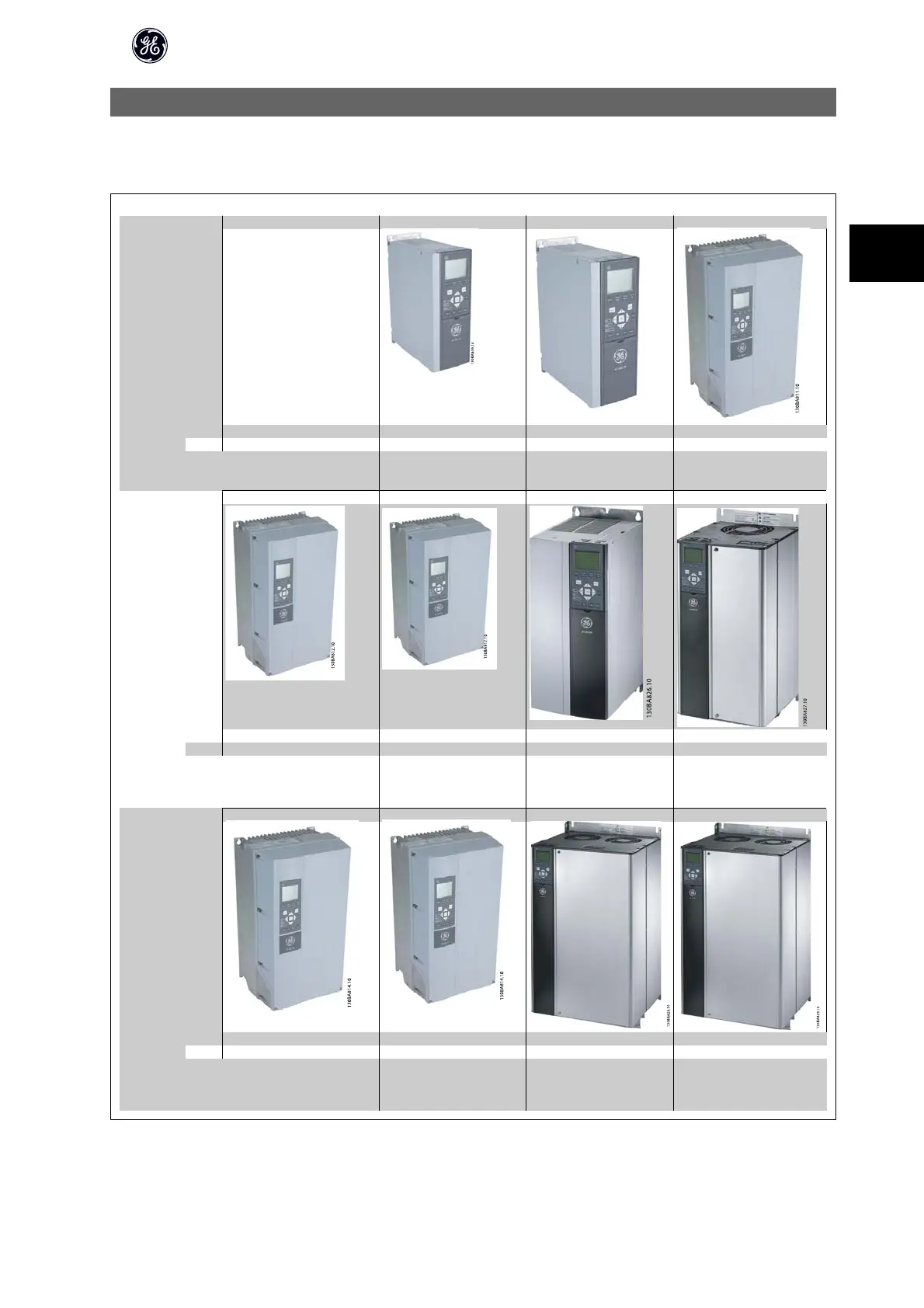

3.1 Product Overview
Frame size depends on Unit Size, power range and mains voltage
Unit Size 12 13 15
130BA810.10
Unit Size
protection
IP 20/21 20/21 55/66
NEMA Chassis/ Type 1 Chassis/ Type 1 Type 12
Heavy duty (HD) rat-
ed power - 160%
overload torque
0.25-3 kW (200–240 V)
0.37-4.0 kW (380-480V)
0.75-4 kW (525-600 V)
3.7 kW (200-240 V)
5.5-7.5 kW (380-480 V)
5.5-7.5 kW (525-600 V )
0.25-3.7 kW (200-240 V)
0.37-7.5 kW (380-480 V)
0.75 -7.5 kW (525-600 V)
Unit Size
21
22 23 24
Unit Size
protection
IP 55/66 55/66 20 20
NEMA Type 1/Type 12 Type 1/Type 12 Chassis Chassis
Heavy duty (HD) rat-
ed power - 160%
overload torque
5.5-7.5 kW (200-240 V)
11-15 kW (380-480V)
11-15 kW (525-600 V)
11 kW (200-250 V)
18.5-22 kW (380-480V)
18.5-22 kW (525-600 V)
11-22 kW (525-690 V)
5.5-7.5 kW (200-240 V)
11-15 kW (380-480 V)
11-15 kW (525-600 V)
11-15 kW (200-240 V)
18.5-30 kW (380-480 V)
18.5-30 kW (525-600 V)
Unit Size
31 32 33 34
Unit Size
protection
IP 55/66 55/66 20 20
NEMA Type 1/Type 12 Type 1/Type 12 Chassis Chassis
Heavy duty (HD) rat-
ed power - 160%
overload torque
15-22 kW (200-240 V)
30-45kW (380-480V)
30-45 kW (525-600 V)
30-37 kW (200-240 V)
55-75 kW (380-480V)
55-90 kW (525-600 V)
30-75 kW (525-690 V)
18.5-22 kW (200-240 V)
37-45 kW (380-480 V)
37-45 kW (525-600 V)
30-37 kW (200-240 V)
55-75 kW (380-480 V)
55-90 kW (525-600 V)
AF-650 GP Design Guide
15
3
