9.12 IP21/IP 4X/ TYPE 1 Unit Kit
IP 20/IP 4X top/ TYPE 1 is an optional unit element available for IP 20 Compact units.
If the unit kit is used, an IP 20 unit is upgraded to comply with unit IP 21/ 4X top/TYPE 1.
The IP 4X top can be applied to all standard IP 20 AF-650 variants.

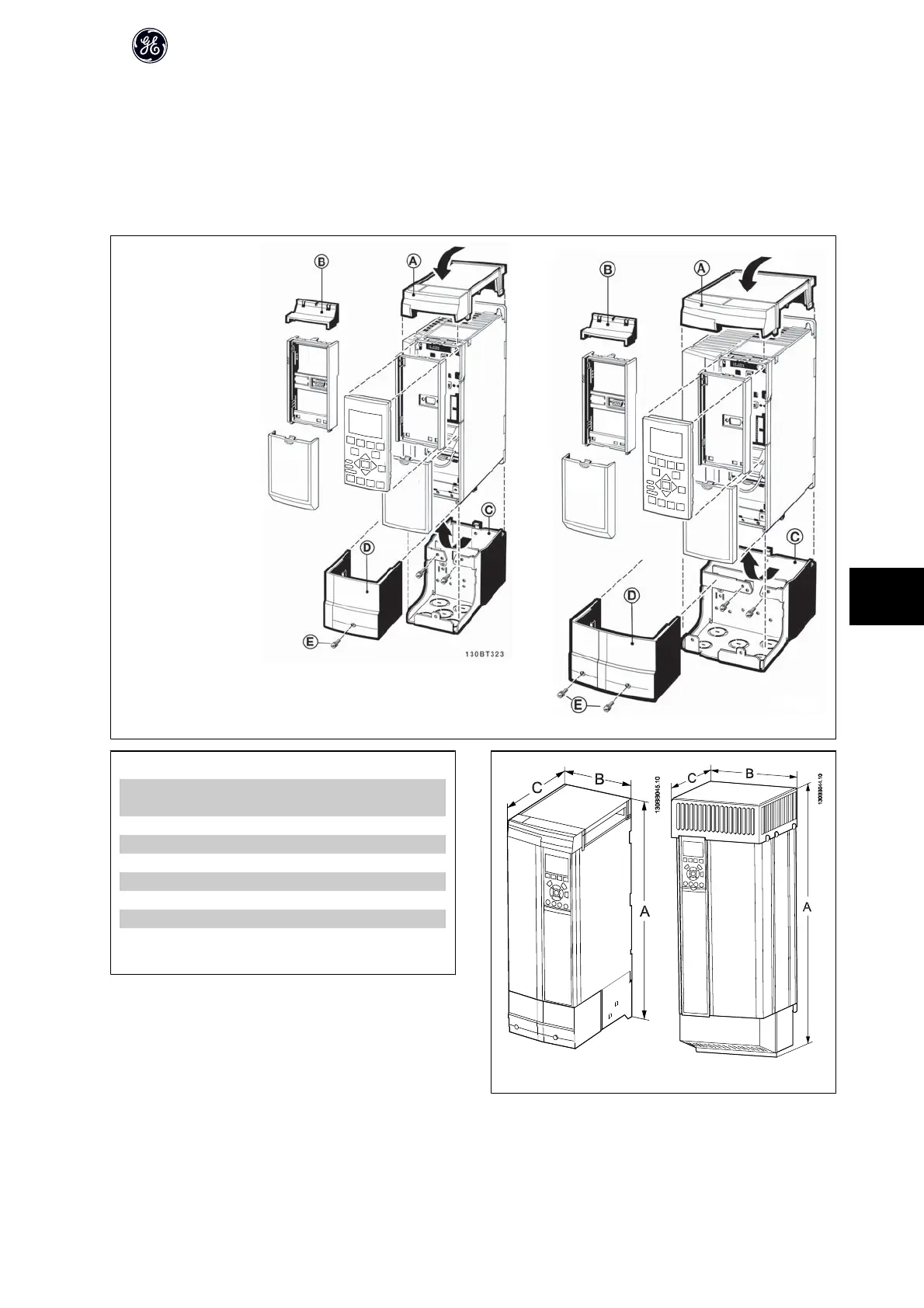

A – Top cover
B – Brim
C – Base part
D – Base cover
E – Screw(s)
130BT324.10
Place the top cover as shown.
If an A or B option is used the
brim must be fitted to cover
the top inlet. Place the base
part C at the bottom of the
drive and use the clamps
from the accessory bag to
correctly fasten the cables.
Holes for cable glands:
Size 12: 2x M25 and 3xM32
Size 13: 3xM25 and 3xM32
Unit Size 12 Unit Size 13
Dimensions
Unit type
Height (mm)
A
Width (mm)
B
Depth (mm)
C*
12 372 90 205
13 372 130 205
23 475 165 249
24 670 255 246
33 755 329 337
34 950 391 337
* If option A/B is used, the depth will increase (see section Mechanical
Dimensions for details)
12, 13, 23 24, 33, 34
Side-by-side installation is not possible when using the IP 21/ IP 4X/ TYPE 1 Enclosure Kit
