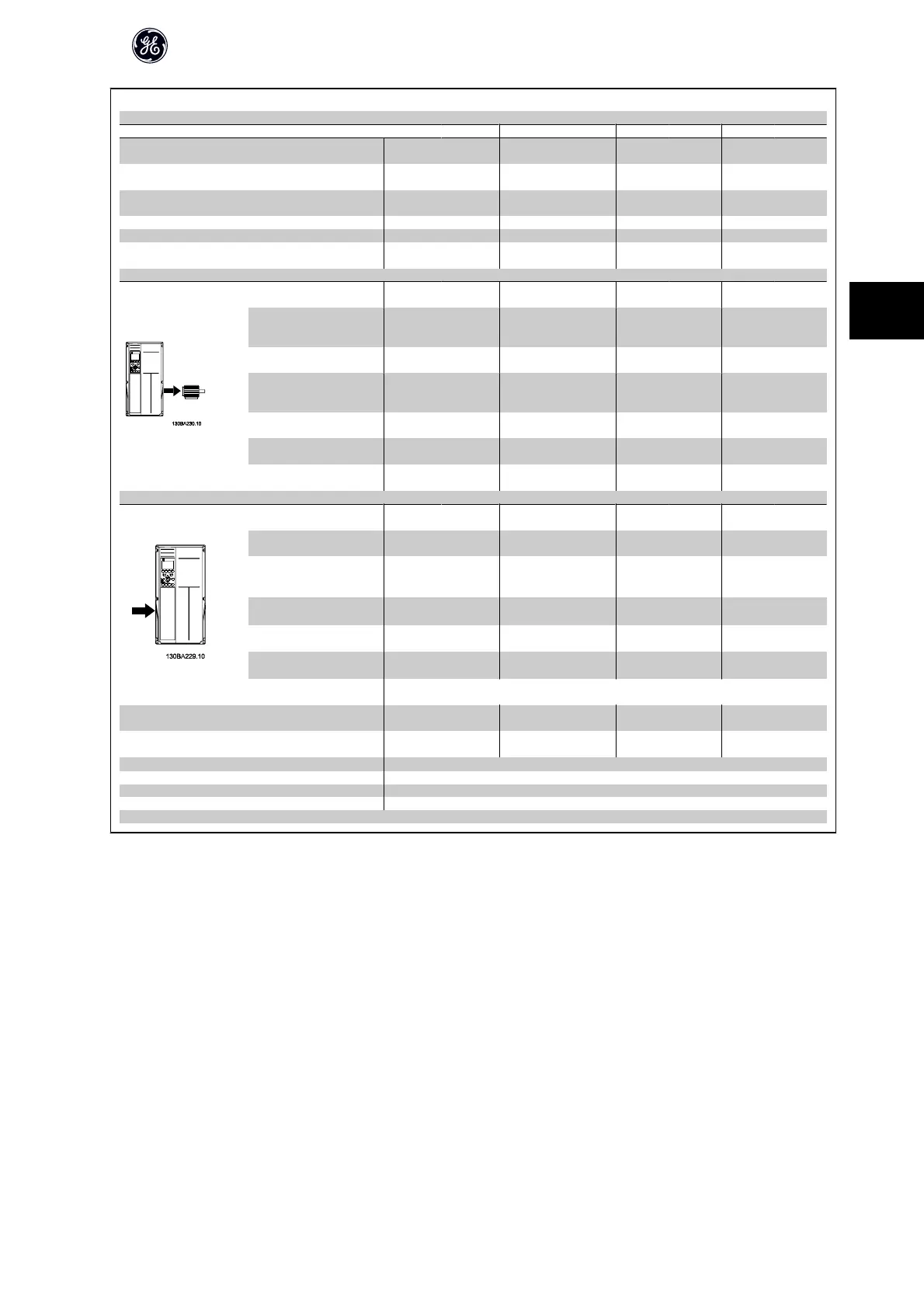

Mains Supply 3 x 380 - 480 VAC
AF-650 GP 350 HP 450 HP 500 HP 550 HP
Heavy Duty/Light Duty* HD
LD HD LD HD LD HD LD
Typical Shaft output at 400 V
[kW]
250 315 315 355 355 400 400 450
Typical Shaft output at 460 V
[HP]
350 450 450 500 500 600 550 600
Typical Shaft output at 480 V
[kW]
315 355 355 400 400 500 500 530
IP21/Nema 1 Drive Type
51 51 51 51
IP54/Nema 12 Drive Type 51 51 51 51
IP00 Open Chassis Drive
Type
52 52 52 52
Output current
Continuous
(at 400 V) [A]
480 600 600 658 658 745 695 800
Intermittent (60 sec over-
load)
(at 400 V) [A]
720 660 900 724 987 820 1043 880
Continuous
(at 460/ 480 V) [A]
443 540 540 590 590 678 678 730
Intermittent (60 sec over-
load)
(at 460/ 480 V) [A]
665 594 810 649 885 746 1017 803
Continuous KVA
(at 400 V) [KVA]
333 416 416 456 456 516 482 554
Continuous KVA
(at 460 V) [KVA]
353 430 430 470 470 540 540 582
Continuous KVA
(at 480 V) [KVA]
384 468 468 511 511 587 587 632
Max. input current
Continuous
(at 400 V ) [A]
472 590 590 647 647 733 684 787
Continuous
(at 460/ 480 V) [A]
436 531 531 580 580 667 667 718
Max. cable size, mains, mo-
tor and load share [mm
2
(AWG
2)
)]
4x240
(4x500 mcm)
4x240
(4x500 mcm)
4x240
(4x500 mcm)
4x240
(4x500 mcm)
Max. cable size, brake [mm
2
(AWG
2)
)
2 x 185
(2 x 350 mcm)
2 x 185
(2 x 350 mcm)
2 x 185
(2 x 350 mcm)
2 x 185
(2 x 350 mcm)
Max. external mains fuses
[A]
1
700 900 900 900
Estimated power loss
at 400 V [W]
4)
5164 6790 6960 7701 7691 8879 8178 9670
Estimated power loss
at 460 V [W]
4822 6082 6345 6953 6944 8089 8085 8803
Weight,
Unit Size IP21, IP 54 [kg]
263 270 272 313
Weight,
Unit Size IP00 [kg]
221 234 236 277
Efficiency
4)
0.98
Output frequency 0 - 600 Hz
Heatsink overtemp. trip 95 °C
Power card ambient trip 68 °C
* Heavy Duty = 160% torque during 60 s, Light Duty = 110% torque during 60 s
AF-650 GP Design Guide
59
