Unit Sizes 3x
60º AVM - Pulse Width Modulation

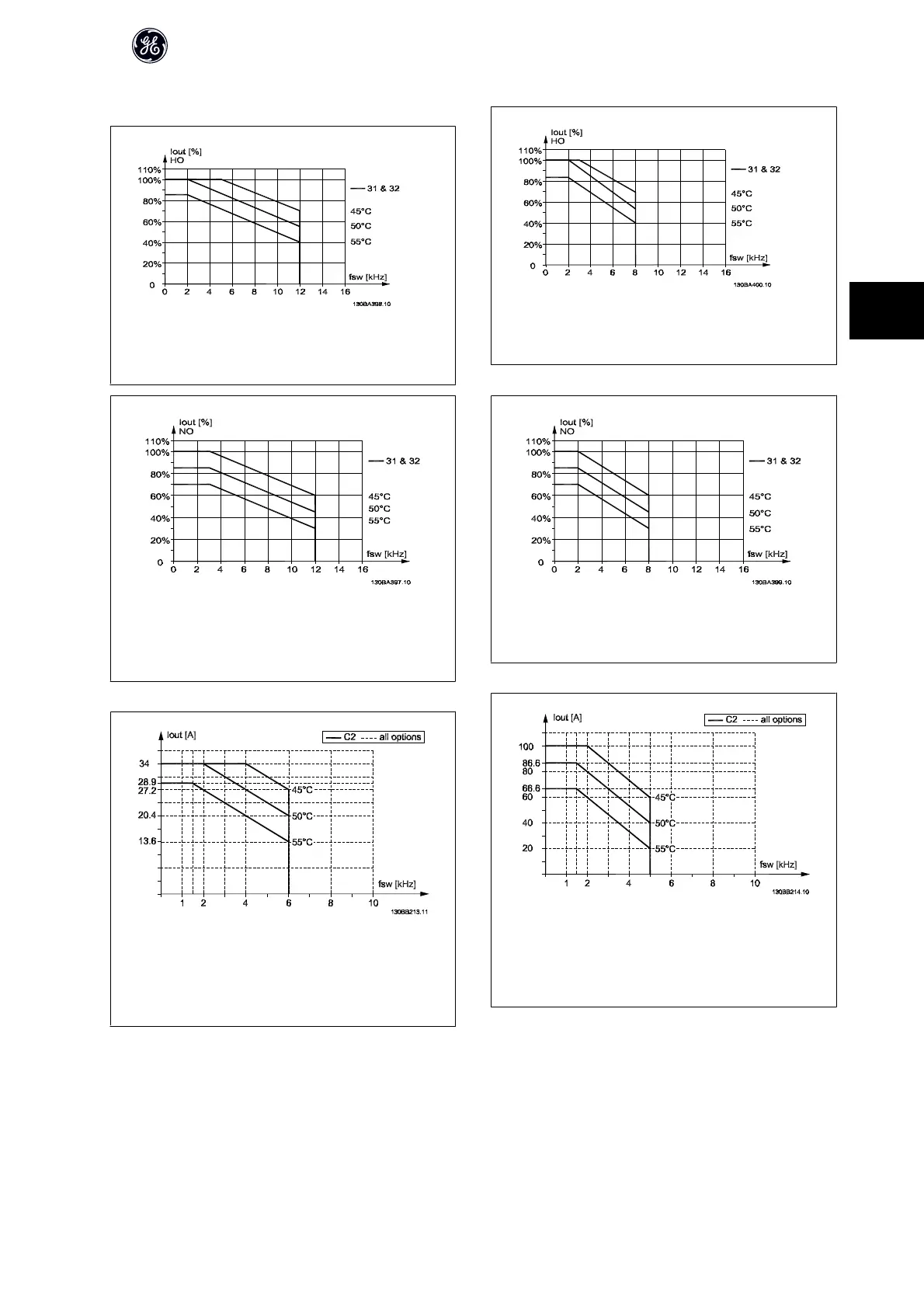

Illustration 4.12: Derating of I
out
for different T
AMB, MAX
for Unit
Size 3x, using 60º AVM in High torque mode (160% over torque)
SFAVM - Stator Frequency Asyncron Vector Modulation
Illustration 4.13: Derating of I
out
for different T
AMB, MAX
for Unit
Size 3x, using SFAVM in High torque mode (160% over torque)
Illustration 4.14: Derating of I
out
for different T
AMB, MAX
for Unit
Size 3x, using 60º AVM in Normal torque mode (110% over tor-
que)
Illustration 4.15: Derating of I
out
for different T
AMB, MAX
for Unit
Size 3x, using SFAVM in Normal torque mode (110% over torque)
Illustration 4.16: Output current derating with switching fre-
quency and ambient temperature for frame size C2, 60º AVM.
Note: The graph is drawn with the current as absolute value
and is valid for both high and normal overload.
Illustration 4.17: Output current derating with switching fre-
quency and ambient temperature for frame size C2, SFAVM.
Note: The graph is drawn with the current as absolute value
and is valid for both high and normal overload.
