9.2.2 Power Card
1. Disconnect cabling from power card: MK100, MK102, MK103, MK104, MK105, MK106, MK108, MK110, Mk112, and FK102.
2. Remove power card by removing seven screws (T25) and detach plastic standoff at top right corner of power card.
3. Insulation sheet behind power card can be left in place. Ensure its is in place for reassembly.
NOTE: Power card may remain installed if power card mounting plate is being removed to access soft charge boards. Disconnect cabling.
Reinstall in reverse order of this procedure. Tighten mounting screws to 2.3 Nm (20 in-lbs).
1
2
3
3

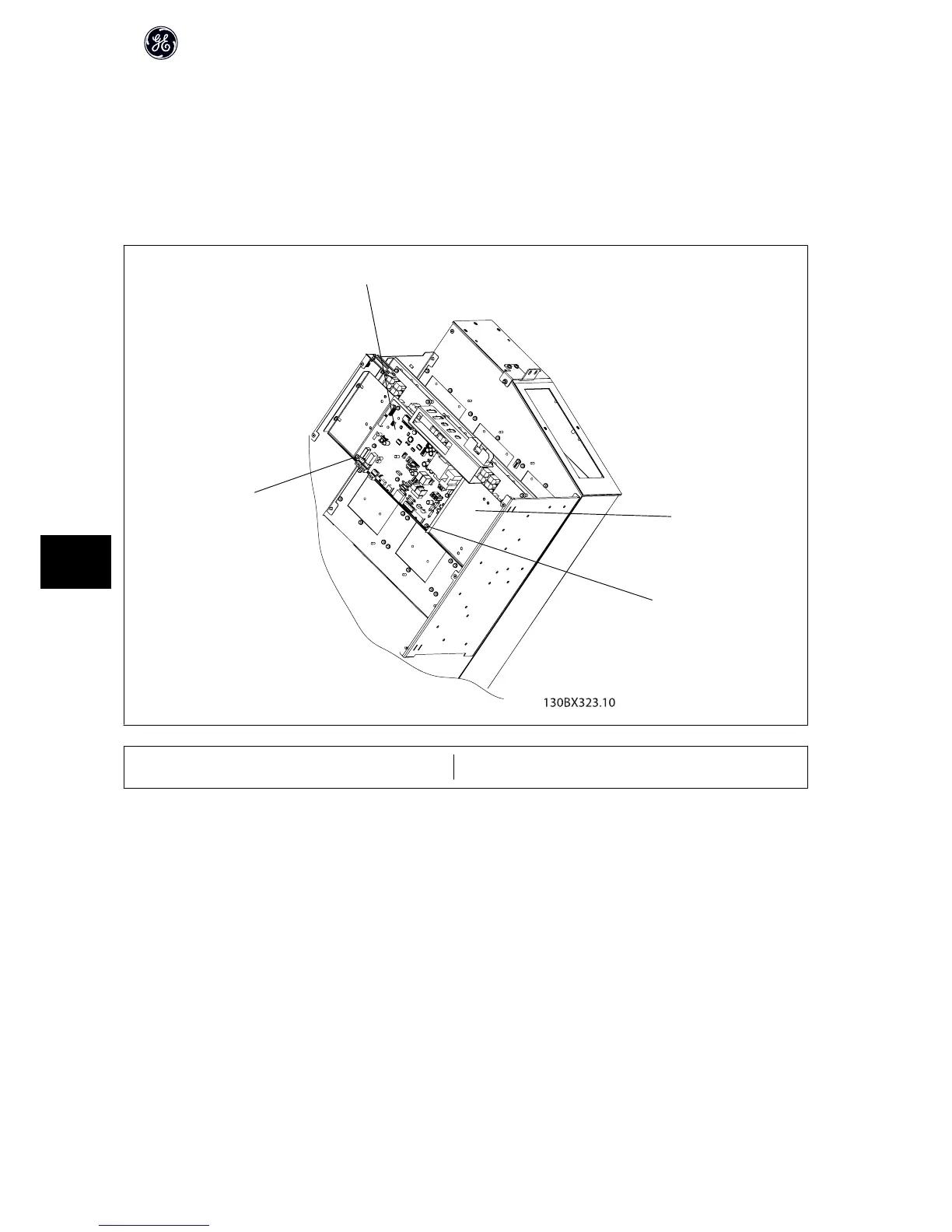

1 Power card (step 1) 3 Power card attaching screw (step 2)
2 Power card mounting plate
High Power Service Manual for Unit Sizes 6x
122
