3.3.4 Multi stage with accessories
Multi stage

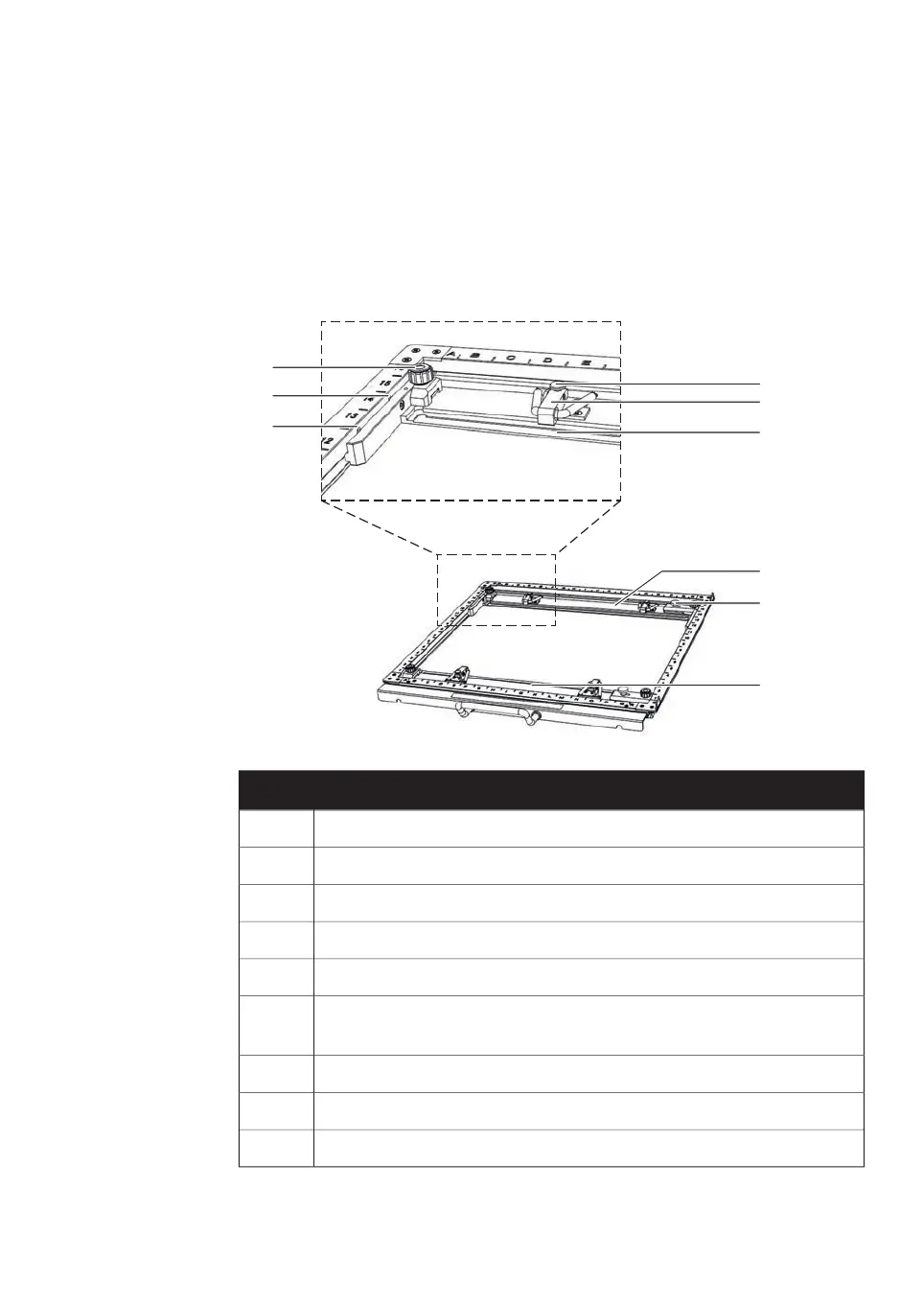

The multi stage is used to scan titer plates, glass slides or gels in glass cassettes.
1
9
8
7
6
5
4
3
2
FunctionPart
Guide plate position lock screw1
Groove for titer plate holder2
Groove for DIGE gel glass cassette3
Screw to secure spring lock4
Spring lock to hold glass cassette or titer plate holder5
Height adjustment ridges for positioning the titer plate holder and glass
cassettes (3 mm and 5 mm)
6
Movable guide plate7
Lock screw, holds the movable guide plate on the multi stage8
Movable guide plate9
