3-4 Disk System Adjustments (Continued)
d. Rotate the thumb wheel to move the head until the correct wave form is achieved on the scope
as shown in Illustration 6-3-8. Because there is some spring in the adjustment, always verify the
waveform after the alignment tool is removed.

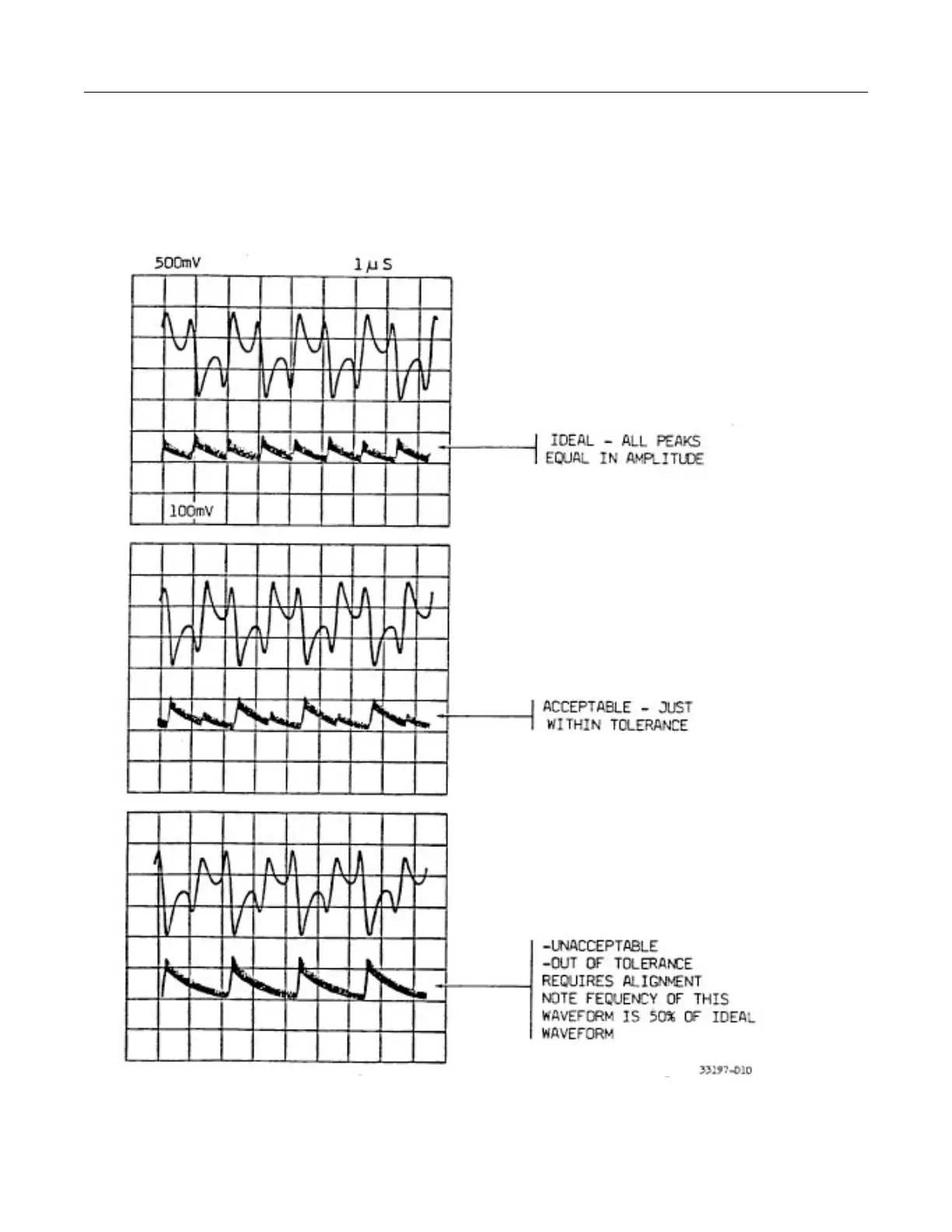

ILLUSTRATION 6-3-8
