GE MEDICAL SYSTEMS CT 9800 QUICK SYSTEM
Rev. 19 Direction 18000
8-8-6
4. As shown in Illustration B, the model rating plate is located at the end of the detector. In order to see the
rating plate, you must look between the external alignment light and the coronal / internal alignment light box
with the detector between 12 and 1 o’clock position. If necessary use a flash light to see the rotating plate
better.
Record the 4 digit detector identification number. Note that the model number (46 #) and serial number
(CN...) numbers are located on the model rating plate as well.

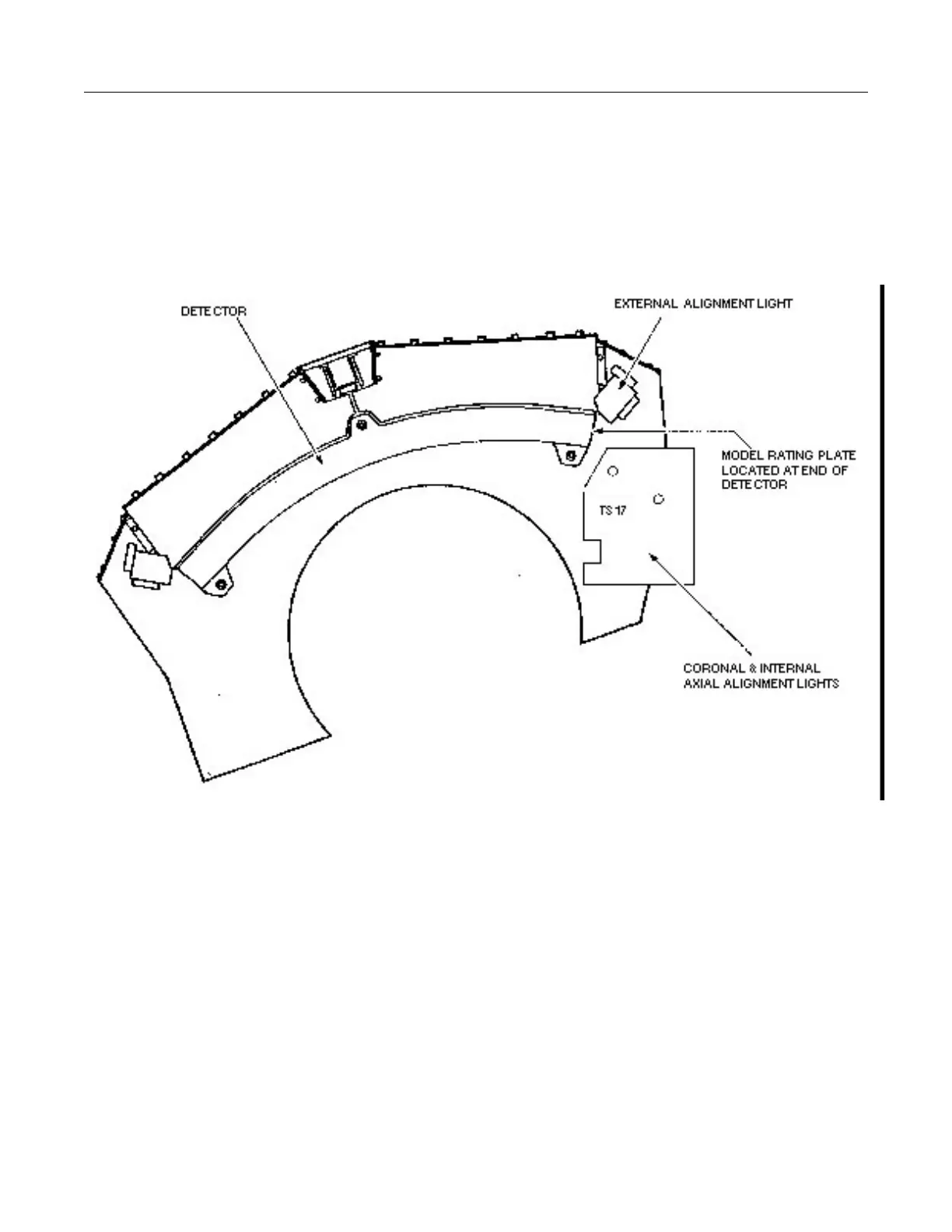

ILLUSTRATION B
ACCESSING THE DETECTOR MODEL RATING PLATE
8-6-3 Enter Into the CT9800 Data Base
Both INSTALL and REGEN give the user the opportunity to enter or change the two Detector ID numbers (Refer
to REGEN procedure in Section 11.)
