GE CT-9800

GE MEDICAL SYSTEMS CT 9800 QUICK SYSTEM
Rev. 9 Direction 18000
4-3-10

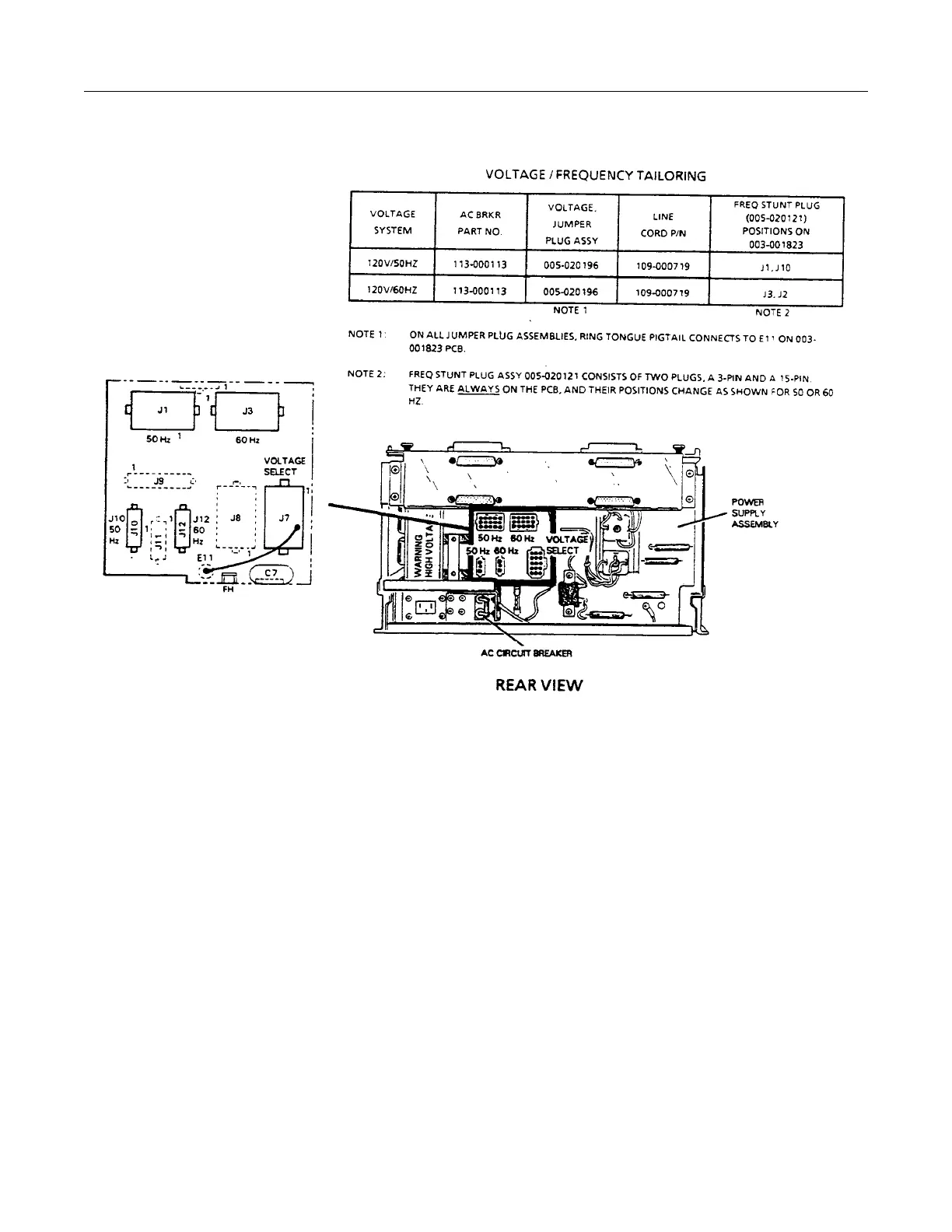

ILLUSTRATION 4-3-9
ARGUS VOLTAGE & FREQUENCY CONFIGURATION
6. ACE Disk Unit
Note: If an ACE Disk Drive is not present in your system, proceed to step 7.
a. Turn “ON” the Power switch at the front of the ACE disk drive.
b. Observe that the Power on light is ON and the light on the front of the ACE disk drive is on
momentarily then goes off.
c. Ensure that all LEDs on the ACE controller board are OFF. If they are ON or Flashing, a problem has
been detected.
