GE D200 - D20 Front Panel: Non-VME Single Slot; D20 Front Panel: VME Multi Slot

D20/D200
Installation and Operations Guide
GE Energy
994-0078-2.00-7 General
16
Full
Familiarization, continued
D20 Front
Panel: non-
VME Single
Slot

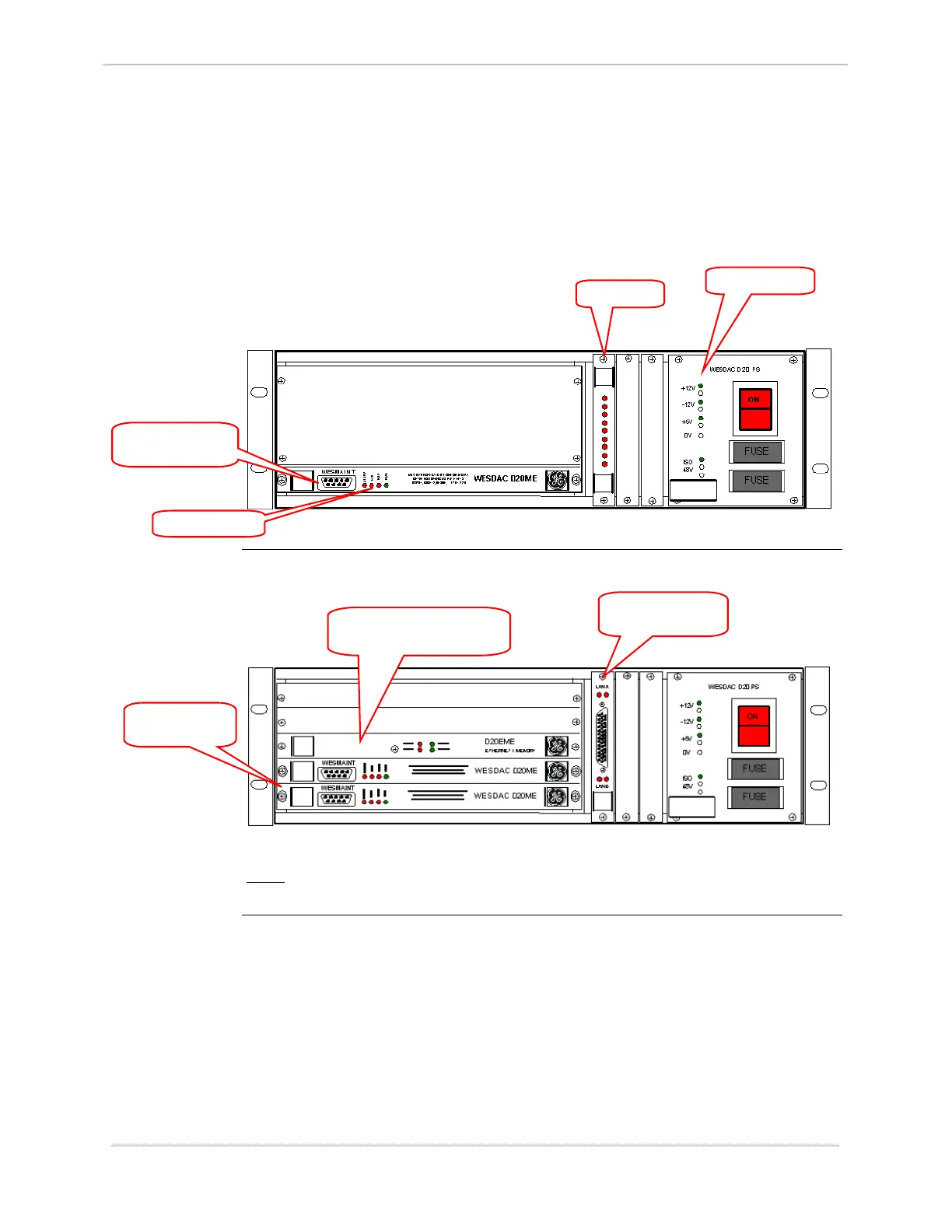

The D20 non-VME single-slot chassis, illustrated below, consists of the following:
• D20ME/ME II Main Board with WESMAINT II+ connector, LEDs for
operational status and patents listing
• Modem slots
• Power supply with switch and fuses
D20 Front
Panel: VME
Multi Slot
The D20 VME-compatible chassis can have additional main boards and a D20EME
board.
Note:
A Media Interface Card is only required if the D20EME provides Ethernet
capability.
Modem Slot
Power Supply
WESMAINT II+
Connector
LED Indicators
D20ME/ME II
Main Board
Ethernet/Memory
Expansion Card, D20EME
Media Interface
Card for Ethernet
