Familiarization, continued

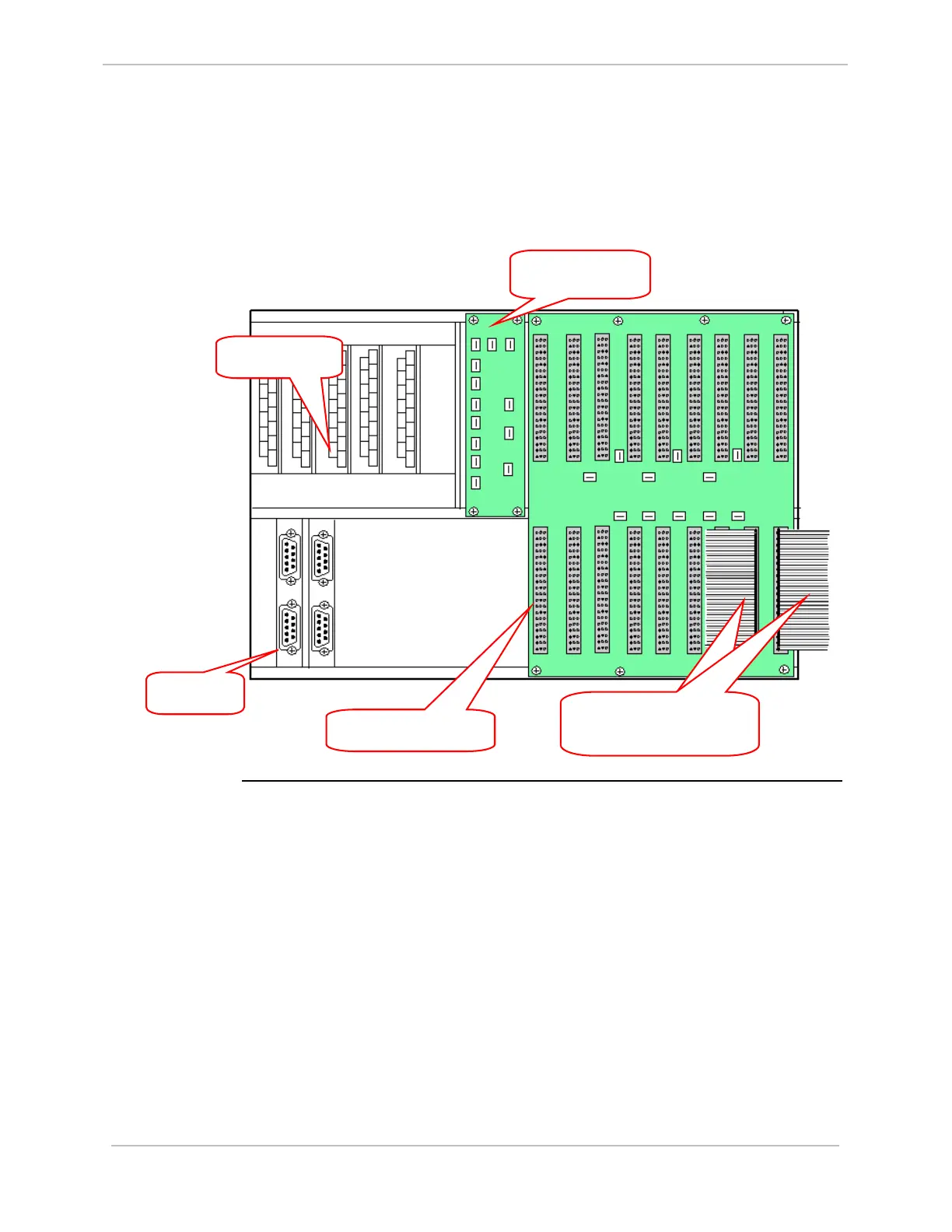

D200 Rear
Panel
The D200 vertical-slot chassis uses a Schroff® VME bus backplane with ribbon
cables connecting to WESTERM D20M++ Termination Panels. The VME Power
Distribution Panel distributes power from power supplies to main boards,
termination panels and peripherals.
Ribbon cable connectors to
WESTERM D20M++
Termination Panels
Ribbon cable connectors to
WESTERM D20M++
Termination Panels
SCHROFF VME bus
backplane
Power Distribution
panel
Power Supply
Connector Blocks
Modem
Connectors
