GE Energy
D20/D200
Installation and Operations Guide
General 994-0078-2.00-7
Full
57
Connections and Configuration, continued
WESTERM
D20K: External
Control Output
Supply

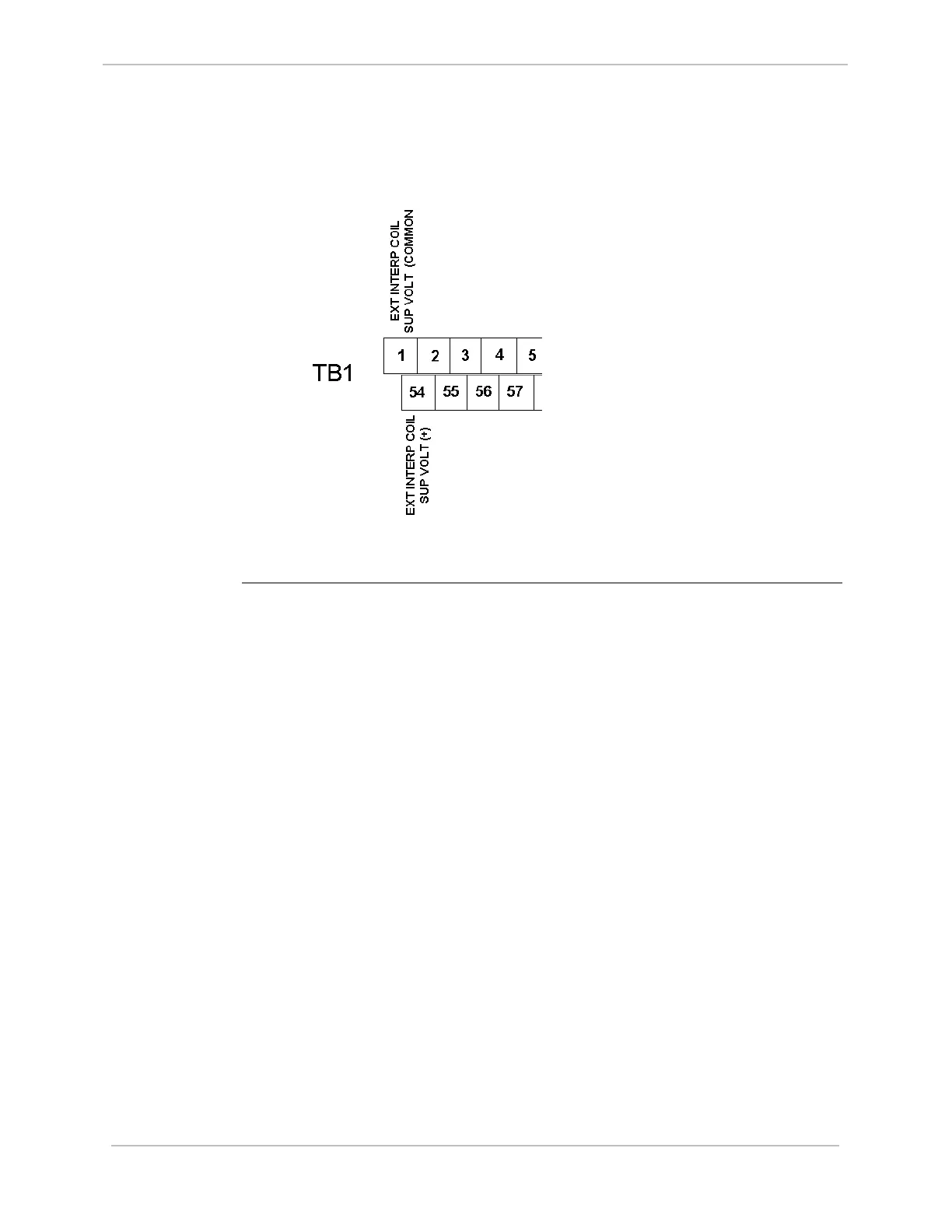

For connections to an external power supply for control output to interposing relay
panels, use TB1-1 and TB1-54 on the WESTERM D20K:
Jumpers Z2 and Z3 must be set for external supply source. Fuse F2 provide fusing on
the positive leg of the power supply. See “WESTERM D20K: Jumpers”, page 69.
