GE Energy
D20/D200
Installation and Operations Guide
General 994-0078-2.00-7
Full
59
Connections and Configuration, continued
WESTERM
D20AC: DC
Power Supply

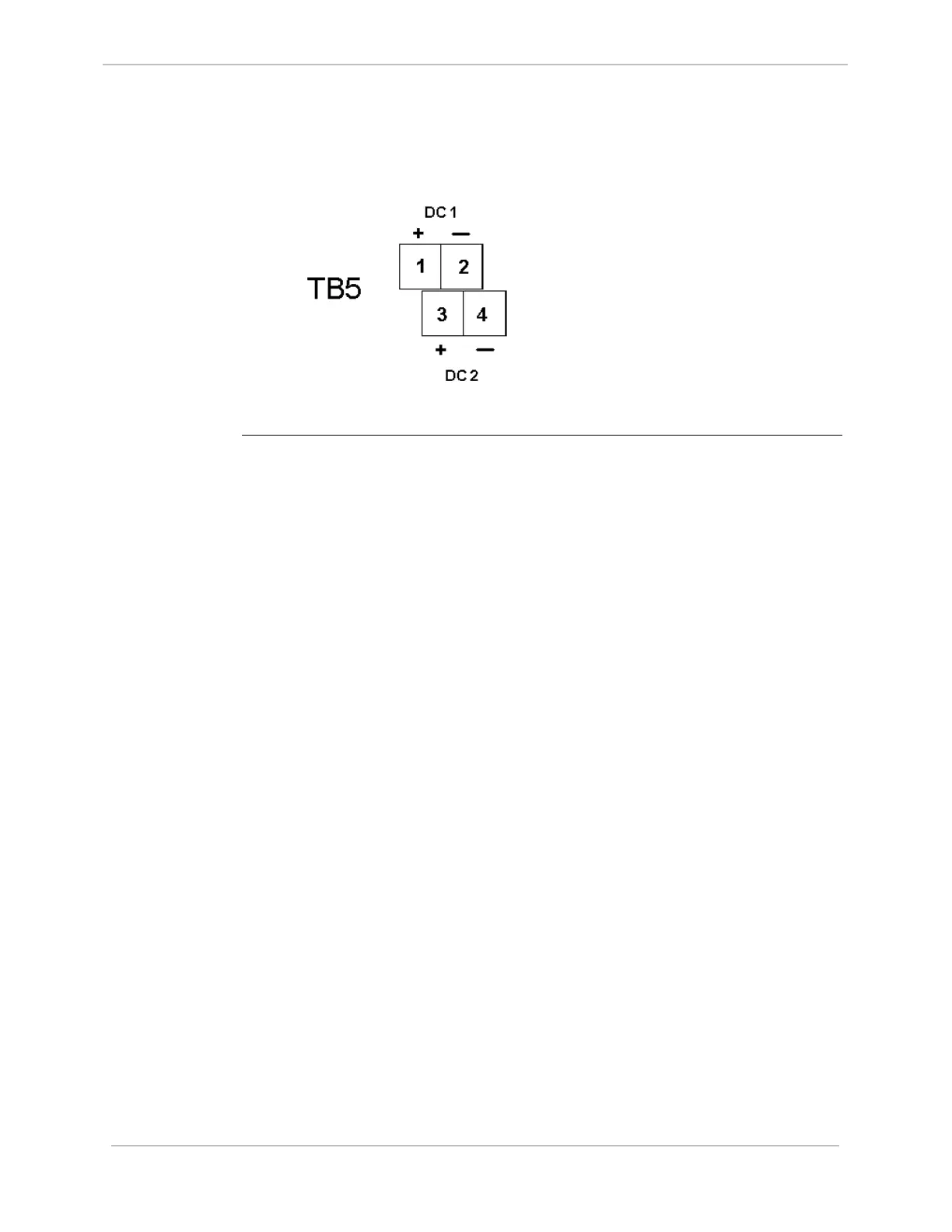

Redundant DC power supply connections to the WESTERM D20AC are provided on
TB5-1 (DC1+), TB5-2 (DC1–), TB5-3 (DC2+) and TB5-4 (DC2–):
Fuses F1 and F2 provide fusing on each leg of the supply.
