CHAPTER 4: INTERFACES FLEXLOGIC DESIGN USING ENGINEER
D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 4-69
4
Some information displayed in the compile messages updates automatically, for example messages after a device is
unplugged.

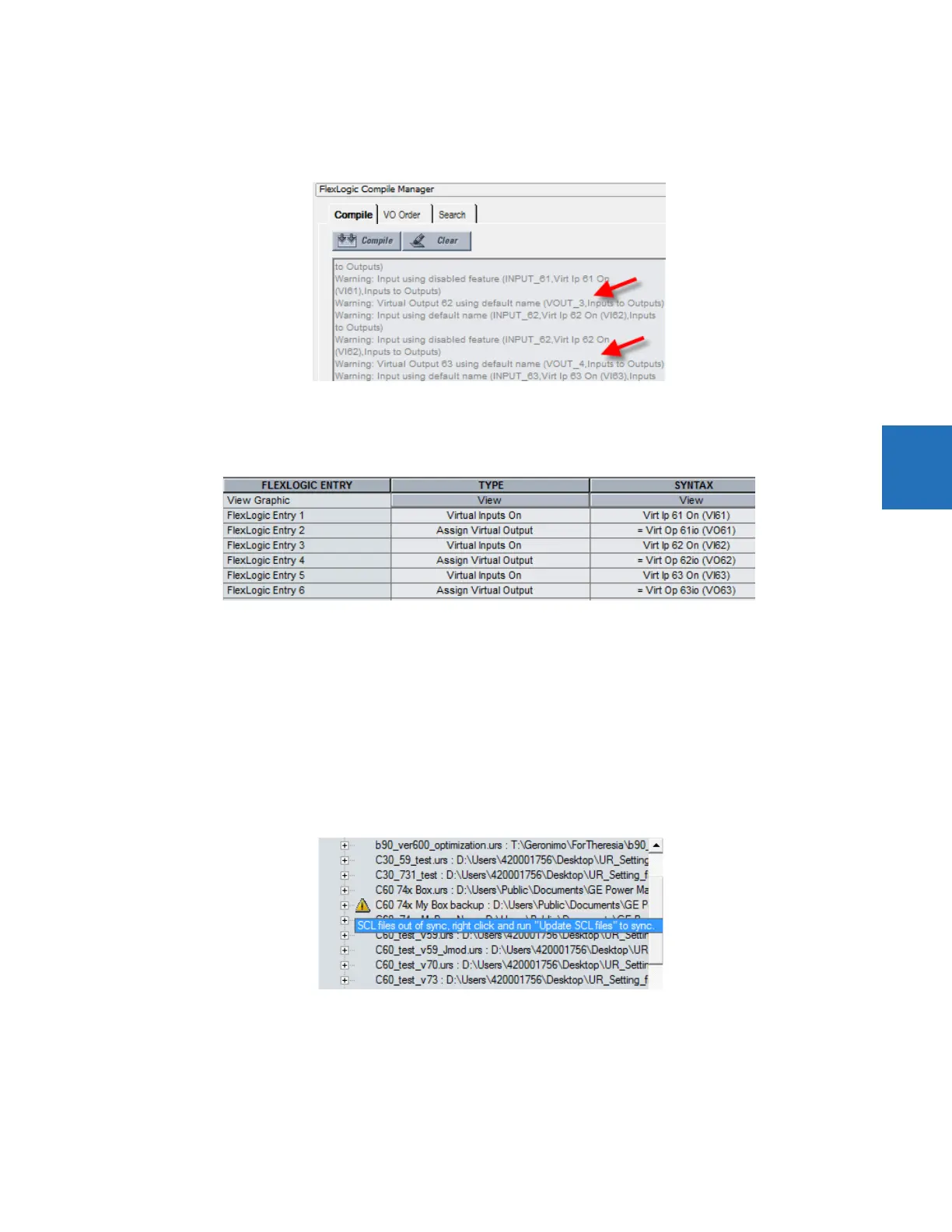

Figure 4-76: Compile and check the logic
12. View the FlexLogic equations by navigating in the Offline Window area to FlexLogic > FlexLogic Equation Editor. The
window opens with the entries displayed in the next tab.
Figure 4-77: Logic displayed in FlexLogic Equation Editor
13. Save the work.
The logic diagram has been created and the FlexLogic equations populated. The next steps are to upload the file to the
device and to monitor the device.
4.4.1.4 Compiled results and warning messages
When a yellow caution icon displays in the Offline Window area, it means that the settings file is not synchronized with the
online device. Right-click the device in the Offline Window area, and select the Update SCL files option. SCL refers to the
Substation Configuration Language. An Instantiated IED capability description (IID) file is an example of an SCL file and
contains the actual settings on a UR device.
Figure 4-78: Settings files not synchronized between offline and online files
When the Update SCL files option is selected, the CID and IID files in the device folder are updated by the user
configuration in the IEC 61850 panel and thereby become synchronized. The CID file and the IID file (depending on the
preference 'Do not update IID file when updating SCL files') are updated. If the CID file is not already there, it is generated.
