5-162
D30 LINE DIST
ANCE PROTECTION SY
STEM – INSTRUCTION MANUAL
SYSTEM SETUP
CHAPTER 5: SETTINGS
5

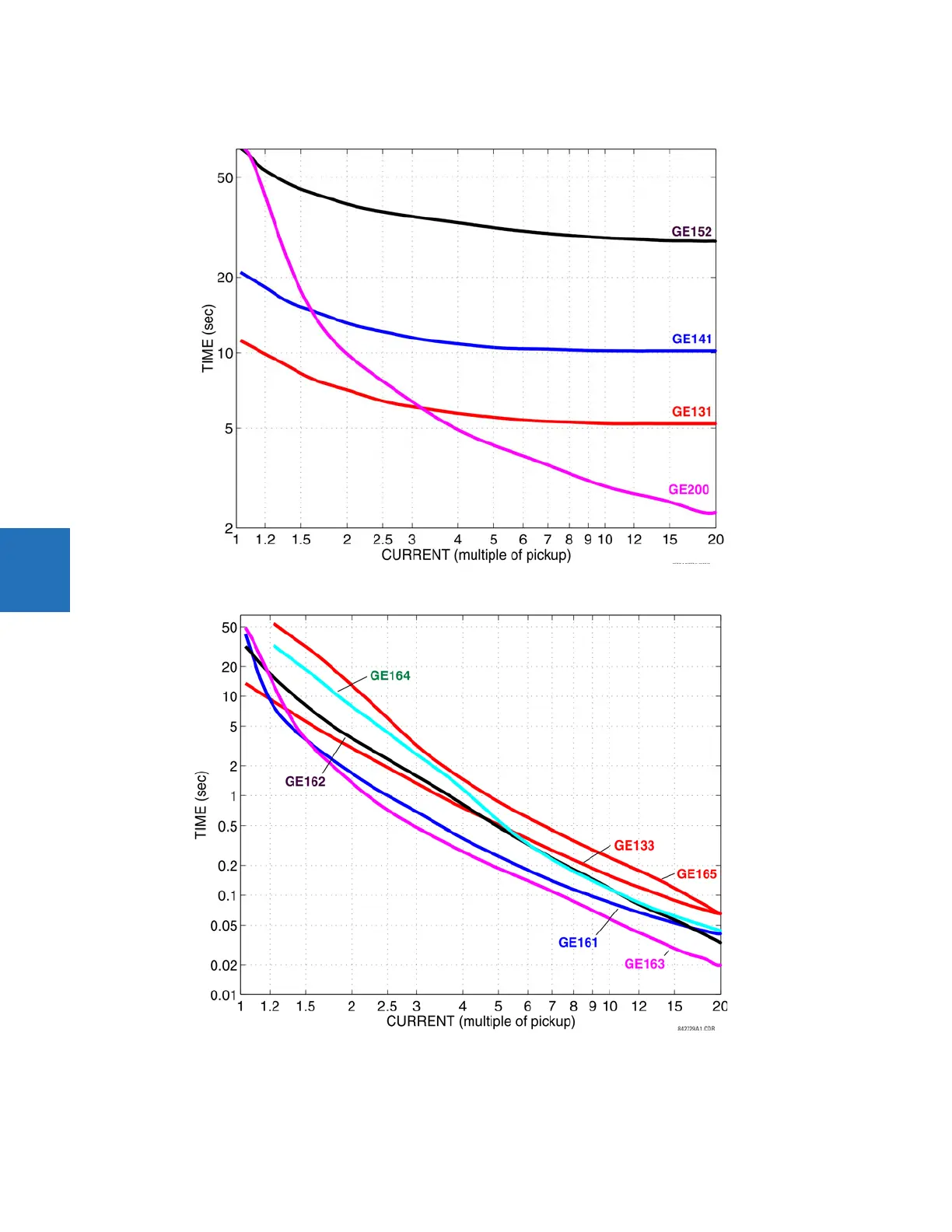

Figure 5-80: R
ecloser curves GE131, GE141, GE152, and GE200
Figure 5-81: Recloser curves GE133, GE161, GE162, GE163, GE164, and GE165
371
373
