CHAPTER 5: SETTINGS GROUPED ELEMENTS
D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 5-193
5
PH DIST PH SELECT SUPV enables phase selection supervision on phase distance zone 1 to zone 3.

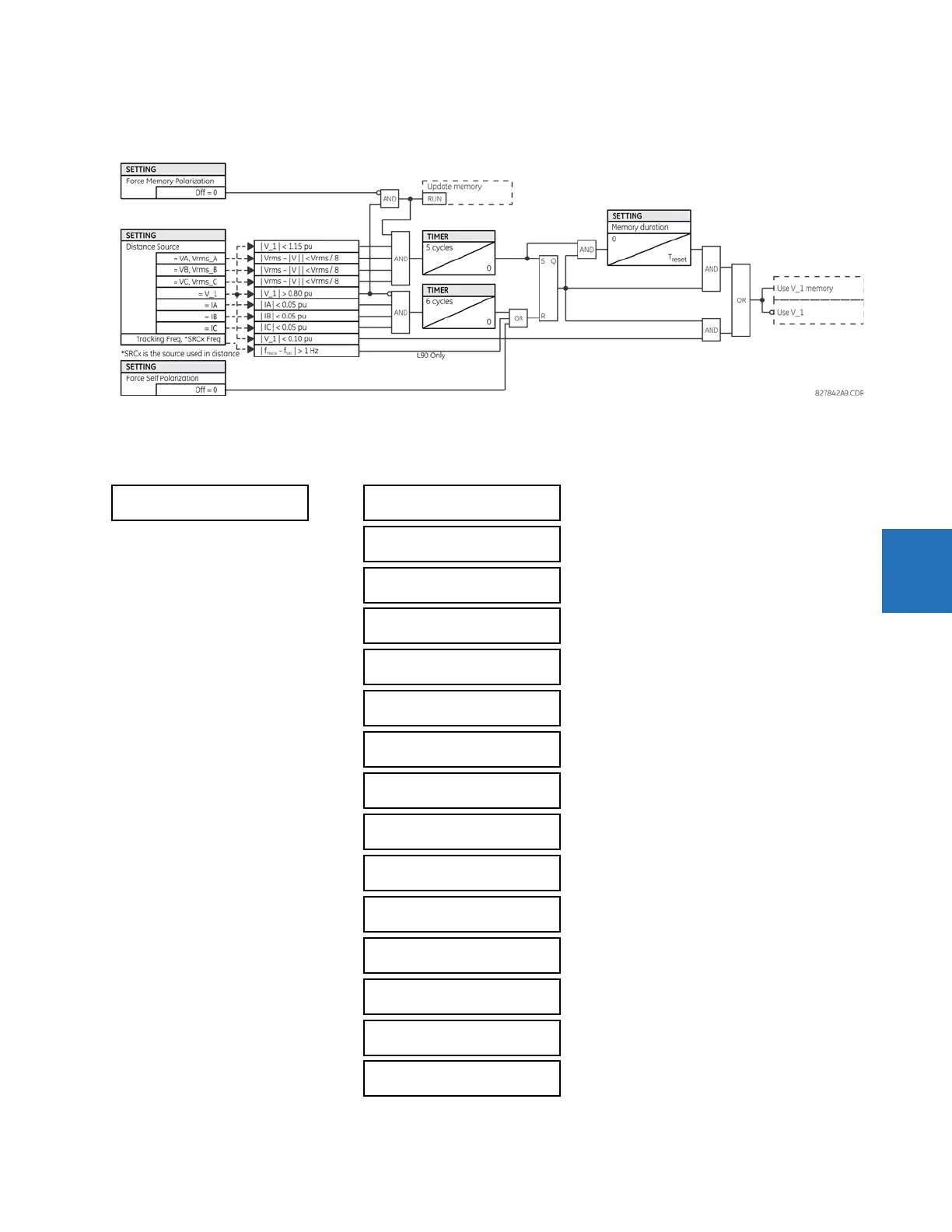

Figure 5-98: Memory voltage logic
5.7.4.2 Phase distance (ANSI 21P, IEC PDIS)
SETTINGS GROUPED ELEMENTS SETTING GROUP 1(6) DISTANCE PHASE DISTANCE Z1(Z5)
PHASE DISTANCE Z1
PHS DIST Z1
FUNCTION: Disabled
Range: Disabled, Enabled
PHS DIST Z1 DIR:
Forward
Range: Forward, Reverse, Non-directional
PHS DIST Z1
SHAPE: Mho
Range: Mho, Quad
PHS DIST Z1 XFMR VOL
CONNECTION: None
Range: None, Dy1, Dy3, Dy5, Dy7, Dy9, Dy11, Yd1,
Yd3, Yd5, Yd7, Yd9, Yd11
PHS DIST Z1 XFMR CUR
CONNECTION: None
Range: None, Dy1, Dy3, Dy5, Dy7, Dy9, Dy11, Yd1,
Yd3, Yd5, Yd7, Yd9, Yd11
PHS DIST Z1
REACH: 2.00 Ω
Range: 0.02 to 500.00 ohms in steps of 0.01
PHS DIST Z1
RCA: 85°
Range: 30 to 90° in steps of 1
PHS DIST Z1 REV
REACH: 2.00 Ω
Range: 0.02 to 500.00 ohms in steps of 0.01
PHS DIST Z1 REV
REACH RCA: 85°
Range: 30 to 90° in steps of 1
PHS DIST Z1
COMP LIMIT: 90°
Range: 30 to 90° in steps of 1
PHS DIST Z1
DIR RCA: 85°
Range: 30 to 90° in steps of 1
PHS DIST Z1
DIR COMP LIMIT: 90°
Range: 30 to 90° in steps of 1
PHS DIST Z1 QUAD
RGT BLD: 10.00 Ω
Range: 0.02 to 500.00 ohms in steps of 0.01
PHS DIST Z1 QUAD
RGT BLD RCA: 85°
Range: 60 to 90° in steps of 1
PHS DIST Z1 QUAD
LFT BLD: 10.00 Ω
Range: 0.02 to 500.00 ohms in steps of 0.01
To Next Page
