3-8 D30 LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
PANEL CUTOUTS CHAPTER 3: INSTALLATION
3

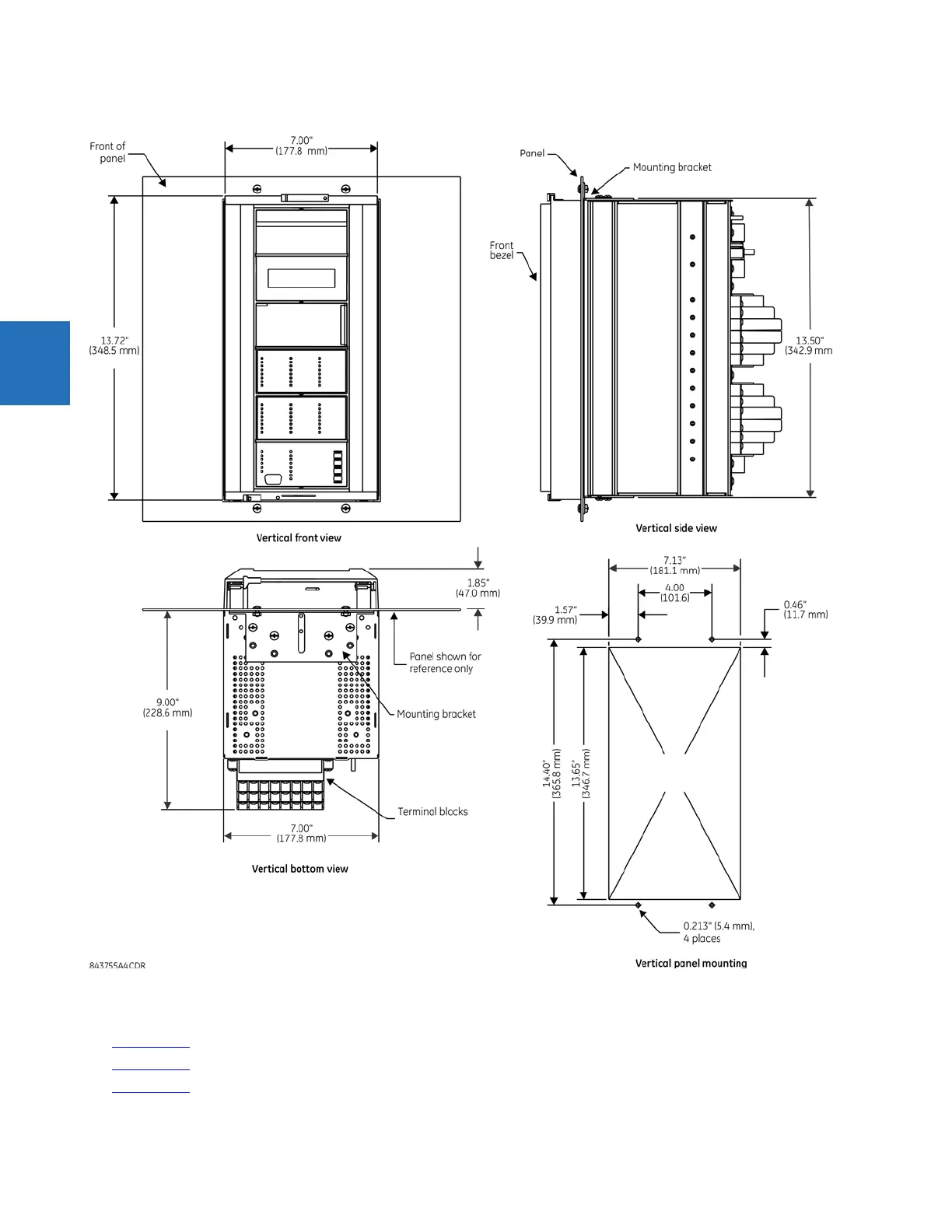

Figure 3-8: Vertical dimensions and mounting (standard front panel)
For side-mounting D30 devices with the enhanced front panel, see the following documents available on the UR DVD and
the GE Grid Solutions website:
• GEK-113180
— UR-Series UR-V Side-Mounting Front Panel Assembly Instructions
• GEK-113181
— Connecting a Remote UR-V Enhanced Front Panel to a Vertical UR Device Instruction Sheet
• GEK-113182
— Connecting a Remote UR-V Enhanced Front Panel to a Vertically-Mounted Horizontal UR Device
Instruction Sheet
