Chapter 1. Programming Site Data

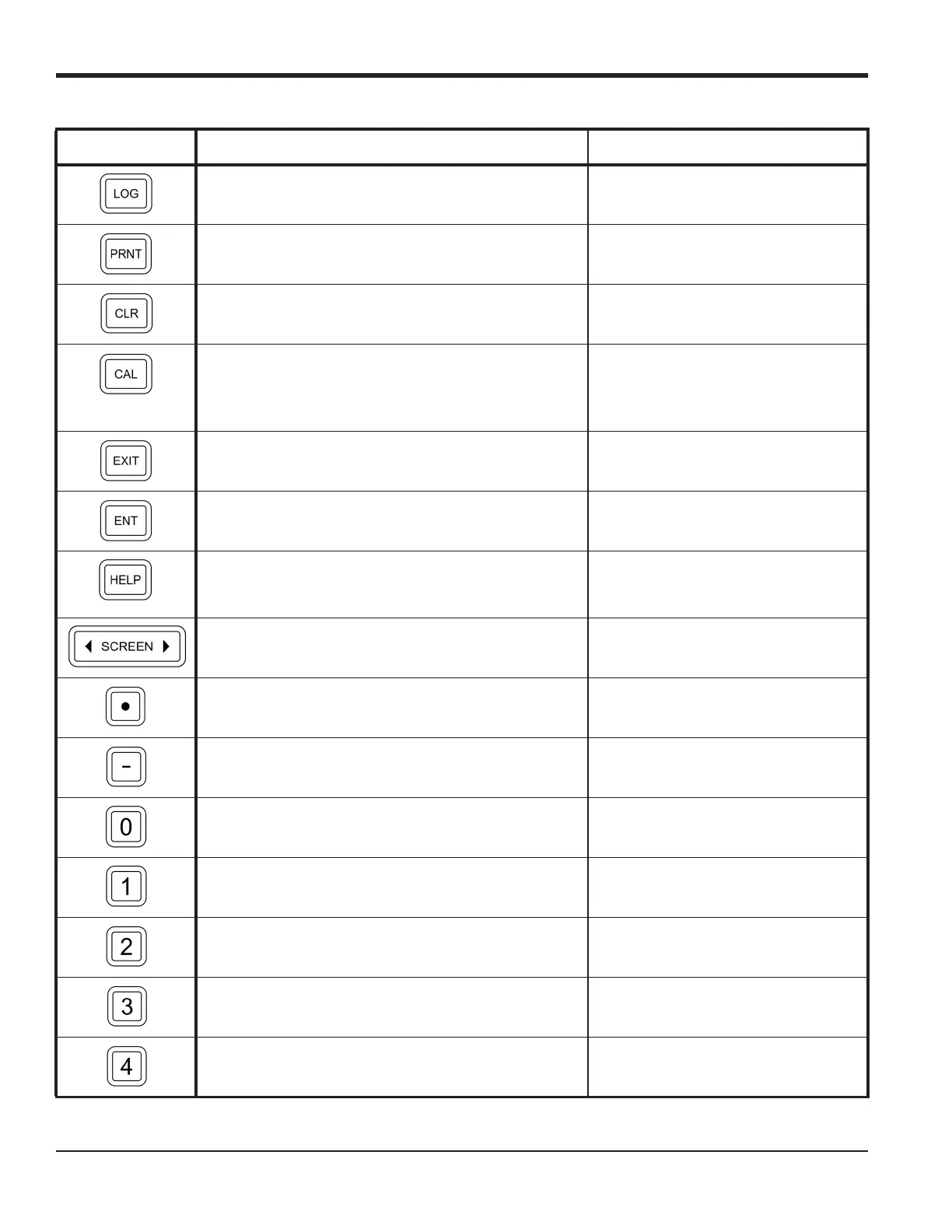

4 DigitalFlow™ GF868 Programming Manual (1-Channel)
Log Key - use to set up logs. See page 49 for details. Use to enter the letter X.
Print Key - use to print live measurements, log files and
signal arrays. See page 59 for details.
Use to enter the letter R.
Clear Key - use to reset totals and to delete site and log
files from the GF868 memory. See page 69 for details.
Use to enter the letter H.
Calibration Key - use to calibrate the analog inputs and
outputs and to test the alarm relays and the totalizer/fre-
quency outputs. See Chapter 1, Calibration, of the Ser-
vice Manual for details.
Use to enter the letter P.
Exit Key - use to move up one level in the user program
or to exit the user program. See this chapter for details.
Use to enter the letter J.
Enter Key - use to confirm the most recent input
information.
Use to enter the letter K.
Help Key - use to access the Model GF868’s con-
text-sensitive on-line help system. See the next section
for details.
Use to enter the letter I.
Screen Key - press the left side to select the left display
pane or the right side to select the right display pane.
Press the left side to enter letter V or
press the right side to enter letter W.
Decimal Point Key - press to enter a decimal point dur-
ing numeric entry.
Use to enter the letter Z.
Minus Key - use to enter a minus sign or a dash. Use to enter a space character.
Zero Key - use to enter the number 0. Use to enter the letter Y.
One Key - use to enter the number 1. Use to enter the letter S.
Two Key - use to enter the number 2. Use to enter the letter T.
Three Key - use to enter the number 3. Use to enter the letter U.
Four Key - use to enter the number 4. Use to enter the letter L.
Table 1: Model GF868 Key Functions (cont.)
Key Unshifted Function Shifted Function
