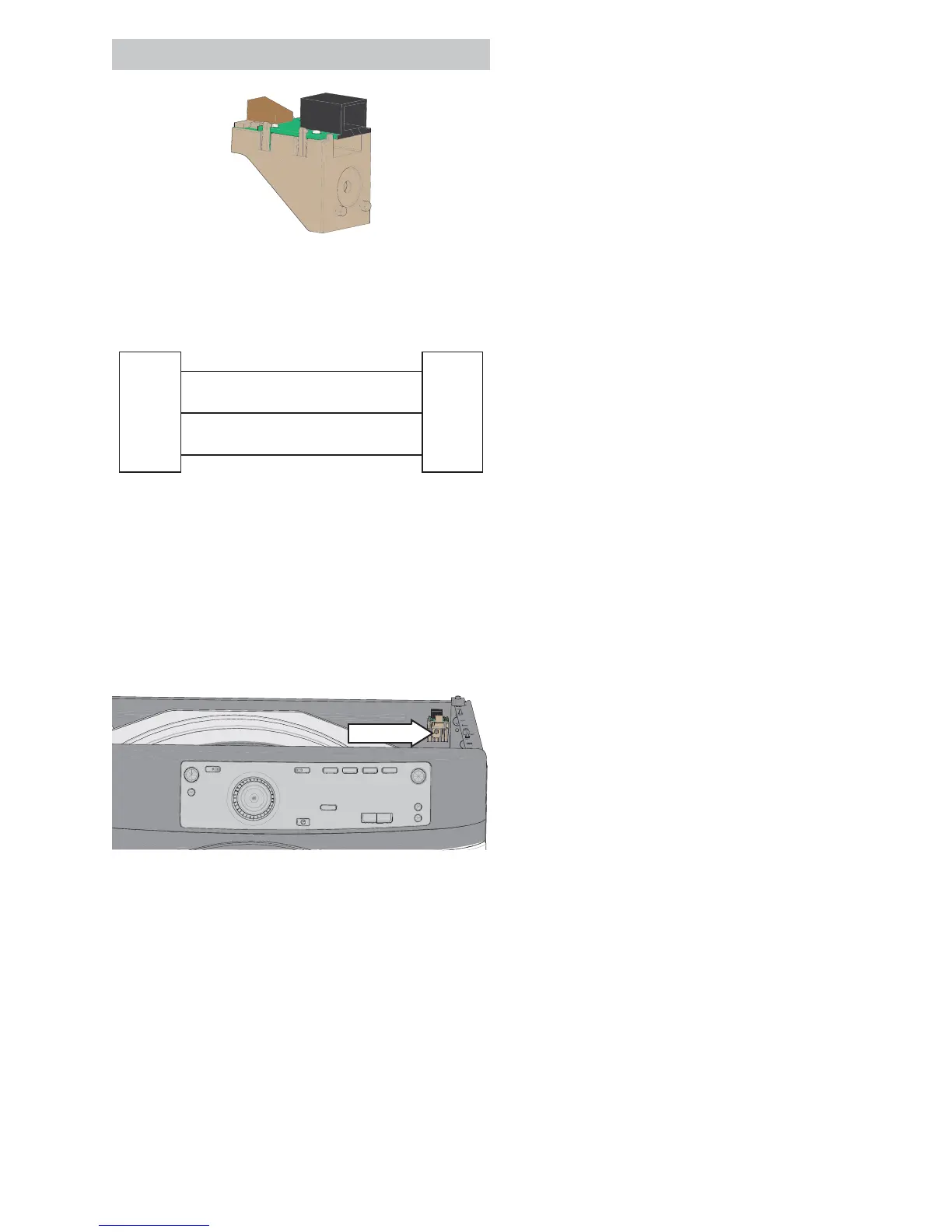

RJ45 Board
RJ45 Board Strip Circuit
RJ45
Board
J4-5
J4-6
J4-7
Main
Control
Board
J203-1
J203-2
J203-3
Navy
Yellow
Orange
+12 VDC
COMM
DC GND
+12 VDC
COMM
DC GND
RJ45 Board Removal
1. Disconnect power from unit.
2. Remove the control panel.
3. Remove the top panel.
4. Disconnect RJ45 board wire harness.
5. Remove the 1/4 in. hex RJ45 board mounting
screw.
1/4" hex
See Control Panel Removal on page 20.
See Top Panel Removal on page 24.
