GE GFDR485GF - Airflow Components; Grill Assembly and Trap Duct Removal

38

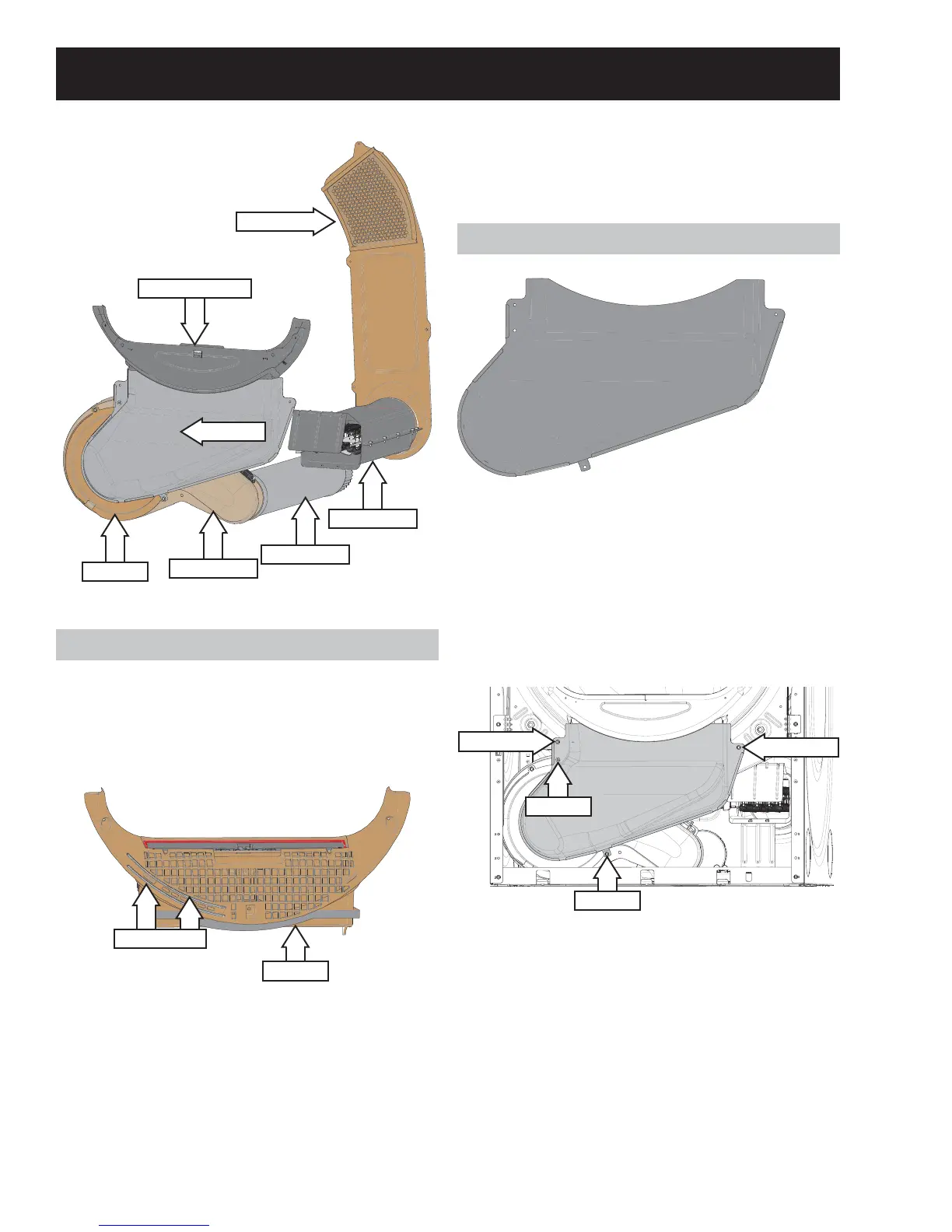

$LUÀRZ&RPSRQHQWV
Trap Duct
Grill Assembly
Inlet Ring
Fan Housing
Rear Duct
Exhaust Duct
Heater Assy
Grill Assembly
The grill assembly consist of a housing, lint door
components, and a mounting surface for the lint
¿OWHUDQGVHQVRUURGV7KHVHQVRUURGVDQGIHOWVHDO
are separate parts.
Felt Seal
Sensor Rods
Grill Assembly Removal
1. Disconnect power from the unit.
2. Remove the control panel.
3. Remove the front panel.
4. Disconnect the sensor harness connections.
5. Remove the three #2 Phillips screws located
inside the drum that hold the grill assembly in
place.
6. Pull assembly out of the front drum support.
Trap Duct
Trap Duct Removal
1. Disconnect power from the unit.
2. Remove the control panel.
3. Remove the front panel.
4. Remove the four Phillips screws that hold secure
the trap duct.
#2 Phillips
#2 Phillips
#2 Phillips
#2 Phillips
5. 3XOOWKHWUDSGXFWRXWRIWKHLQOHWULQJ¿UVWWKHQ
pull the trap duct down to remove.
See Control Panel Removal on page 20.
See Front Panel Removal on page 24.
See Control Panel Removal on page 20.
See Front Panel Removal on page 24.
