24

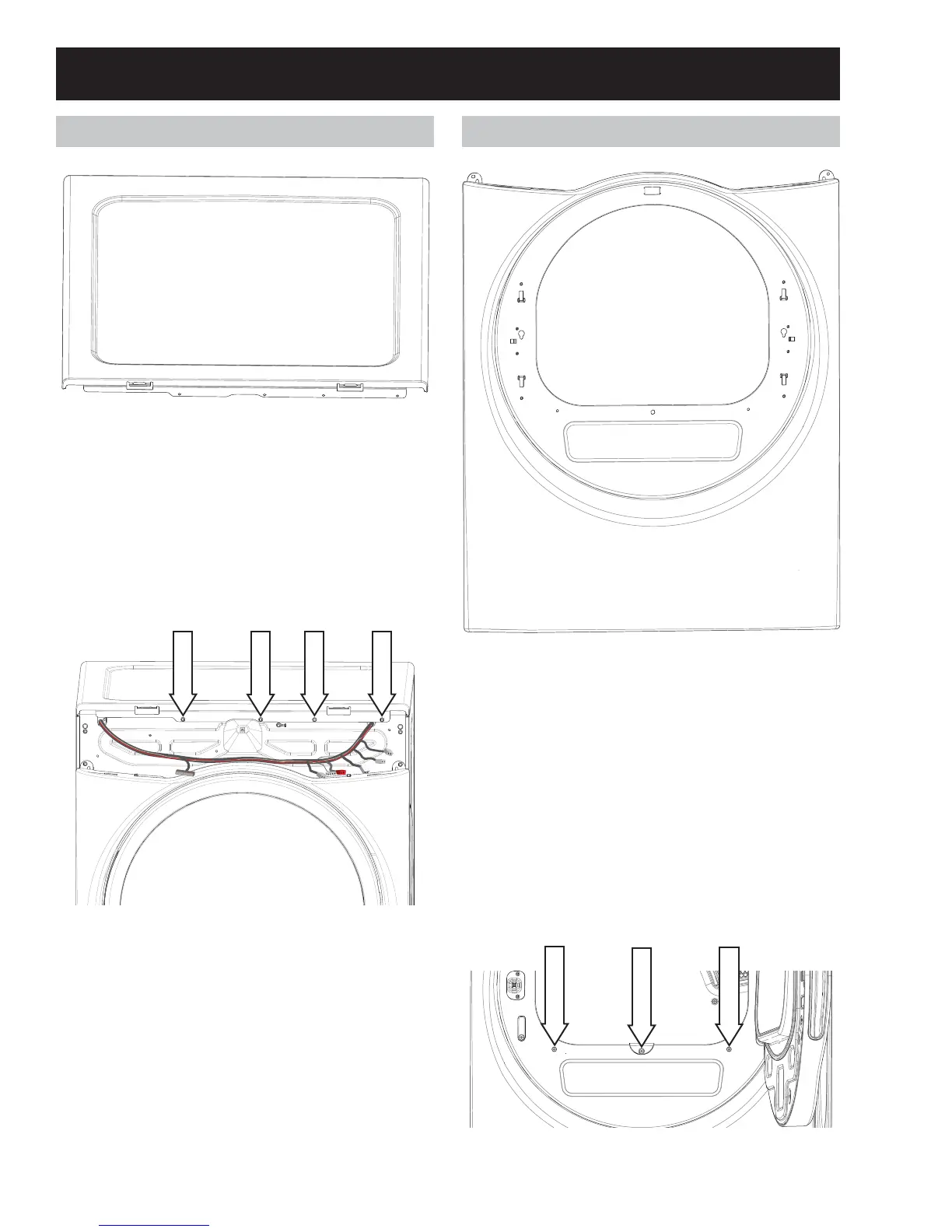

Top Panel
Top Panel Removal
1. Disconnect power from the unit.
2. Remove the control panel.
3. Remove the four 1/4 in. hex head top panel
screws.
1/4" hex
1/4" hex
1/4" hex
1/4" hex
4. Lift the front of the top panel up approximately
6 inches, then push the top panel backward
slightly, then lift the panel to remove.
Front Panel
Front Panel Removal
1. Disconnect power from unit.
2. Remove the door assembly.
NOTE: It is not necessary to remove the door un-
less the front panel is being replaced. However,
removing the door will reduce the weight of the
front panel.
3. Remove the three #2 Phillips screws located near
the lint trap.
#2 Phillips
#2 Phillips
#2 Phillips
Structural Components
See Top Panel Location on page 16.
See Control Panel Removal on page 20.
See Front Panel Location on page 16.
See Door Removal on page 28.
