29
C. Separate the door frame from the chrome
door cover. Set the door frame aside on a soft
DQGÀDWVXUIDFH

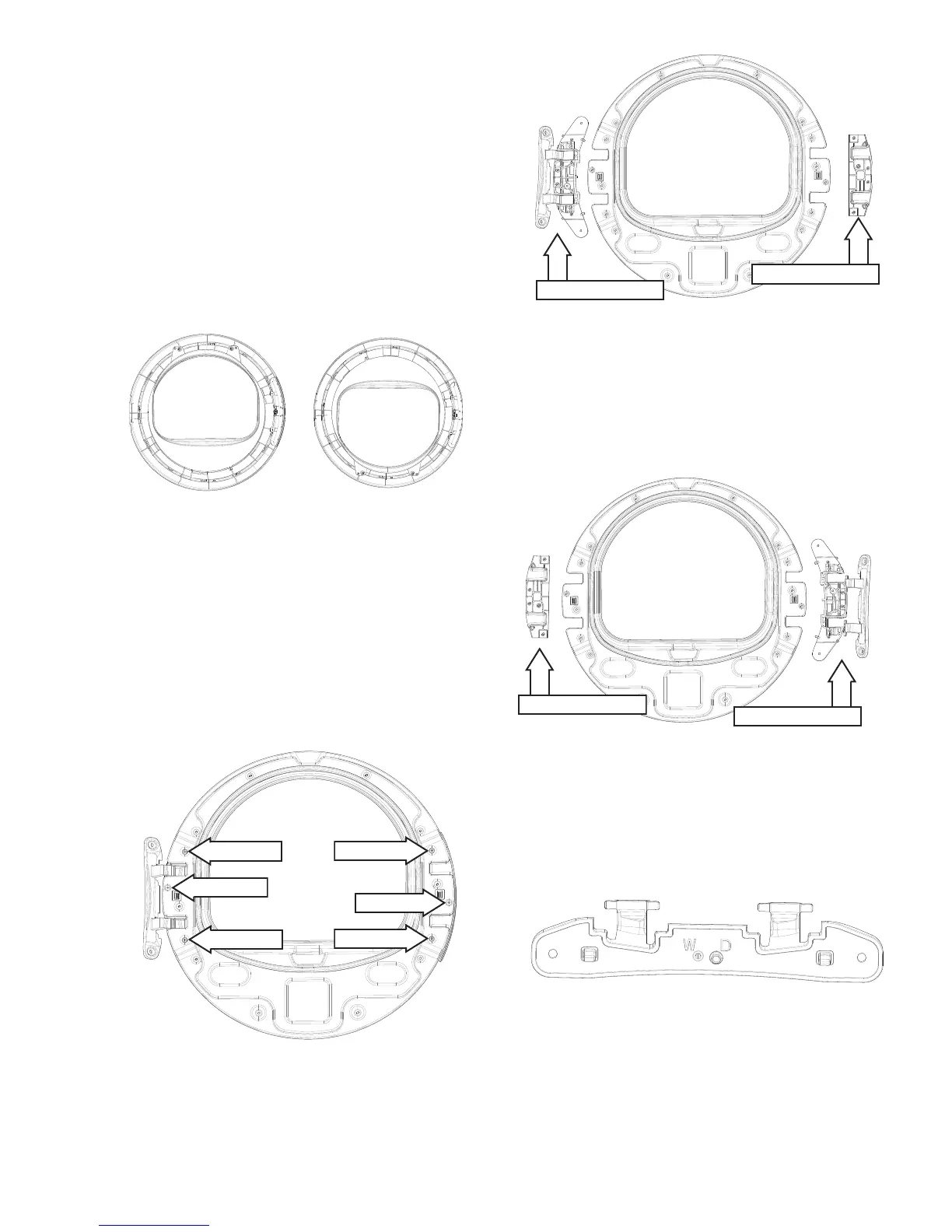

3. Relocate the door mask.
A. Place the chrome door cover on a soft and
ÀDWVXUIDFHVRWKDWWKHGRRUPDVNLVIDFLQJ
upwards.
B. Remove the two 1/4 in. hex screw that secure
door mask in place. Rotate the door mask 180
degrees and reinstall the screws to secure the
door mask.
Before
After
C. Relocation is complete, set the chrome door
cover aside.
4. Relocate the hinge assembly and handle spacer.
A. 3ODFHWKHGRRUIUDPHRQDVRIWDQGÀDW
surface so that the inner door seal is facing
upwards.
B. Remove the six #2 Phillips screws that secure
the hinge assembly and handle spacer.
C. Separate the hinge assembly and handle
spacer from the door frame.
D. Rotate the hinge assembly 180 degrees and
relocate on the opposite side of the door
frame.
E. Rotate the handle spacer 180 degrees and re-
locate on the opposite side of the door frame.
Components Reversed
F. Reinstall the hinge assembly and handle
spacer and screws.
5. Reassembly the door assembly.
6. Remove the pin screw from the hole marked "D"
and reinstall it in the hole labeled "W".
7. Reinstall the door assembly.
Handle Spacer
Hinge Assembly
Handle Assembly
Hinge Assembly
#2 Phillips
2 Phillips
#2 Phillips
#2 Phillips
#2 Phillips
#2 Phillips
