Basket and Tub Removal

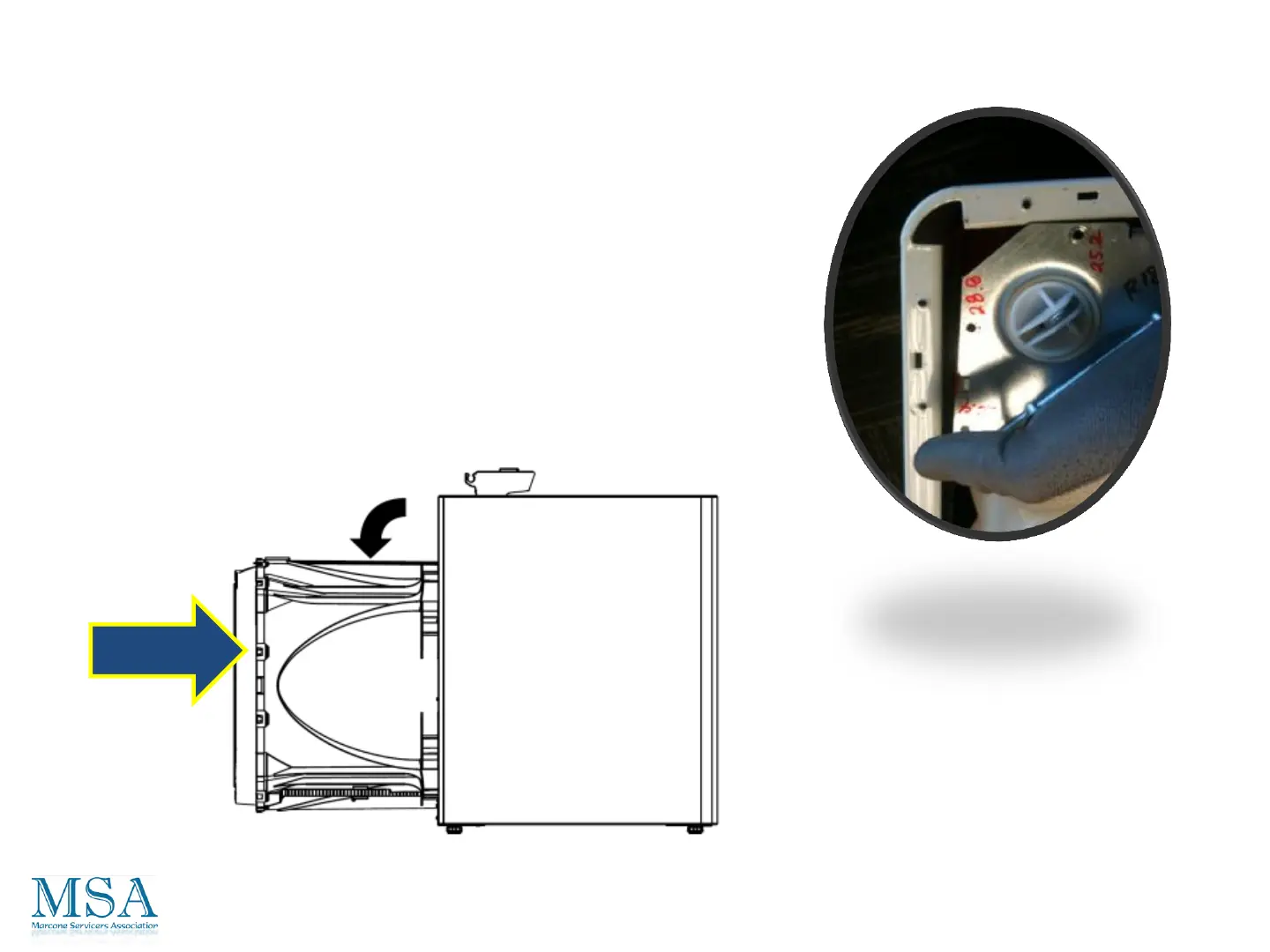

Remove the front rod supports and then roll

the tub back and out of the washer apron and

lay on its side.

Remove the Tub Cover by lifting the 12 snap

locks for the Tub

X 12
