GE GTWN7450DWW

To Next Page

To Previous Page

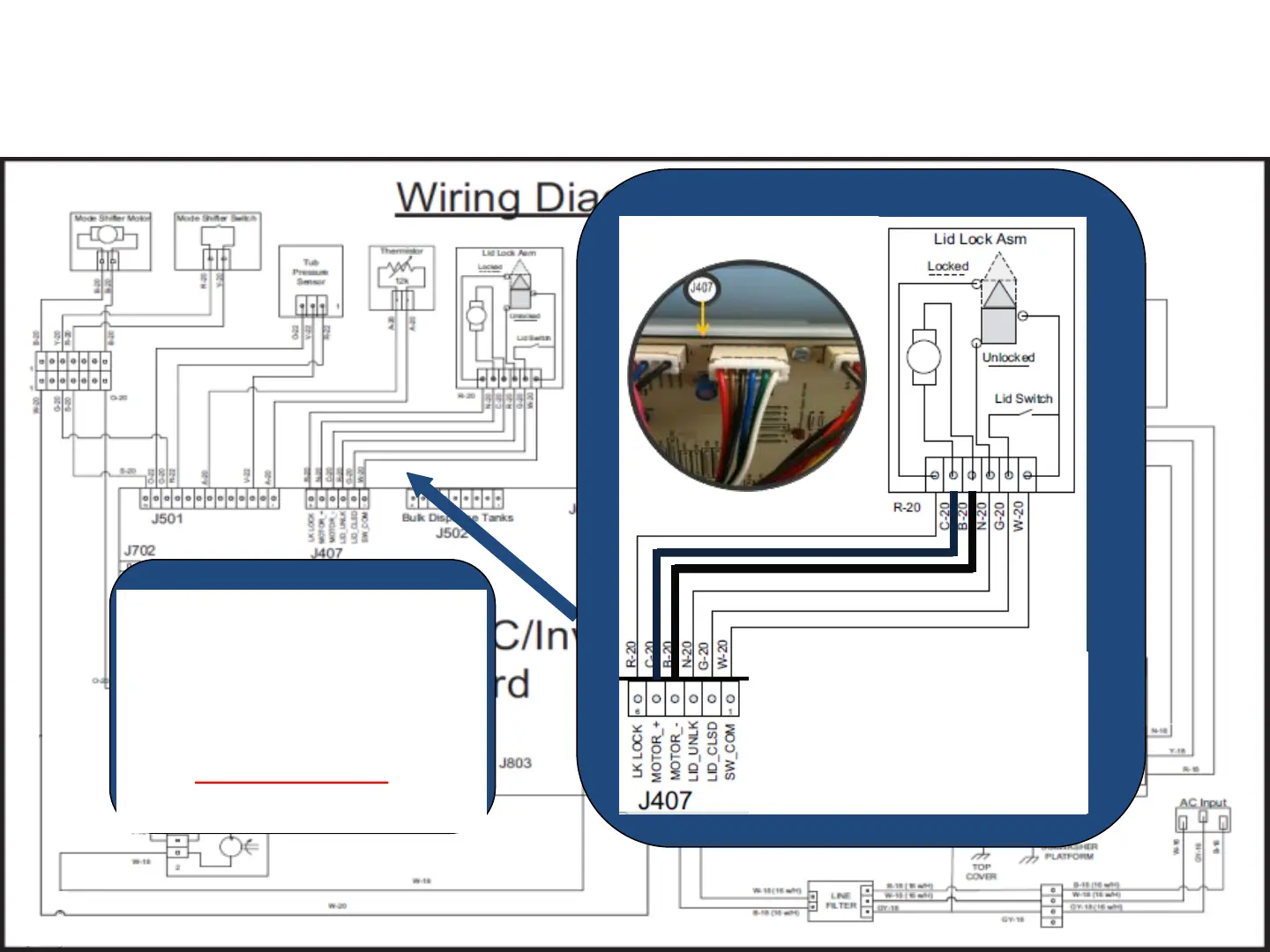

Check the resistance of

the Lid Lock Motor from

the J407 connecter BLACK

to BROWN wires. Should

read Approximately 39

ohms.

Diagnostics From The Board

Lid Lock Motor
