HOT LIPS TUBE SEALER Operator Manual 87-4500-07 AI 21
Operation 3
How to load the tubing 3.4
Instructions
1 Pull up the tube loading handle. This will cause the red safety flag to move up
and swing out of the way.
2 Place the tubing in between the sealer jaws on the stainless steel platform. All
clamps, plugs and so on must be outside the stainless steel platform
3 Release the tube loading handle. The red safety flag should rest on top of the
tubing.
4 Press and hold down the GO button. The jaws should start to close. Hold the
GO button down until the jaws have closed completely (indicated by a beep). If
the GO button is released prematurely, the jaws will open immediately and you
must start again from step 2.

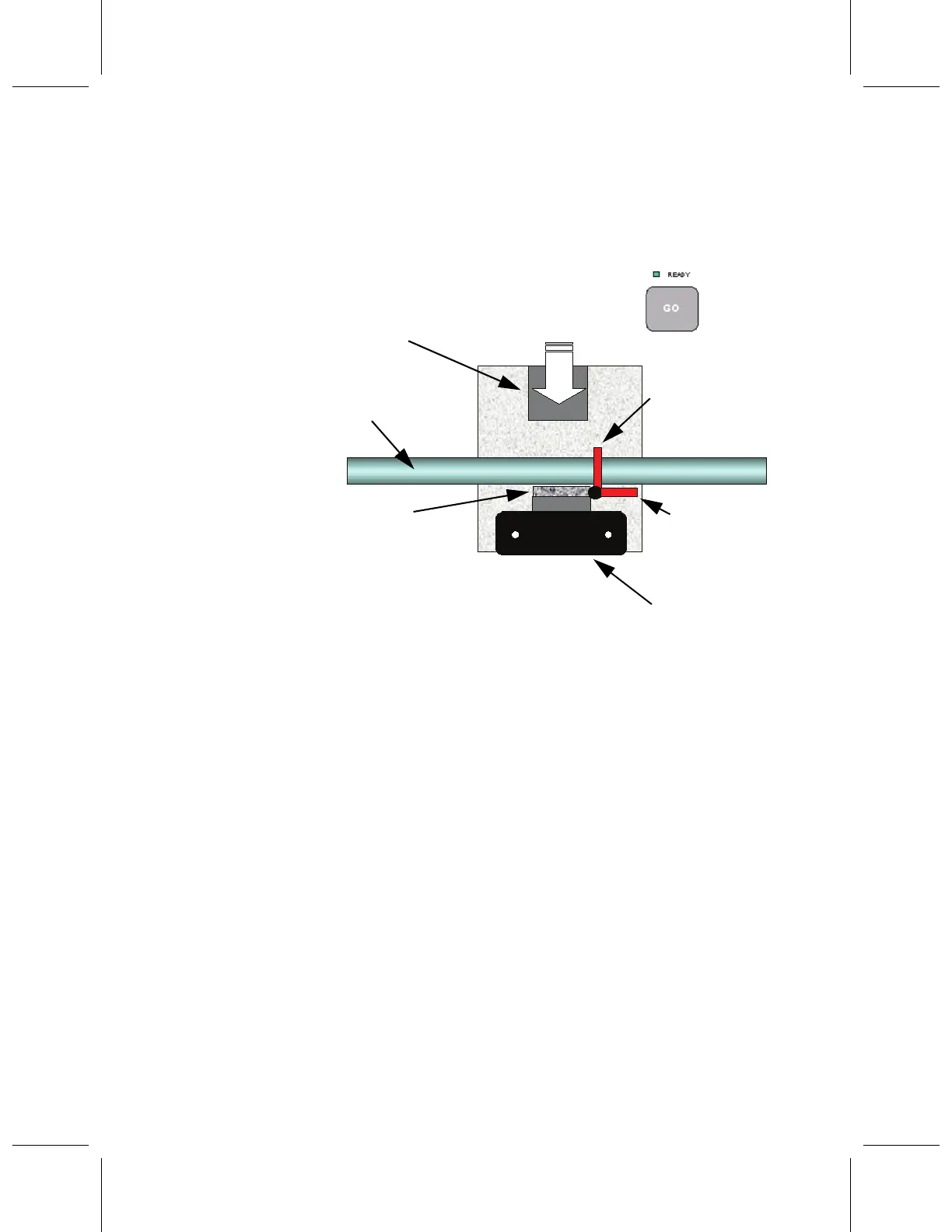

Moving jaw
Tubing to be sealed
Silicone rubber
retention pads
Seal position (on top of
tubing)
Load (Swung out)
position
Pull up tube loading
position.
safety flag to the load
handle to move red
