GE iBox - Page 168

iBox/iBox Kit
Installation and Maintenance Guide
GE Grid Solutions
168
994-0047-5.10-4 GE Information
Connecting to a iBox

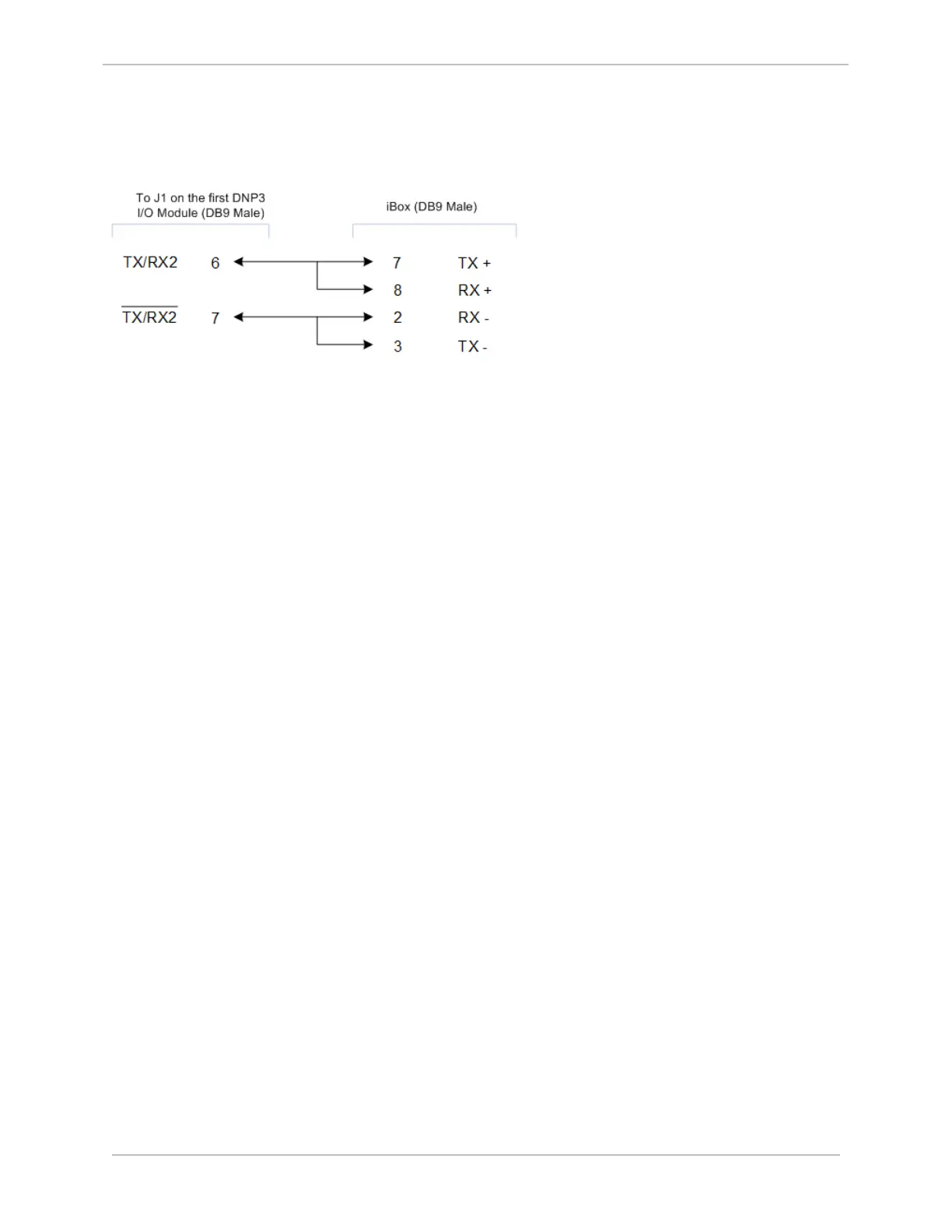

The cable from an iBox RTU Master to the first DNP I/O Module (GE Part Number 977-0502) has the
following connections and jumpers:
Note: Make sure the iBox RTU Master is configured for RS-485, 2W mode.
