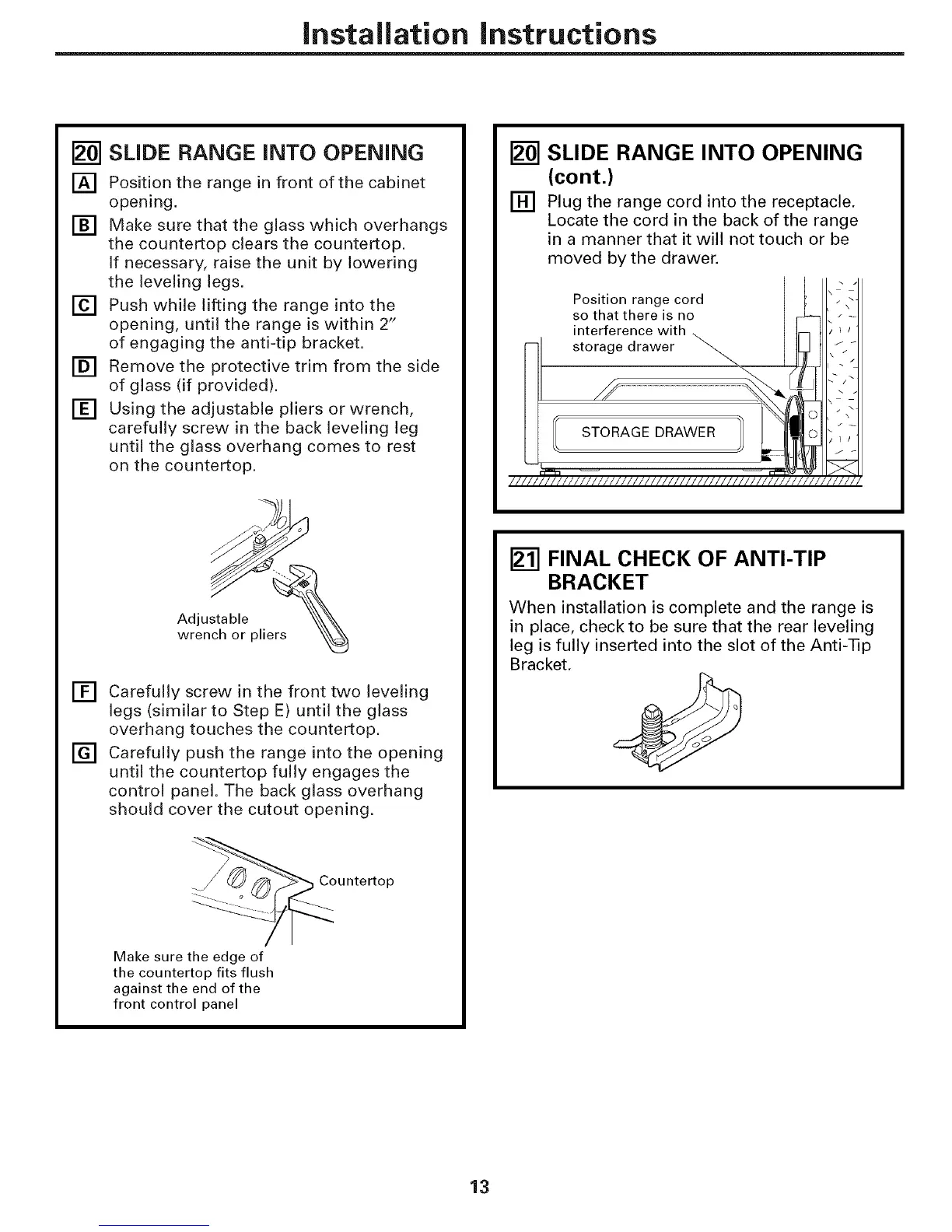

installation instructions
[]
[]
SLIDE RANGE iNTO OPENING
Position the range in front of the cabinet
opening.
[] Make sure that the glass which overhangs
the countertop clears the countertop.
If necessary, raise the unit by lowering
the leveling legs.
[] Push while lifting the range into the
opening, until the range is within 2"
of engaging the anti-tip bracket.
[] Remove the protective trim from the side
of glass (if provided).
[] Using the adjustable pliers or wrench,
carefully screw in the back leveling leg
until the glass overhang comes to rest
on the countertop.
[] Carefully screw in the front two leveling
legs (similar to Step E) until the glass
overhang touches the countertop.
[] Carefully push the range into the opening
until the countertop fully engages the
control panel. The back glass overhang
should cover the cutout opening.
Counte_op
Make sure the edge of
the countertop fits flush
against the end of the
front control panel
SLIDE RANGE INTO OPENING
(cont.)
[]
moved by the drawer.
Position range cord
so that there is no
interference with
fl storage drawer _
///////////////////////////////////////////////
Plug the range cord into the receptacle.
Locate the cord in the back of the range
in a manner that it will not touch or be
\
. \
\
t I /
\ /
\
/11
/// /////
I_1 FINAL CHECK OF ANTI-TIP
BRACKET
When installation is complete and the range is
in place, check to be sure that the rear leveling
leg is fully inserted into the slot of the Anti-Tip
Bracket.
