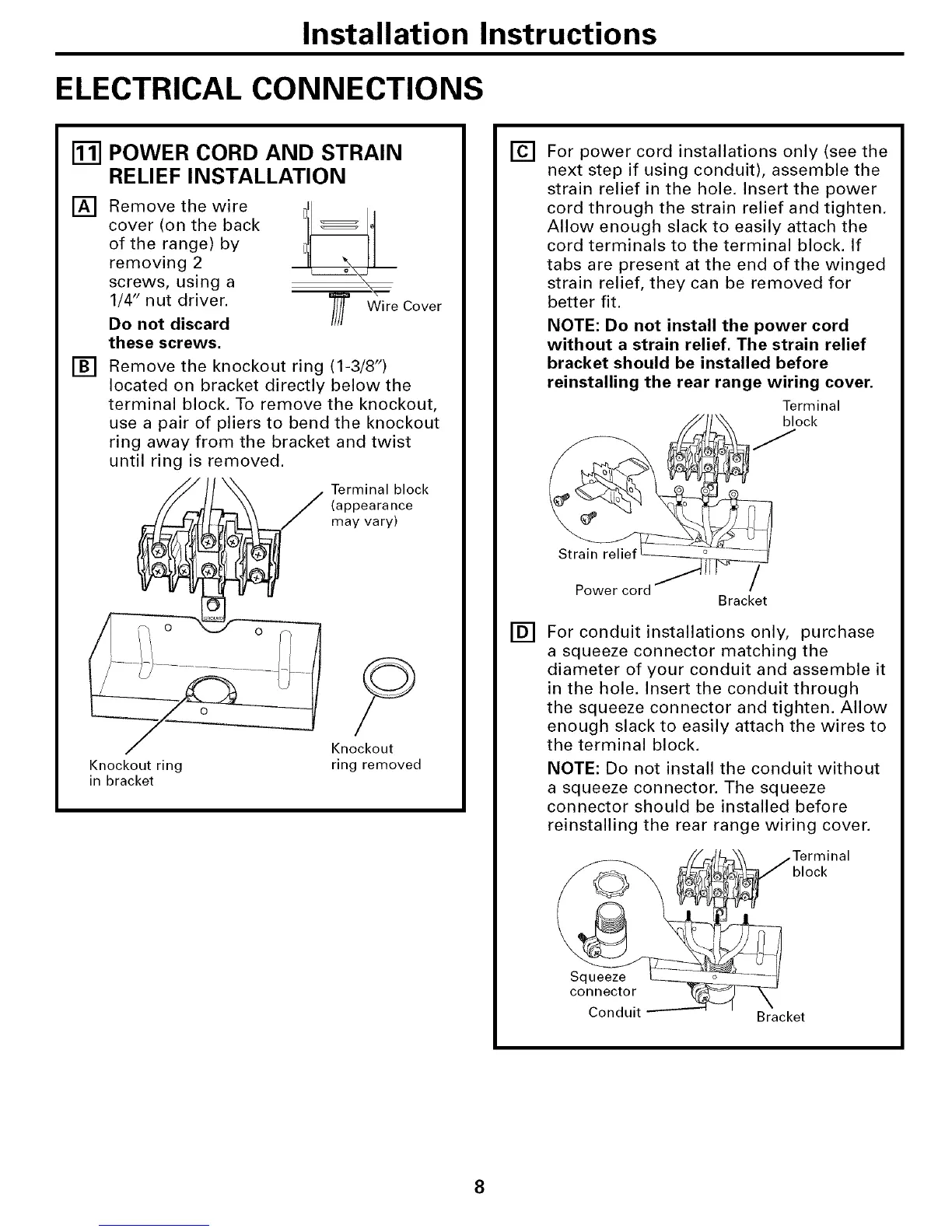

Installation Instructions
ELECTRICAL CONNECTIONS
[]
[]
[]
POWER CORD AND STRAIN
RELIEF INSTALLATION
Remove the wire
cover (on the back
of the range) by
removing 2
screws, using a
1/4" nut driver.
Do not discard
these screws,
eOover
Remove the knockout ring (1-3/8")
located on bracket directly below the
terminal block. To remove the knockout,
use a pair of pliers to bend the knockout
ring away from the bracket and twist
until ring is removed.
Terminal block
(appearance
may vary)
Knockout ring
in bracket
Knockout
ring removed
[]
[]
For power cord installations only (see the
next step if using conduit), assemble the
strain relief in the hole. Insert the power
cord through the strain relief and tighten.
Allow enough slack to easily attach the
cord terminals to the terminal block. If
tabs are present at the end of the winged
strain relief, they can be removed for
better fit.
NOTE: Do not install the power cord
without a strain relief. The strain relief
bracket should be installed before
reinstalling the rear range wiring cover.
Terminal
_ __o,_ block
Bracket
For conduit installations only, purchase
a squeeze connector matching the
diameter of your conduit and assemble it
in the hole. Insert the conduit through
the squeeze connector and tighten. Allow
enough slack to easily attach the wires to
the terminal block.
NOTE: Do not install the conduit without
a squeeze connector. The squeeze
connector should be installed before
reinstalling the rear range wiring cover.
block
Squeeze
connector
Conduit
Bracket
8
