GE JK5000 Technical Service Guide

44
GE Title or job number
11/26/2013
Cooling fans T012 ERC f-codes F96 thru F99
F96 indicates the UPPER fan is running slow.
F97 indicates the LOWER fan is running slow.
F98 indicates the UPPER fan is running too fast.
F99 indicates the LOWER fan is running too fast.

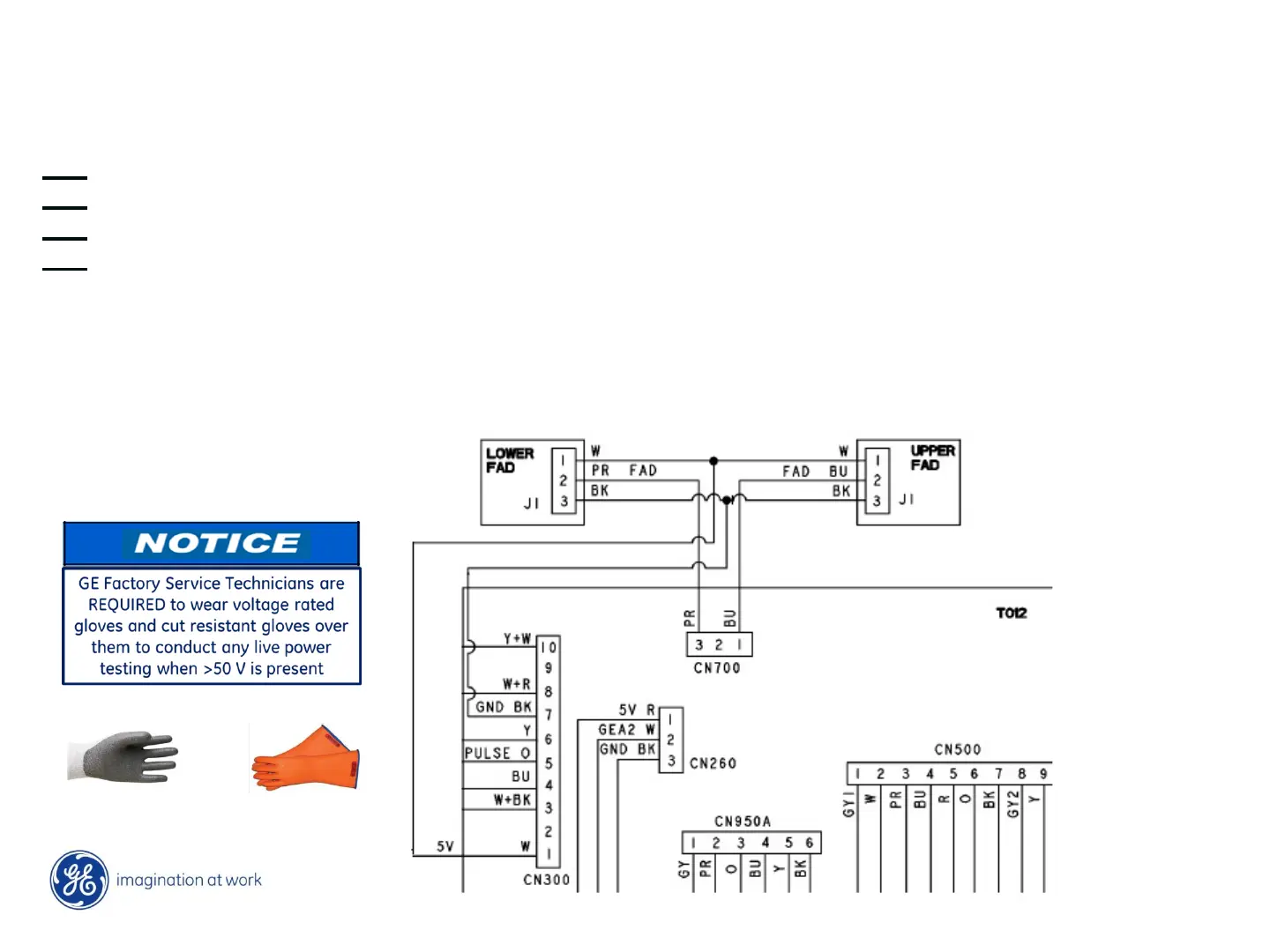

The DC supply voltage to cooling fan boards can be checked on ERC at CN300 pin 1 W to pin 7
BK. Feedback will be checked from pin 7 of CN300 BK to pin 1 of CN700 Bu for UPPER.
LOWER will be checked from pin 7 of CN300 BK to pin 3 of CN700 PR.
