Controls – T012 is used on all models EXCEPT –
JK/JT1000, (T09) PT7050, PT9050,PT7550,and
PT9550 (Machine Control)

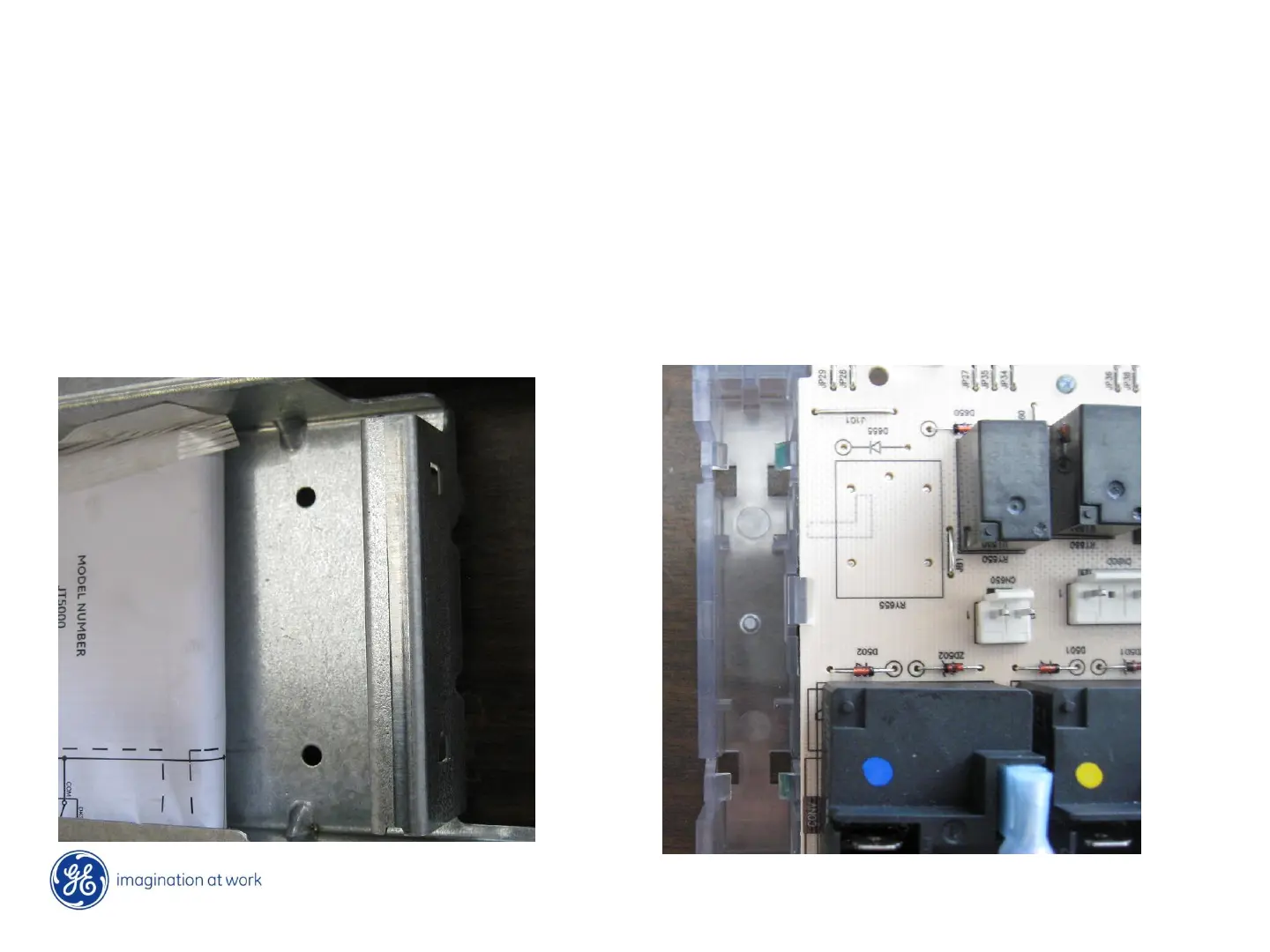

Control bracket for all T012 controls- On glass
touch units all 4 clips are accessible from front
or rear. On tactile units the clips closest to ERC
are not seen from front.
To remove ERC from control bracket- There are
4 plastic clips on each side of ERC they can be
accessed from the front or rear of control
bracket.
