GE JK5000 Technical Service Guide

53
GE Title or job number
11/26/2013

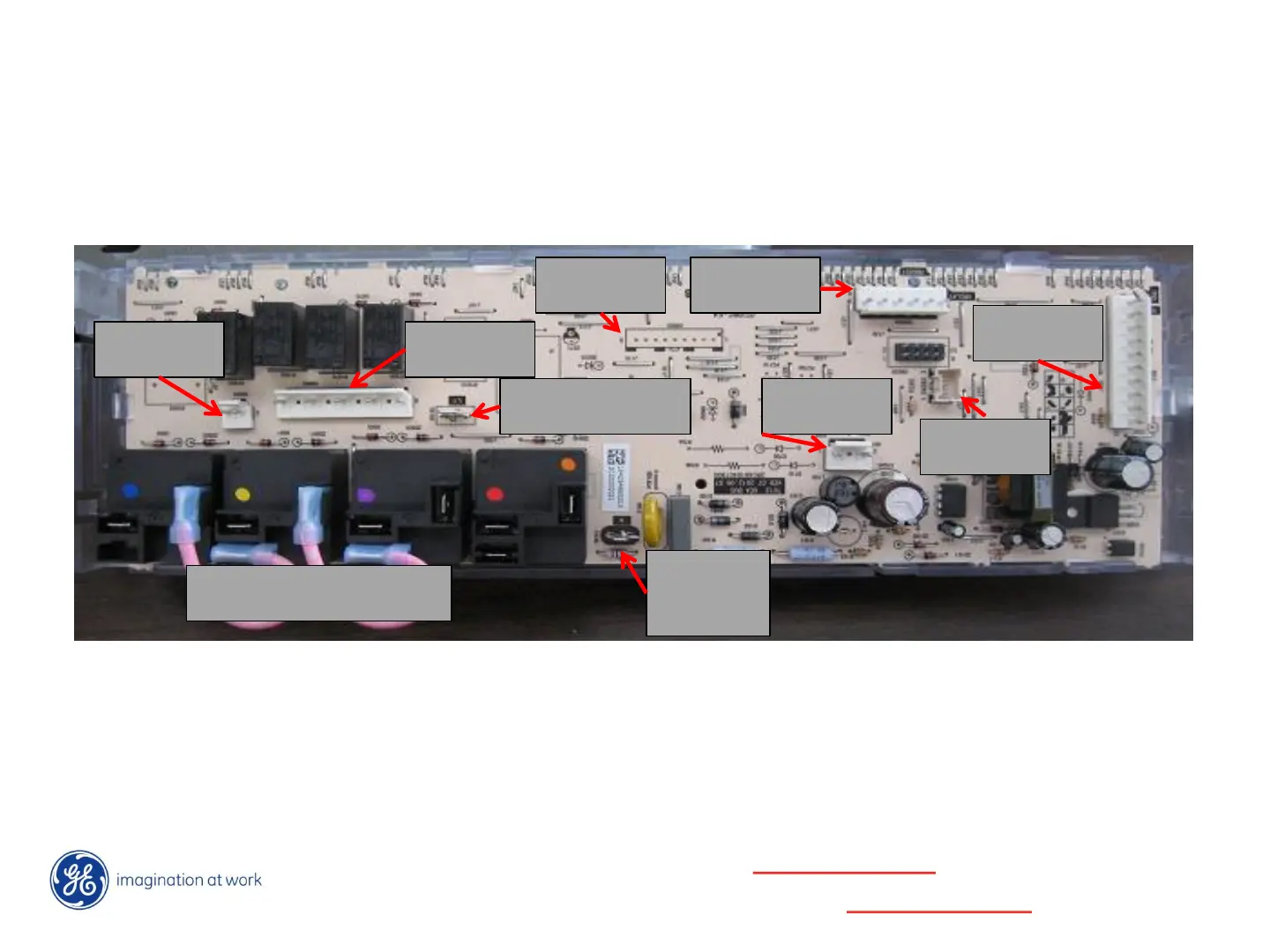

JT5000 T012 Glass touch – single
shown
CN950
CN600 CN650
CN700
CN260
CN300
TB101
Neutral
TB100 - L1
Element relays
Conv. Bake Broil DLB
CN500
CN300- Oven sensor and door latch switches
CN650- Convection fan motor
CN600- Door lock motor, cavity lights, cooling fan motor(s)
CN950- Glass touch (if equipped)*
CN500- Control signal to lower oven relay board (if equipped)*
CN700- Fan motor FAD board(s)
CN260- RJ45,
TB100- L1 input to board
TB101- Neutral input to board
Element relays-
Convection- Supplies L1 to one side of convection element
Bake- Supplies L1 to one side of bake element
Broil- Supplies L1 to one side of broil element
DLB- Supplies L2 to ALL elements
(*) These connectors will not be present on board if unit is not
equipped Back to definitions.
Back to T of C
