64
GE Title or job number
11/26/2013
L1 N

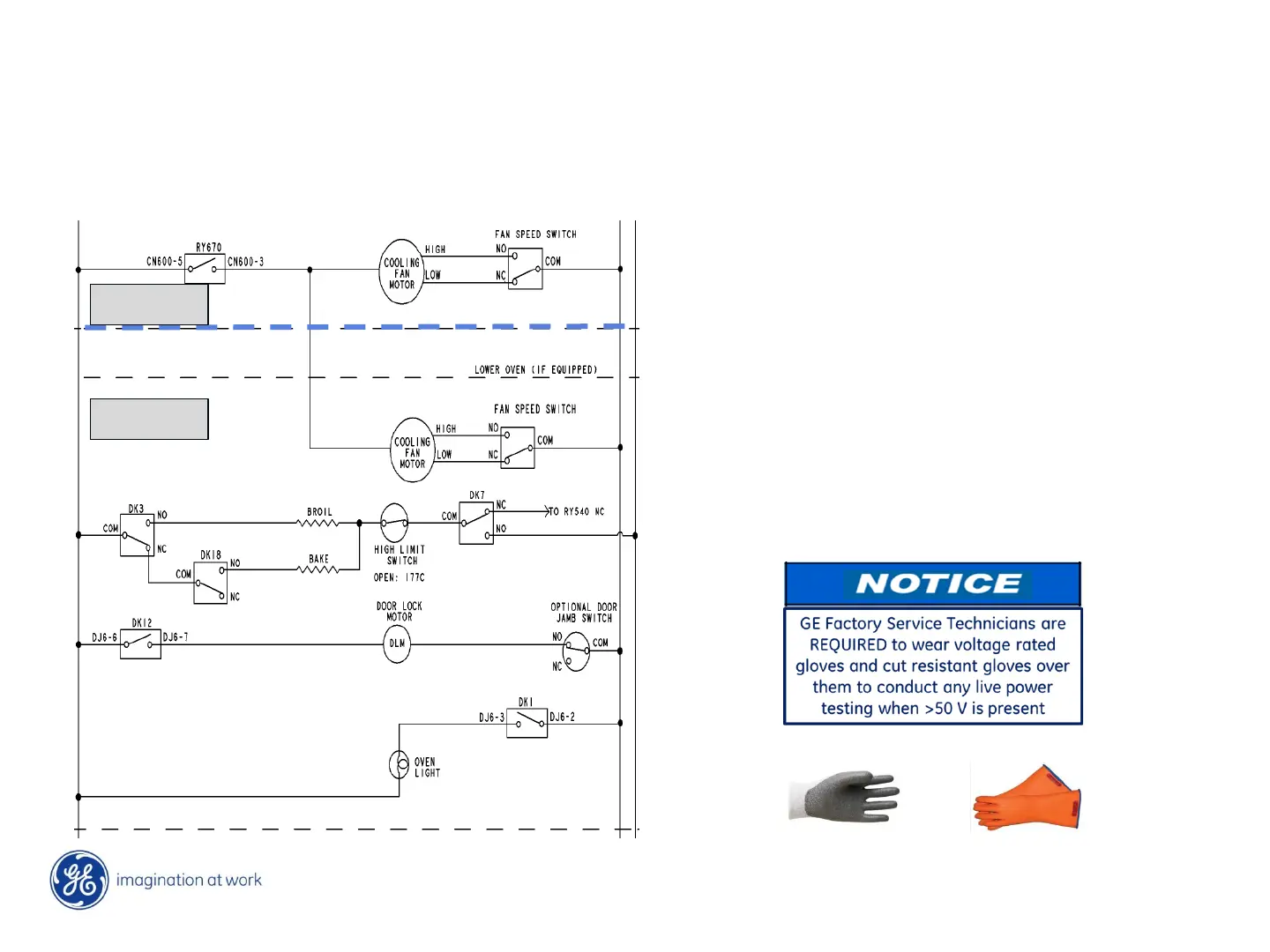

Upper oven circuit
Lower oven circuit
Connections are all located on LOWER
OVEN RELAY BOARD (daughter board)
NOTE: Both COOLING FAN MOTORS come
on together.
L2
Troubleshooting – lower oven circuits
