GE JK5000 Technical Service Guide

69
GE Title or job number
11/26/2013
J102 Neutral
Latch motor - J801-6 GREY to J102
WHITE approx. 1.8KΩ
Lights -J801-1 BLACK to J102 WHITE
approx. 15Ω
Cooling fan motor HIGH - J801-3 BK/W
to J102 WHITE approx. 18Ω
Cooling fan motor LOW - J801-2 RED/W
to J102 WHITE approx. 25Ω
Convection fan motor CW - J801- 5 RED
to J102 WHITE approx. 300Ω
Convection fan motor CCW - J801- 4
BLUE/W to J102 WHITE approx. 300Ω

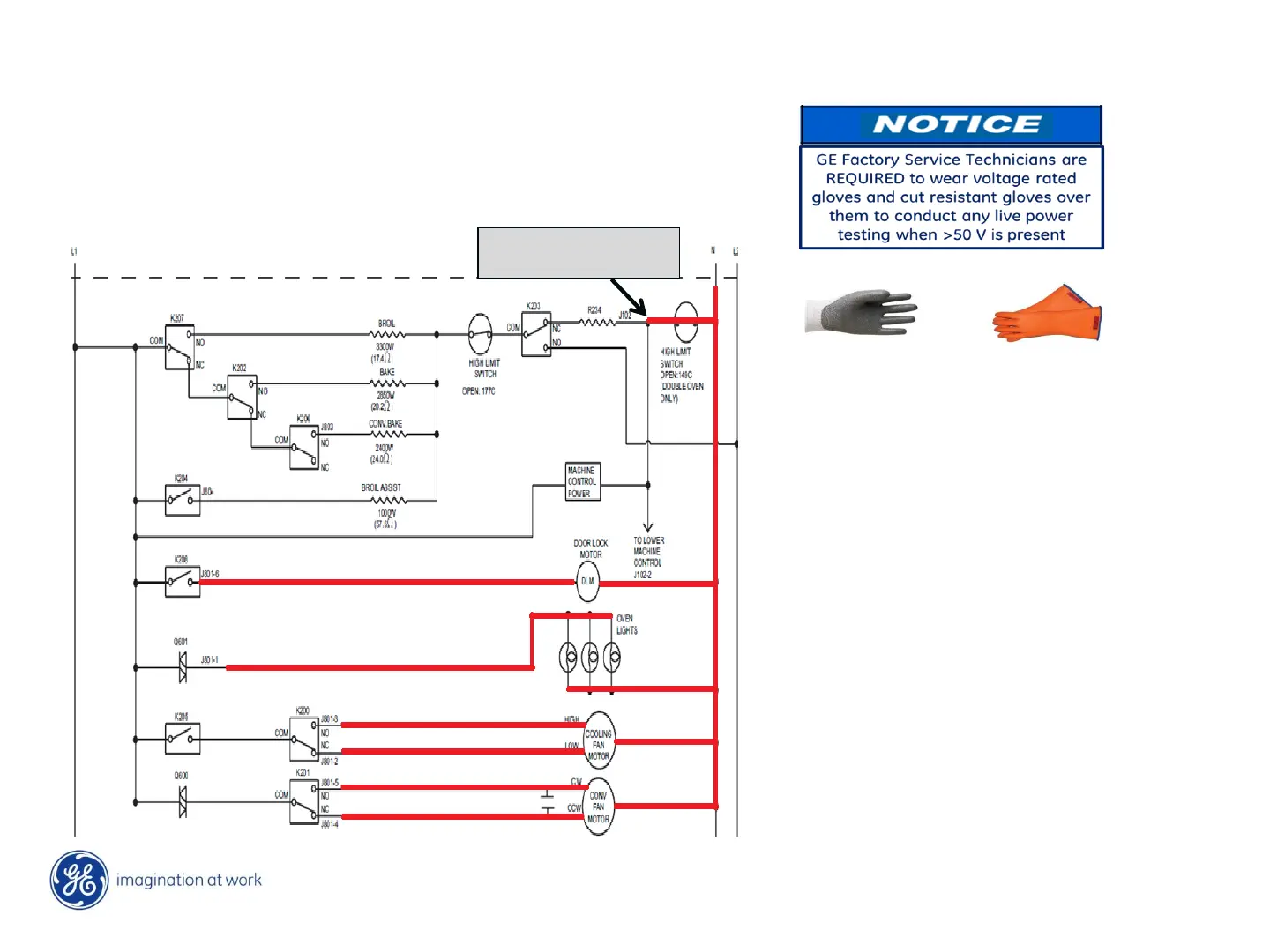

Troubleshooting- Upper or single convection -
120 volt circuits

GE JK5000 Specifications

General

Brand	GE
Model	JK5000
Category	Oven
Language	English
