Peripherals Installation
LOGIQ V3/V5/V5 Expert – Basic Service Manual 3-39
5726264-100 English Rev.8
3-7-3-7 USB HDD Installation
3-7-3-7-1 Tools
No special tools needed.
3-7-3-7-2 Manpower
One person 1 min.
3-7-3-7-3 Preparations
1. Unpack the USB HDD.
2. Ensure no physical damage.
3-7-3-7-4 Installation Procedure
1. Connect the USB HDD to the USB port on the LOGIQ V3/
V5/V5 Expert system.

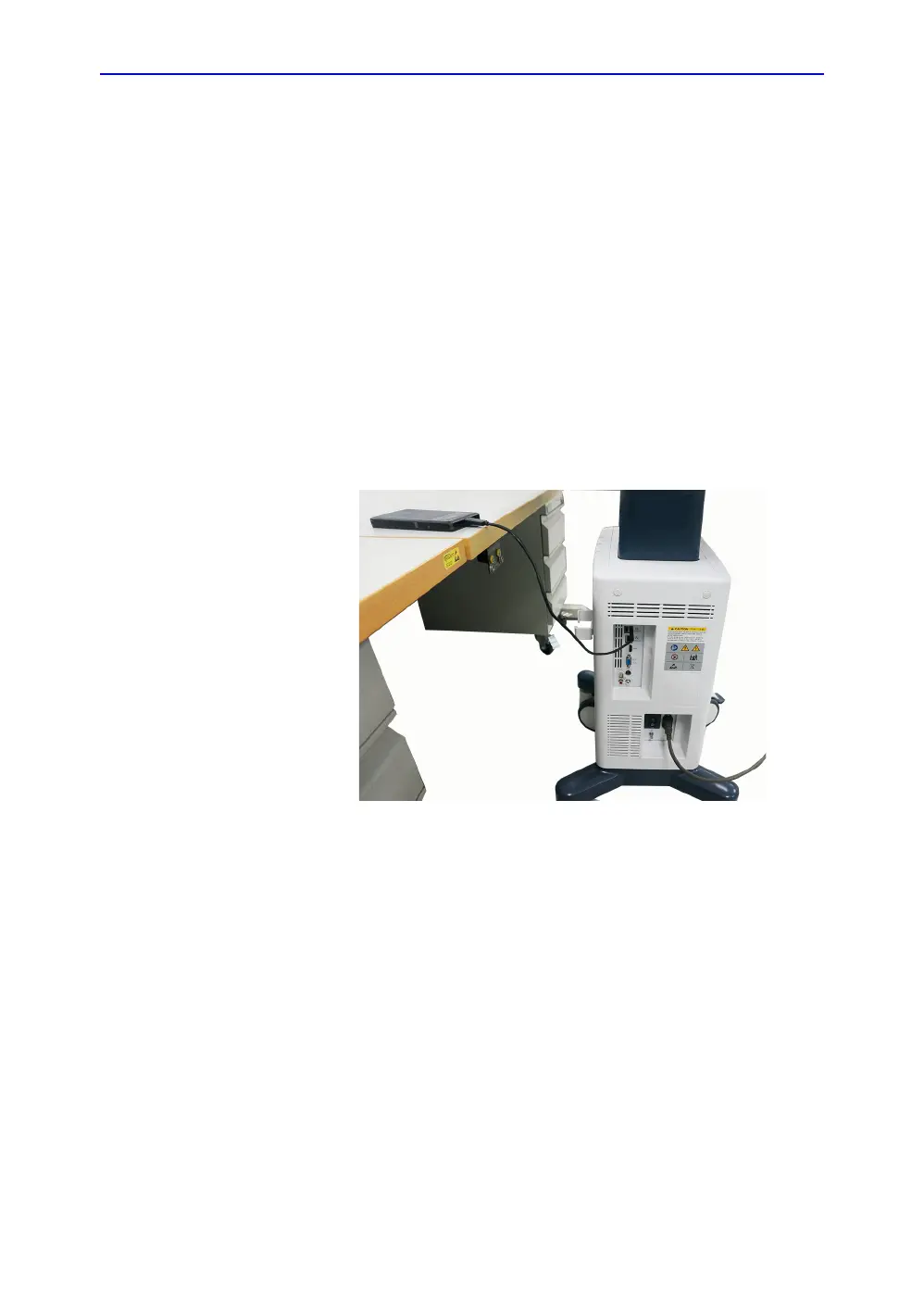

Figure 3-27. Connect HDD to the system
To Next Page
